Pass & Seymour® 2628W

Share Print

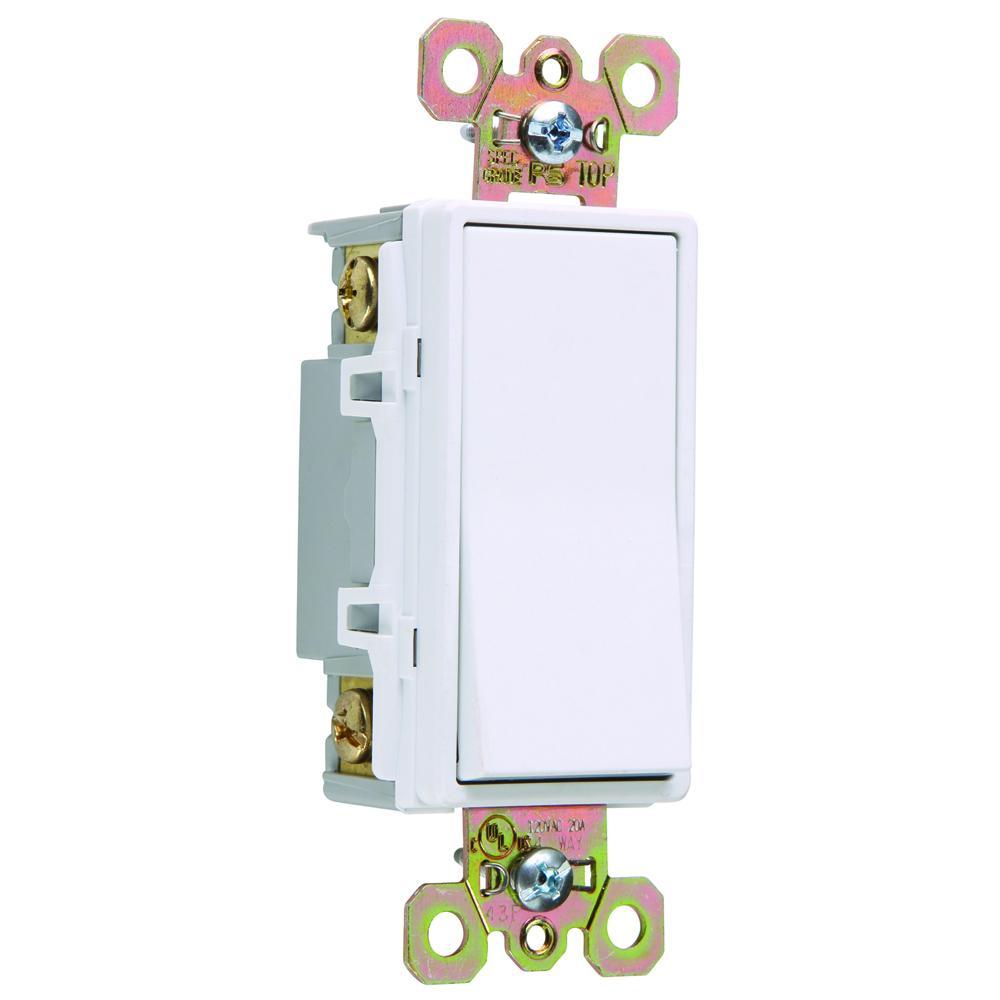

Pass & Seymour® 2628W 4-Way Illuminated Decorator Switch, 120 VAC, 20 A, 4 W Power Rating

  • MPN: 2628W

  • IESPN: 201859

  • UPC: 785007859195

  • Min Order Qty: 1

  • Quantity Interval: 1

  • Sold as: EACH

    • Availability: loading

    • Branch Availability
Pass & Seymour® 2628W

Pass & Seymour® Decorator Switch, 4-Way Illuminated, 120 VAC, 20 A, 4 W Power, 20 A at 120 VAC Contact, 4 Pole, Paddle/Rocker Actuator, Bare Insulation, Wall Mounting, Back/Side Wire/Threaded Terminal, 50000 Cycles Operating Cycles, Polycarbonate, White, Environmental Conditions: -40 to 115 deg C Temperature, 4.2 in H x 1.3 in W x 1.06 in D Dimensions

Type      4-Way Illuminated
Voltage Rating      120 VAC
Amperage Rating      20 A
Power Rating      4 W
Contact Rating      20 A at 120 VAC
Number of Poles      4
Actuator      Paddle/Rocker
Insulation      Bare
Mounting      Wall
Terminal Type      Back/Side Wire/Threaded
Operating Cycles      50000 Cycles
Material      Polycarbonate
Color      White
Environmental Conditions      -40 to 115 deg C Temperature
Dimensions      4.2 in H x 1.3 in W x 1.06 in D
  • Impact-resistant polycarb back body and frame
  • Cushioned thermoplastic paddle assures smooth, quiet, long term operation
  • Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts
  • Internal screw-pressure-plate back and side wire capability for easy installation with 14 - 10 stranded or solid copper/copper clad wire
  • Terminals made of high conductivity brass and serrated for maximum wire gripping
  • Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance
  • Integral auto-ground clip for positive ground to metal boxes
  • Tri-drive ground, terminal, and mounting screws
  • All terminal screws backed out, ready-to-install
