Appleton® liquidtight strain relief cord and cable connectors are available in straight or 90 deg, aluminum or steel construction to meet the requirements of rugged service on all types of equipment and in all non-hazardous areas. They provide a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable. Ideal for use in wet or dry locations, they seal electrical connections against dust and dirt, oil, water or other atmosphere containing moisture.

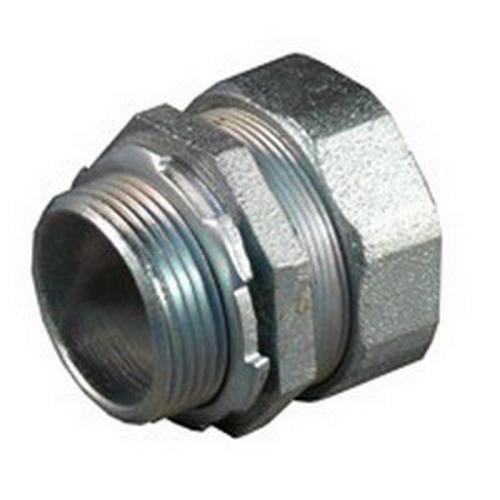

Appleton® Straight Cord Connector, Strain Relief, Series: CG Series, 3/4 in, Cable Openings: 1/2 to 5/8 in, Threaded Hub, Machined Steel, Natural, Pink Label, 1-1/4 in W

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Appleton_CG-0625_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Appleton_CG-0625_Specification_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Appleton_CLB1010-MT_Warranty.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Appleton_CLB1010-MT_Warranty.pdf

• Color coded identification label clearly states the catalog number and minimum/maximum cable diameter range for which the connector is designed
• Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord
• Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion
• Large aluminum connectors 1-1/2 in thru 4 in and all steel connectors are constructed with hex head cap
• For particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectors
• Silicone free
