EATON's 10250T line of 30.5 mm pushbuttons features a heavy duty zinc die cast construction. reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.

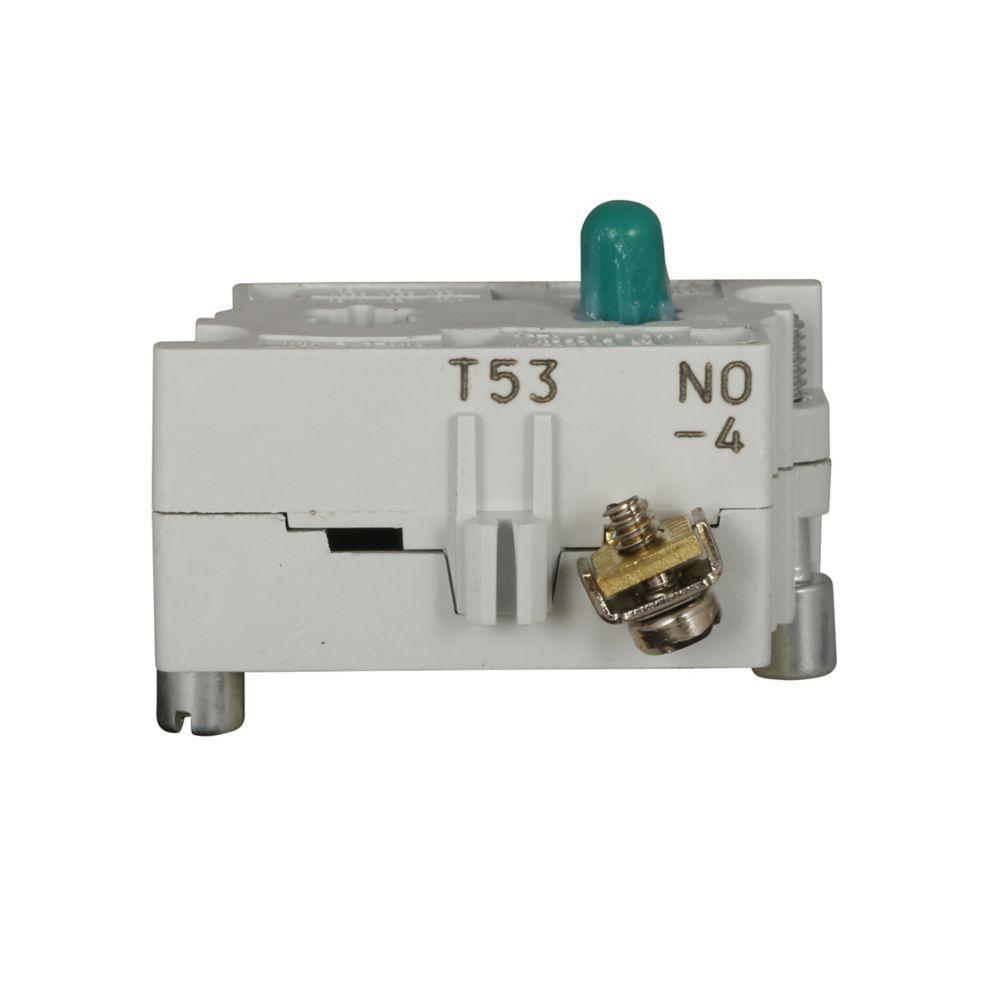

EATON Contact Block, Heavy Duty, Series: 10250T, 30.5 mm Size, 1NO Contact Configuration, 10 A at 600 VAC Contact, Silver Contact, NEMA 3/3R/4/4X/12/13/IP65, Saddle Clamp Terminal, Stack Mounting, Thermoplastic, Green/Red, 1.9 in L x 1.3 in W x 2.1 in H Dimensions

• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1515127694199.pdf
• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/10964/ID-BRO-v1-CA08100008E.pdf
• Catalog https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Cutler_Hammer_10250T53_Catalog.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520588301663.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/10964/ID-SPE-v1-10250T53.pdf
• Technical Bulletin https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1485504993536.pdf
• Technical Bulletin http://www.eaton.com/ecm/idcplg?IdcService=GET_FILE&allowInterrupt=1&RevisionSelectionMethod=LatestReleased&noSaveAs=0&Rendition=Primary&dDocName=PA04702002E

• EATON contact blocks feature enclosed silver contacts with pointed reliability nibs
• To ensure reliable switching, these nibs bite through oxide, which can form on silver contacts, eliminating the need for expensive logic level blocks for most application
• The same durable construction is also available with the corrosive-resistant E34 line of pushbuttons
• Stack up to six blocks (six circuits) unless otherwise noted
• 10 A at 600 VAC, 5 A at 250 VDC contact rating
• Pressure terminal
• 30.5 mm Dia mounting hole
• For pushbutton control station
