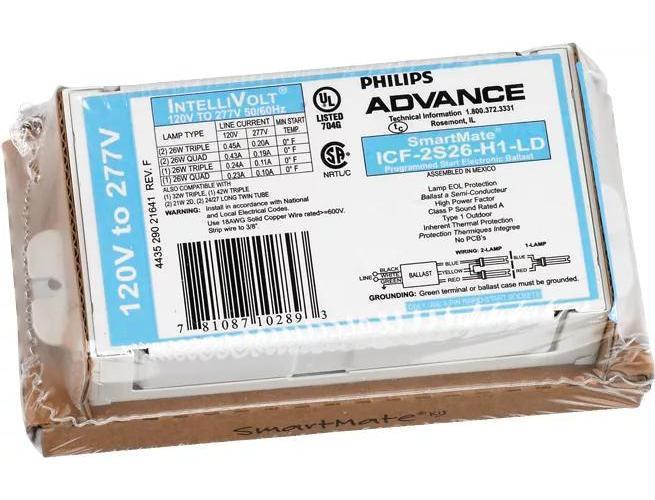

Offering maximum versatility the Philips Advance family of SmartMate® ballasts for 4-pin compact fluorescent lamps drive a broad range of quad and triple tube, circline, 2D and long twin tube lamps. SmartMate® ballasts energy efficient design, compact and lightweight housing and user-friendly features make these ballasts an ideal choice for fixture manufacturers, retrofitters and MRO replacement.

Advance SmartMate Compact Fluorescent Ballast, Electronic, CFL Lamp, 42 W Lamp, 93 W Wattage, 120 to 277 VAC, 0.33 to 0.78 A, 50/60 Hz Frequency, Programmed Start, 75 deg C Minimum Starting, Total Harmonic Distortion: 10 %, Power Factor: 0.98, Non-Dimmable Dimmable, 2 Lamps, GX24Q 4-Pin Lamp Base, Ballast Factor: 0.97, 75 deg C, Metal, 4.98 in L x 3 in W x 1.29 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Advance_ICF2S42M2LDK_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Advance_ICF2S42M2LDK_Specification_Sheet.pdf

• Solid wire type
• 18 AWG wire
• 1.5 lamp current crest factor
• 0.375 mm L wire strip
• 1.5 s ignition time
• Series lamp connection
• Black and white color input red, yellow and blue color output terminals
• Remote, tandem, through allowed wiring configuration
• Poke-in connection
• Automatic restart
