Offering maximum versatility, the Philips Advance family of SMARTMATE ballasts for 4-pin compact fluorescent lamps drive a broad range of quad and triple tube, circline, 2D and long twin tube lamps. SMARTMATE ballasts energy efficient design, compact and lightweight housing and user friendly features make these ballasts an ideal choice for fixture manufacturers, retrofitters and MRO replacement.

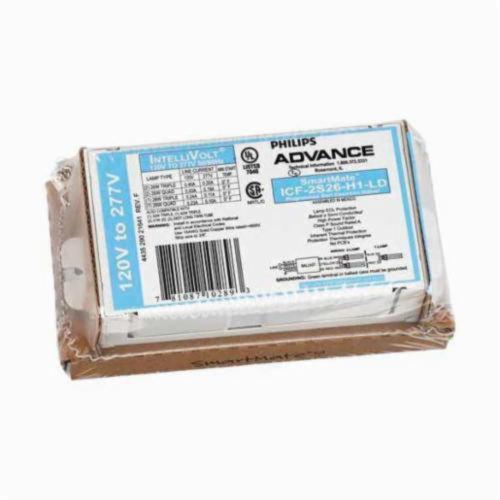

Philips Advance SMARTMATE Electronic Fluorescent Ballast, CFQ18W Lamp, 18 W Lamp, 35 W, 120 to 277 VAC, 0.13 to 0.3 A, 50/60 Hz, Programmed Start, Total Harmonic Distortion: 10%, Power Factor: 0.98, Dimmable: No, 2 Lamps, 4-Pin G24q Lamp Base Type, Ballast Factor: 0.95, 75 deg C, Metal/Plastic, 4.98 in L x 2.4 in W x 0.98 in H

• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520583143776.pdf
• Specification Sheet-1 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/SMARTMATE_ICF2S18H1LDK_Datasheet_1.pdf

• Solid wire type
• 18 AWG wire
• Automatic restart
• 1.5 lamp current crest factor
• 0.375 mm L wire strip
• 1.5 sec ignition time
• Series lamp connection
• Black and white color input red, yellow and blue color output terminals
• Remote, tandem, through allowed wiring configuration
• Poke-in connection
