Leviton® surge protection devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton® surge protection devices are compliant with UL 1449 Standards. Leviton® outstanding surge protection devices divert damaging voltage transients or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.

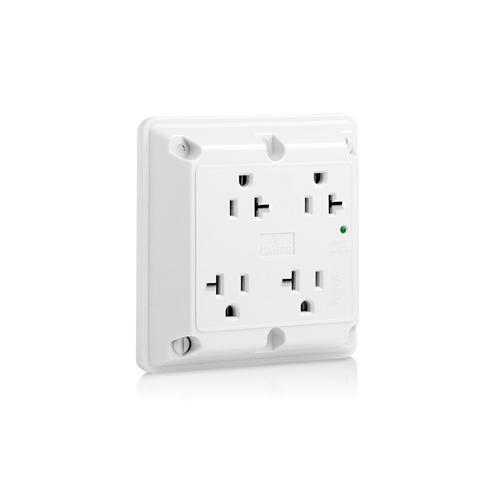

Leviton®, 5490-W, Grounding Heavy Duty Quadruplex Surge Protective Straight Blade Receptacle, 125 VAC, 20 A, 1 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Side Wire Terminal, Polycarbonate, White, 4.5 in W x 1.15 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5842-I_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5842-I_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5480-I_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leviton_5480-I_Specification_Sheet.pdf

• Tamper resistant versions have a shutter mechanism that prevents incidental contact with energized contacts
• Indicator light provides visual indication that equipment is being protected
• Single, duplex and 4-in-1 versions
• EMI/RFI noise filtering
• Wide variety of color options aid in identifying different types of equipment or applications
• Back and side wired design with durable metal mounting strap
• Point of use protection for up to 18000 A of surge current total
