For companies looking to make their fixed output linear T8, 4-pin CFL and T5HO fluorescent systems more cost effective and sustainable, Mark 10® Powerline ballasts provide an easy solution without the need for additional control leads. Simply, (1) replace the ballast, (2) replace the switch, (3) dim the lights, that is all it takes. Its that easy to bring the convenience and flexibility of fluorescent dimming to conference rooms, private offices, auditoriums, architectural cove lighting - anywhere dimming is required.

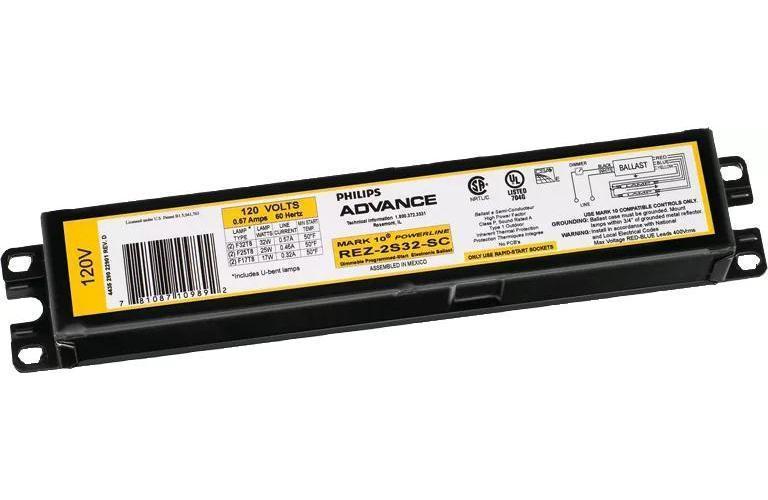

Advance, REZ2S32SC35I, Dimmable Fluorescent Ballast, Controllable Small Can, T8 Lamp, 32 W Lamp, 38/13/55/13/68/15 W Wattage, 120 VAC, 0.32 to 0.57 A, 60 Hz Frequency, Programmed Start, 10 deg C Minimum Starting, Total Harmonic Distortion: 10%, Power Factor: 0.99, Yes Dimmable, 2 Lamps, Ballast Factor: 0.05 to 1, NEMA Enclosure, 70 deg C, Metal, 9.5 in L x 1.7 in W x 1.18 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Advance_REZ2S32SC35I_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Advance_REZ2S32SC35I_Specification_Sheet.pdf

• High power factor
• Sound rated A
• Series lamp connection
• Ballast shall be physically interchangeable with standard electromagnetic or standard electronic ballasts, where applicable
• Ballast shall be available in a plastic/metal can or all metal can construction to meet all plenum requirements
• Ballast shall be provided with poke-in wire trap connectors or integral leads color coded per ANSI C82.11
