BURNDY® compression connectors are designed for reliable and controllable electrical connections. The complete installation is fully inspectable. They are high conductivity copper and operate cooler than the wire on which they are installed. The connectors withstand a wide range of electrical and environmental conditions, including current surges, temperatures, corrosion and vibrations, for a wide variety of applications. These features mean a consistently high quality connection at a low installed cost.

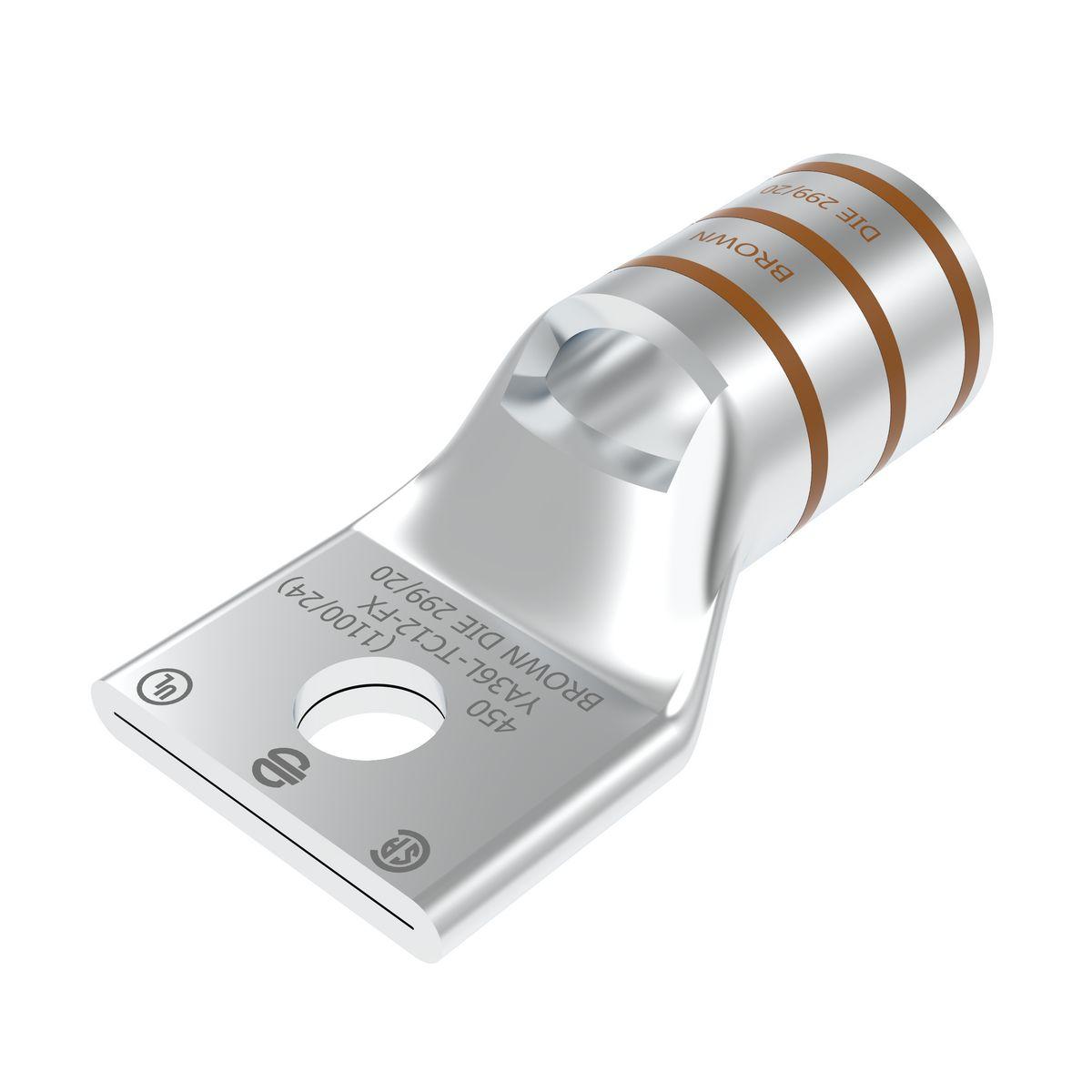

BURNDY® HYLUG™ Compression Lug, 1-Hole, Series: YA-L-FX, Flexible Copper Conductor, 444.4 kcmil Conductor, Die Code: 20, 600 VAC to 35 kV, 1/2 in Stud, Standard/Straight Tongue, 1.74 in W x 0.27 in THK Tongue, 3.29 in Overall Length, Chamfered/Short/Standard Barrel, 1.38 in L Barrel, 1-3/8 in L Wire Strip, Tin Plated, 90 deg C, Copper, Brown

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA34LTC58FX_Full_Engineering_Drawing.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA34LTC58FX_Full_Engineering_Drawing.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YAV4CLTC12FX_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YAV4CLTC12FX_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA36LTC12FX_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA36LTC12FX_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA36LTC12FX_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA36LTC12FX_Specification_Sheet.pdf
• VIDEO LINK https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6319929968112

• Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
• Standard barrel length is recommended for installations with limited space availability
• Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
• Connectors are clearly marked with stamping and barrel color coding
