Under cabinet lighting is both a practical and elegant lighting solution. ideal for use in kitchens, home offices and bathrooms, under cabinet lights add a soft ambience and romantic feel to rooms. These lights are also very functional additions for turning counter tops and desks into usable workspaces. There are several ways to go about lighting under cabinets. It is our hope to educate and inform you of these options so you can make a wise purchasing decision when you are ready to buy and install these versatile fixtures. Under cabinet lights are most often attached to wall mount upper cabinets. However, these lights can also be used for above cabinet lighting to create a fresh ambiance and add visual intrique. Under cabinet lighting is either battery operated or wired - with the lamps, plugs and wiring installed to be hidden from view. These lights feature a low-profile design to be easily concealed by a cabinets molding.

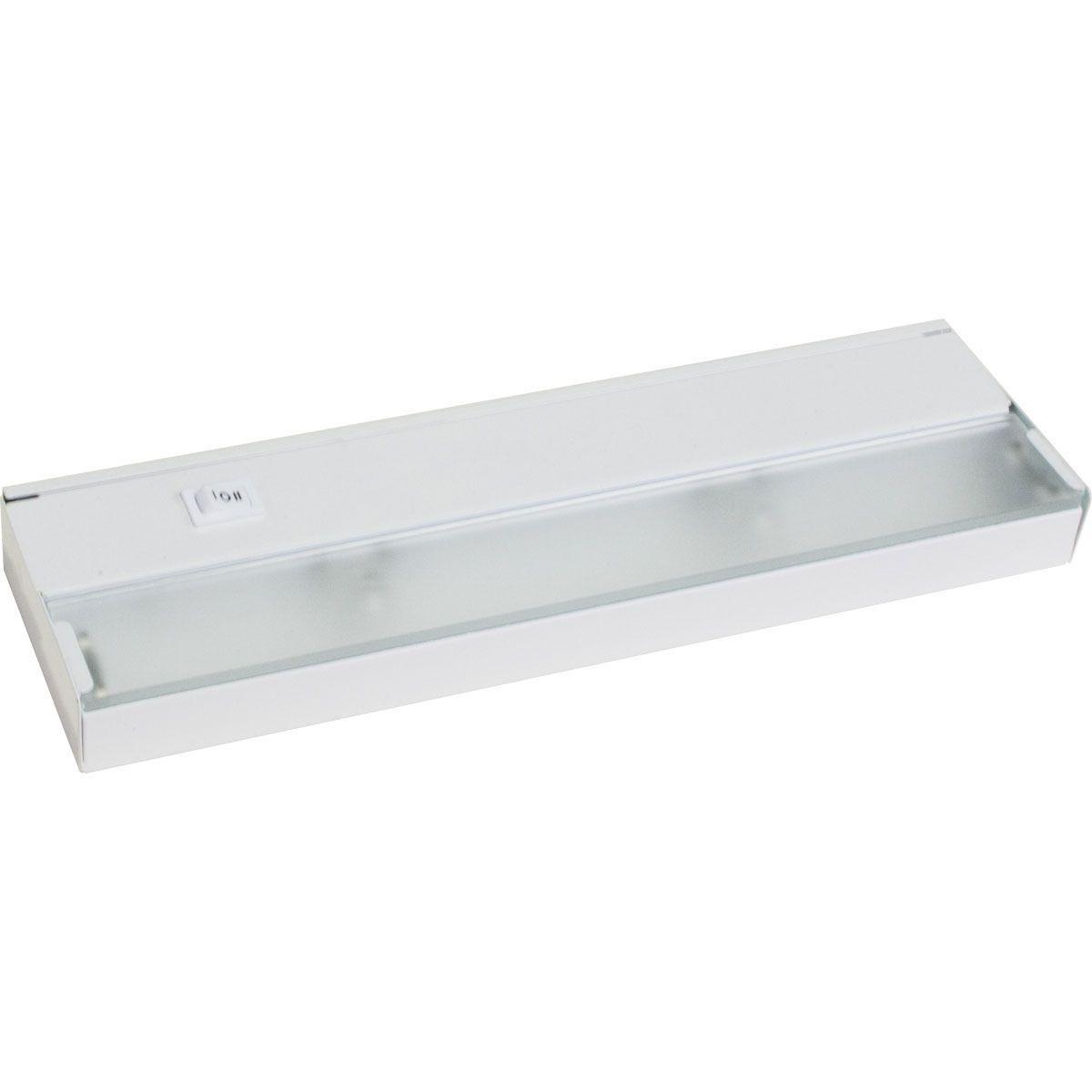

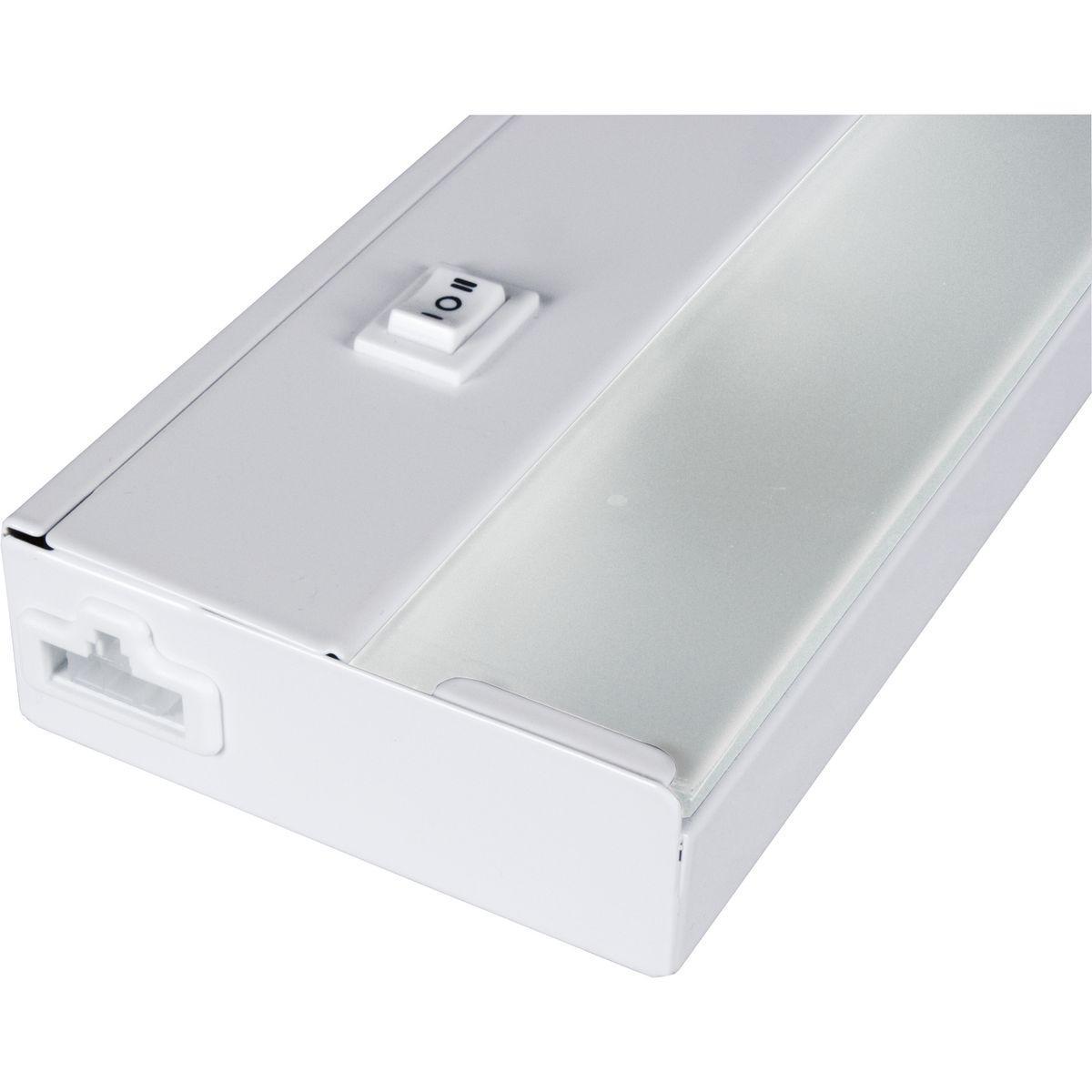

Progress Lighting® Under Cabinet Light, Commodity/Utilitarian Hide-A-Lite III, 120 VAC, 0.7 A, Xenon Lamp, 20 W Lamp, G8 Bi-Pin Lamp Base, 2 Lamps, 6000 hr Average Life, White Light, Clear Prismatic Shade, Electronic Ballast, Glass Lens, Under Cabinet Mounting, Steel Housing Material, White Housing Finish, 12 in L x 3-1/2 in W x 1-1/4 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Progress_Lighting_P7032-20WB_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Progress_Lighting_P7032-20WB_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Progress_Lighting_P7033-30WB_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Progress_Lighting_P7033-30WB_Specification_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Progress_Lighting_P5390-20_Warranty.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Progress_Lighting_P5390-20_Warranty.pdf

• Slotted holes allow easy mounting through housing
• Wedge based sockets for Xenon lamps
• Frosted tempered glass lens
• Dimmer specifically designed for use with electronic Low-Voltage transformers
• ULH series fixtures optimized with a center rear wiring access compartment and Push-in 3-wire electrical connectors for quick electrical connection without having to open the fixture or remove the lens
• Rear wiring access compartment covers provided with Push-in connector for non-metallic cable and knockout for feed-through wiring capability
• To install a portable fixture, use the optional 3-wire grounded cord and plug
• Integral reflector spaced away from cabinet bottom maximizes light output while reducing fixture and cabinet contact temperature
• Dimmable with standard ELV-type wall box dimmers or integral high-low-off rocker switch
• Slim, 1 in extruded aluminum profile tucks discreetly beneath cabinets or shelves
• 9, 14, 22 and 30 in long fixtures accommodate 1, 2, 3 and 4 halogen lamps respectively
• Hinged lens captured by spring-loaded retention bar provides secure closure

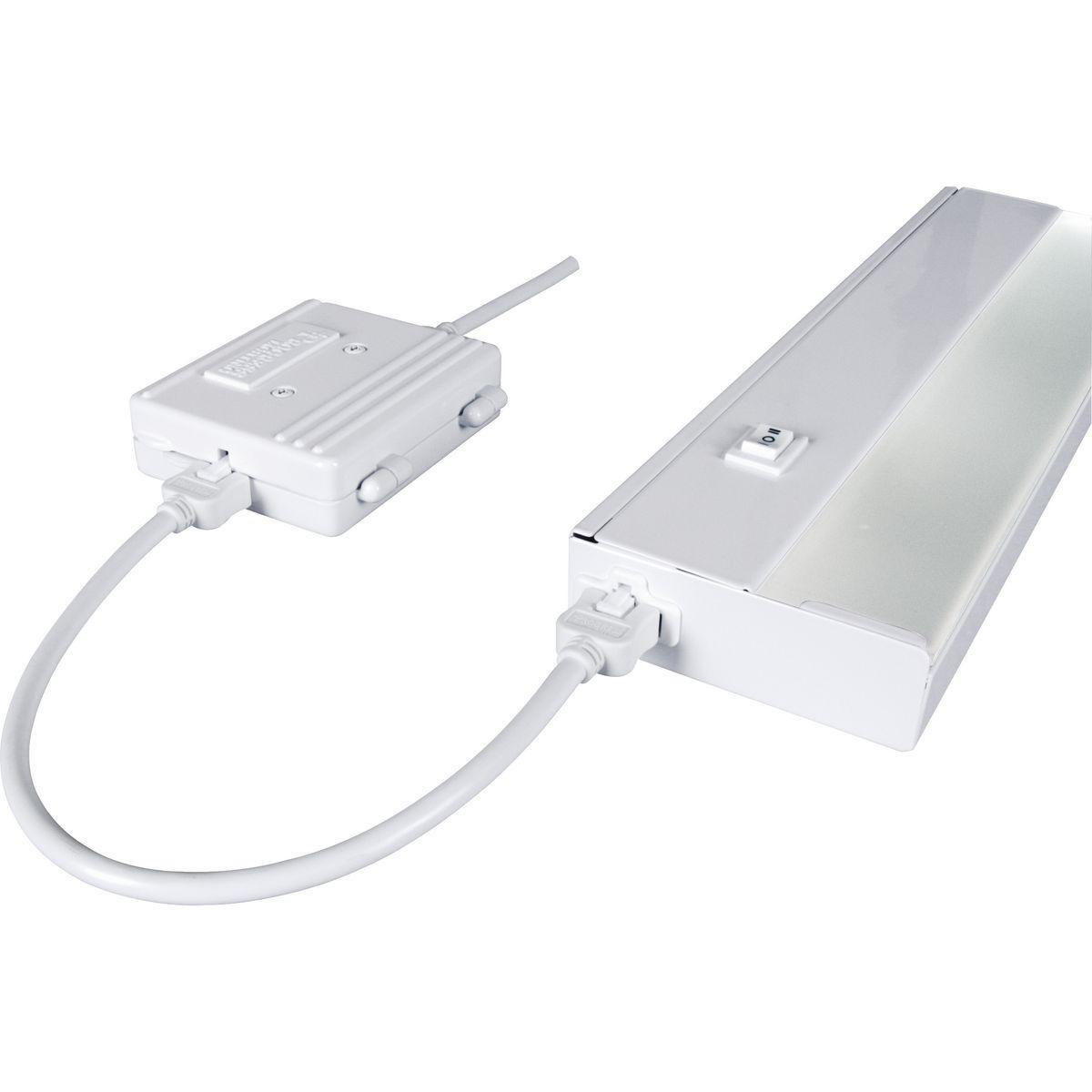

• Modular design for maximum flexibility and quick installation enables up to 10 fixtures to plug together
• 36 in W beam
• 0.99 power factor
