Berko All motors and contactor coils are 240V and operate on the secondary of a factory-installed step-down power transformer on 480V and 600V heaters so a separate fan and motor control power source is not needed Automatic fan delay eliminates cold drafts on start-up and discharges residual heat from the heater body during shut down Steel fins are copper-brazed to low-watt density, steel-sheathed tubular heating elements 5 and 7.5 kW models also come equipped with ceiling mounting bracket for horizontal or vertical flow mounting or any position in between Uniform discharge of all heated air lowers internal operating temperatures and prolongs element life Cabinet is finished with a polyester powder coating for excellent corrosion resistance Element finished with aluminized paint for corrosion resistance Fins and elements are arranged in a uniform grid pattern and fit closely into air discharge area to assure that all incoming air passes through heating element High-limit cut-off automatically shuts off current in the event of overheating and reactivates unit when temperature returns to normal *

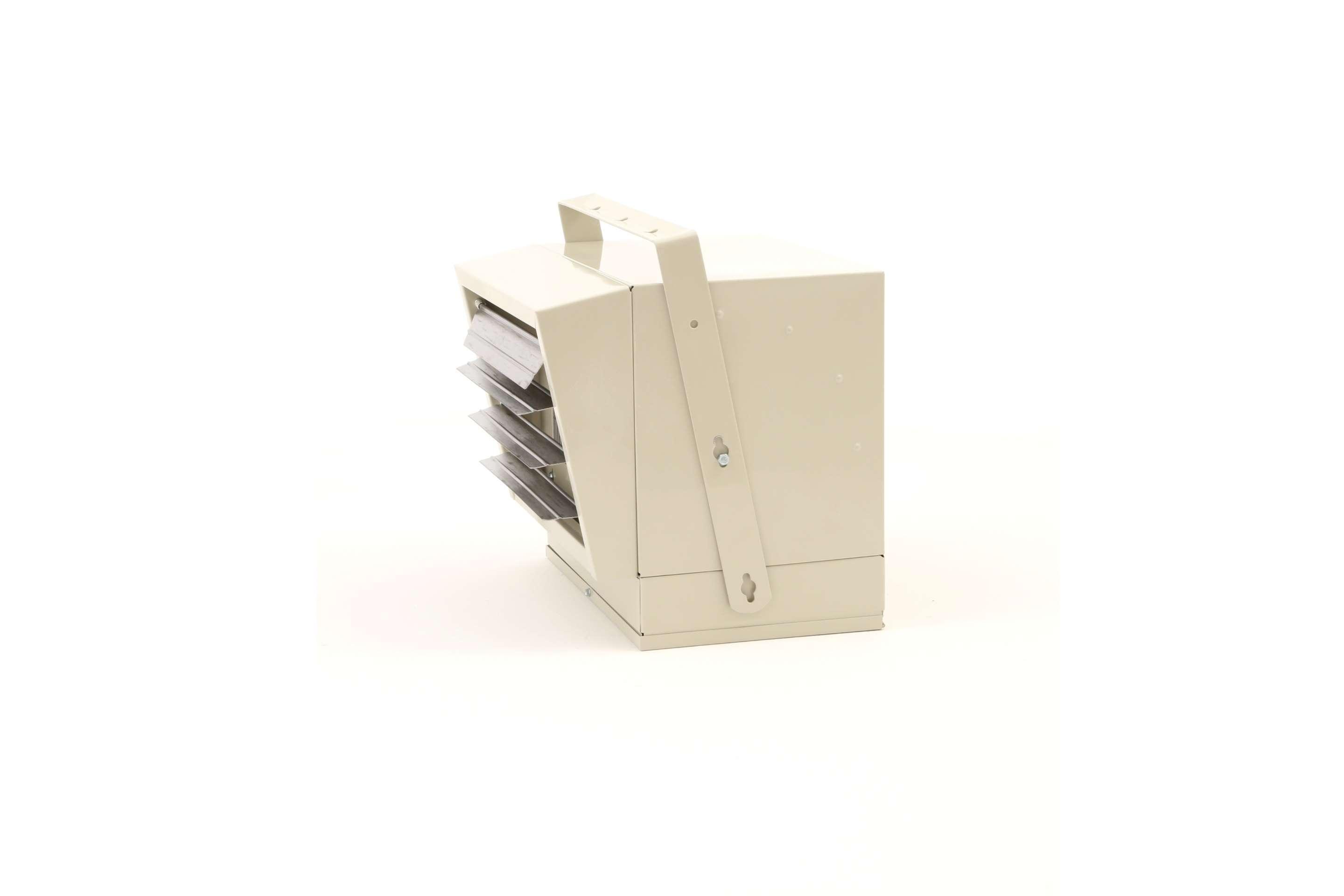

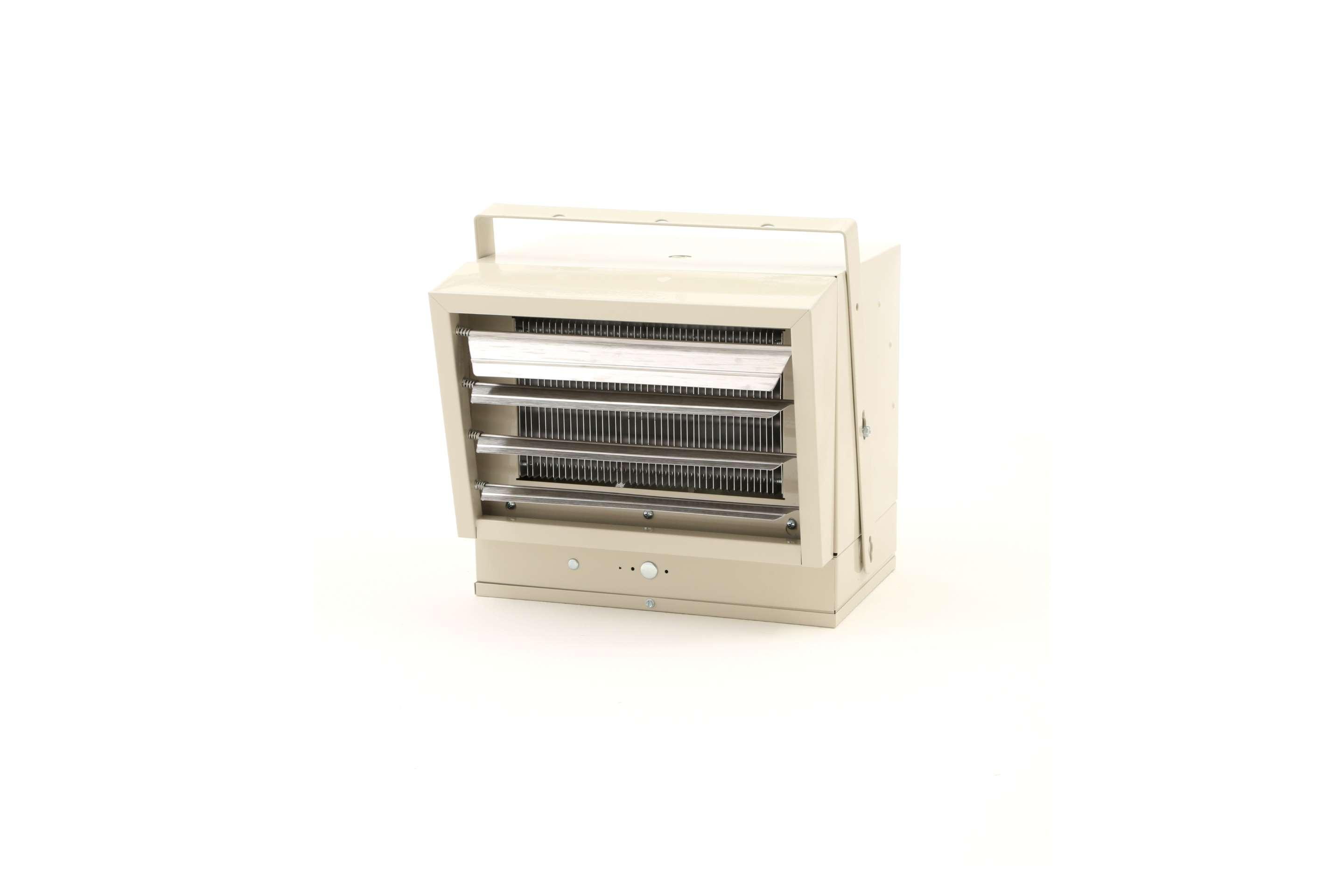

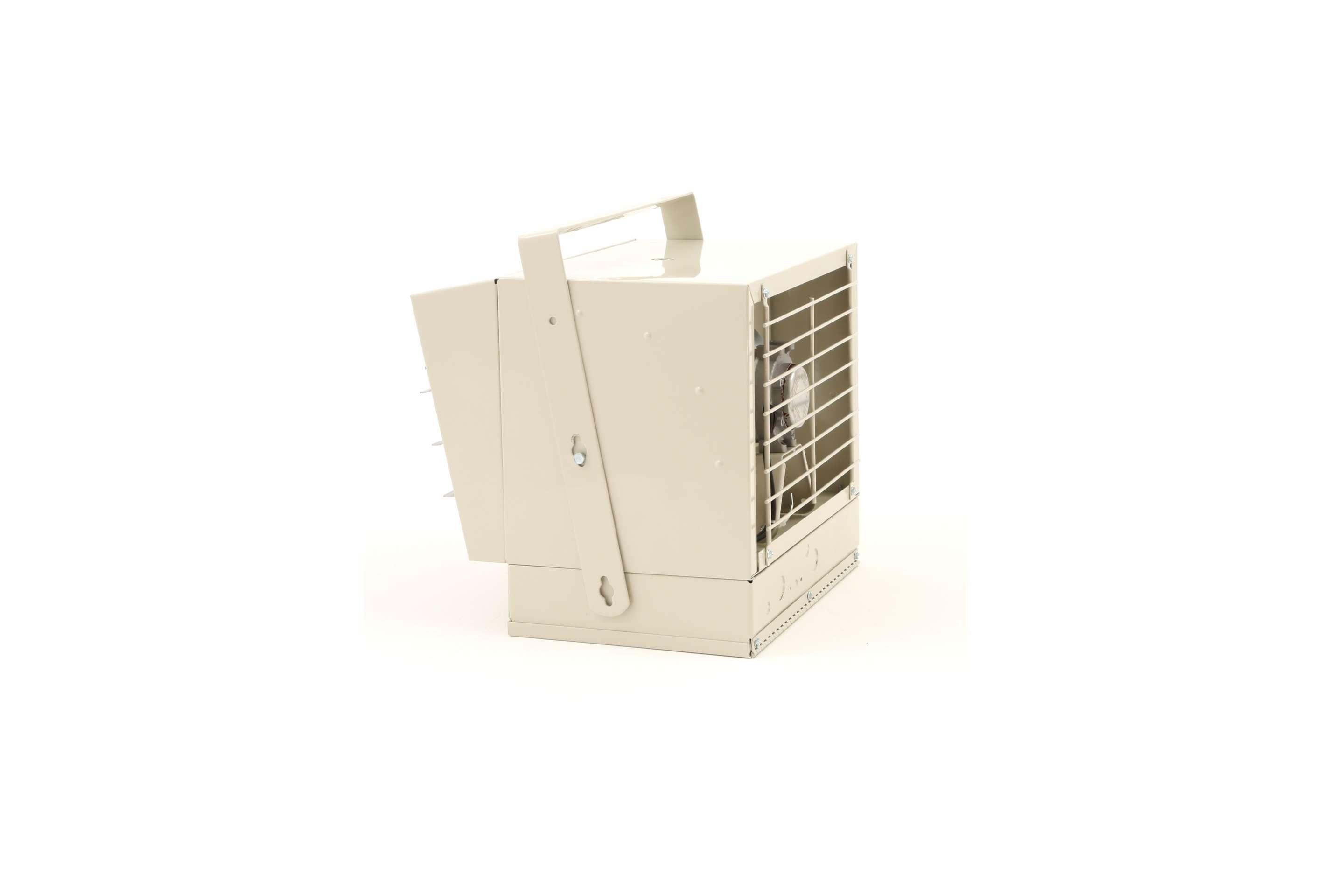

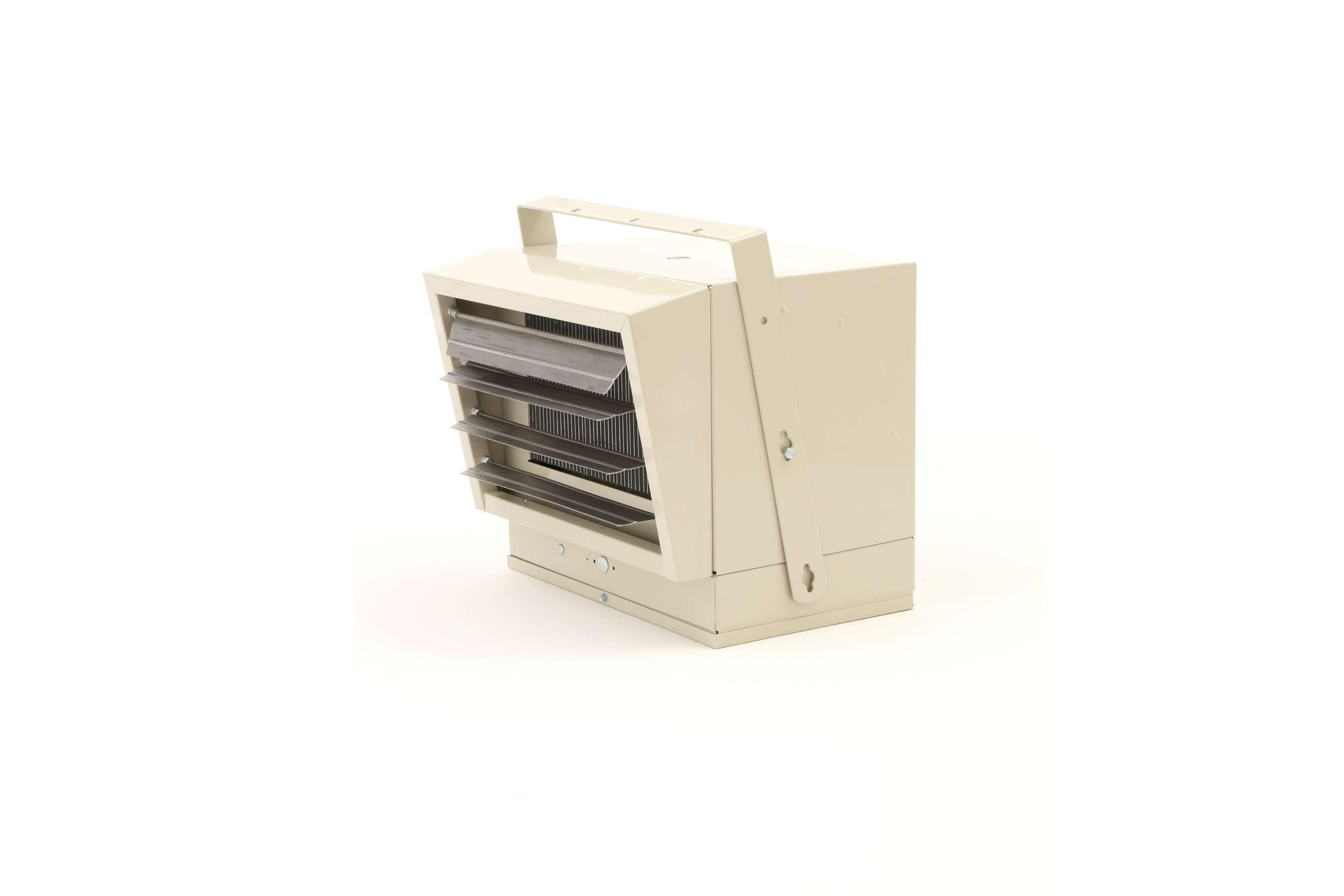

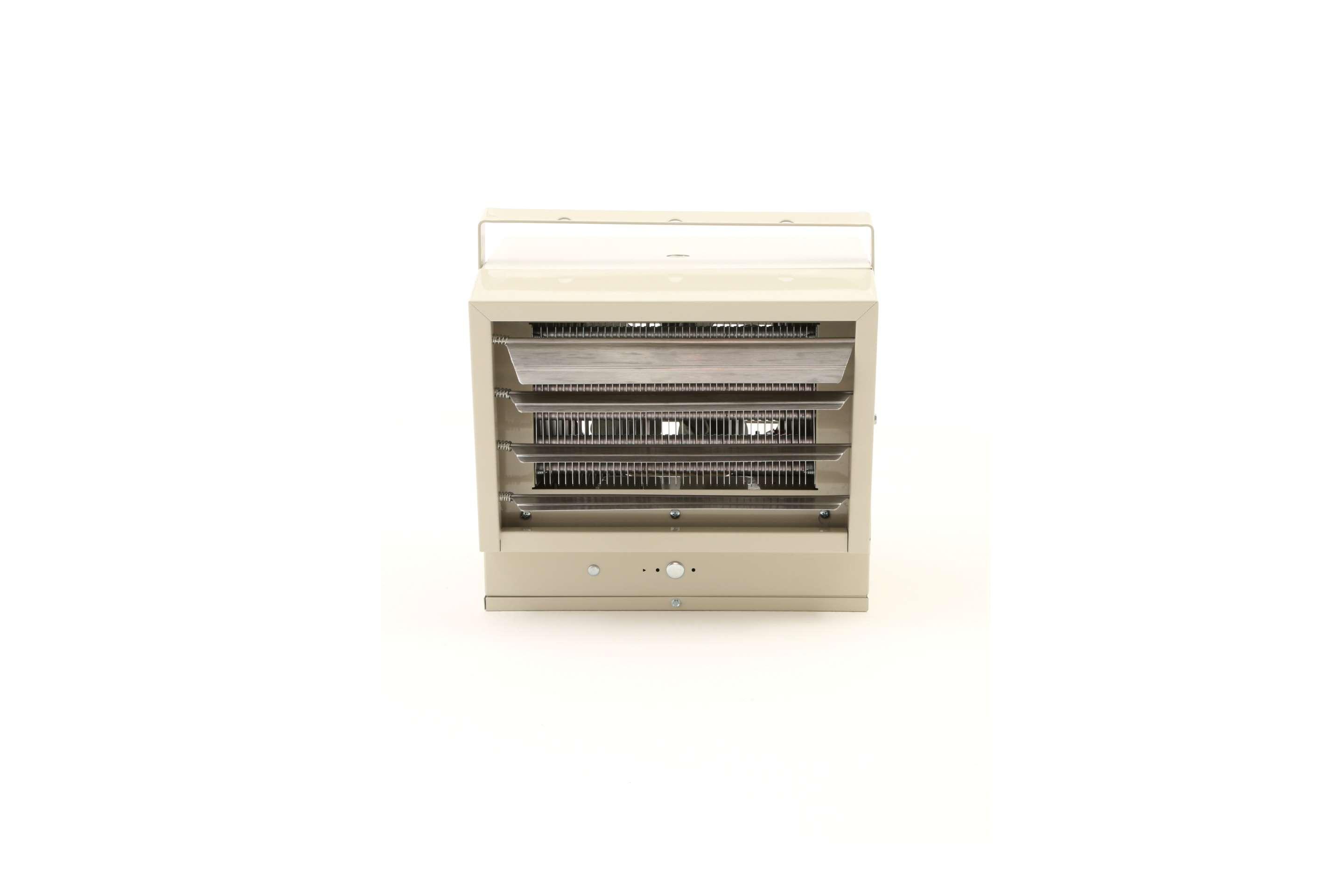

Berko® Unit Heater, 1 to 3-Phase Heavy Duty, Series: HUH, 480 VAC, 6 to 10.4 A, 5 kW Power, 270 cfm Flow Rate, 1400 rpm Speed, 60 deg F, Ceiling Mounting, 8 ft Mounting Height, 18 ga Cold Rolled Steel, Beige, Polyester Powder Coated, 14 in W x 12-3/8 in D x 12-1/2 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Berko_HUH720SA_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Berko_HUH720SA_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Berko_HUH720SA_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Berko_HUH720SA_Specification_Sheet.pdf
• VIDEO LINK http://images.salsify.com/video/upload/s--J6-UC-tO--/x5wwsrsgdjuwpdbkfjdw.mp4

• All motors and contactor coils and operate on the secondary of a factory-installed step-down power transformer on 480 and 600 volt heaters so a separate fan and motor control power source is not needed
• Fins and elements are arranged in a uniform grid pattern and fit closely into air discharge area to assure that all incoming air passes through heating element
• Element is finished with aluminized paint for corrosion resistance
• A high-limit cutout automatically shuts off current in the event of overheating and reactivates the heater when temperature returns to normal
• Cabinet is finished with an epoxy coating for excellent corrosion resistance
• Steel fins are copper-brazed to low-watt density, steel-sheathed tubular heating elements
• 5 and 7.5 kW models also come equipped with ceiling mounting bracket for horizontal or vertical flow mounting or any position in between
• Uniform discharge of all heated air lowers internal operating temperatures and prolongs element life
