Philips Advance HID ballasts are available to operate the wide variety of metal halide, high pressure sodium and low pressure sodium lamps available in today marketplace. Like fluorescent, HID lamps are gas discharge lamps. Light is produced by an arc discharge between two electrodes located at opposite ends of an arc tube within the lamp outer glass envelope. The ballast is the lamp power supply; its purpose is to provide proper starting and operating voltage and current to initiate and sustain this arc. Philips furnishes 120/208/240/277 Philips Advance Quadri-Volt core and coil ballasts to allow the stocking distributor to conveniently meet the replacement and retrofit needs of customers. In addition, we now offer 120/208/240/277/480 VAC 5-TAP core and coil ballasts for the most popular applications. 5-TAP ballasts add the 480 VAC input lead to the Quadri-Volt designs. A Quadri-Volt or 5-TAP core and coil, along with the appropriate capacitor, igniter (where required), mounting bracket and hardware and installation instructions are packed in a space saving shipping carton. These "kits" eliminate the need for distributors or end users to stock loose components of single voltage ballasts for 120, 208, 240, 277 and even some 480 VAC applications, though single voltage kits for 480 VAC applications will also be available.

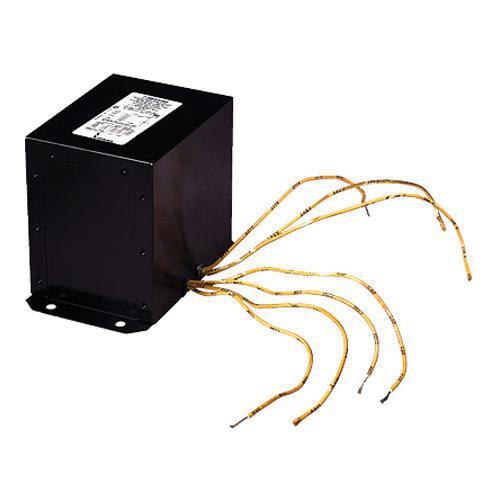

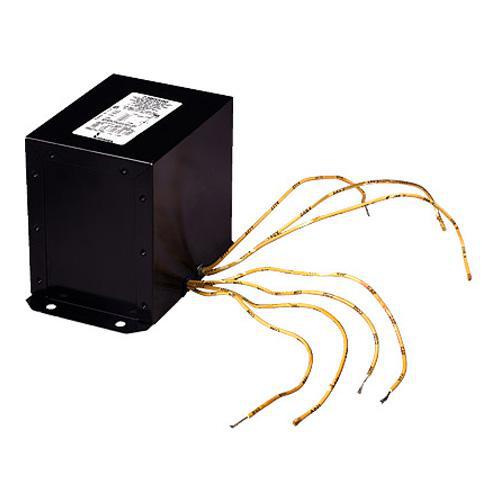

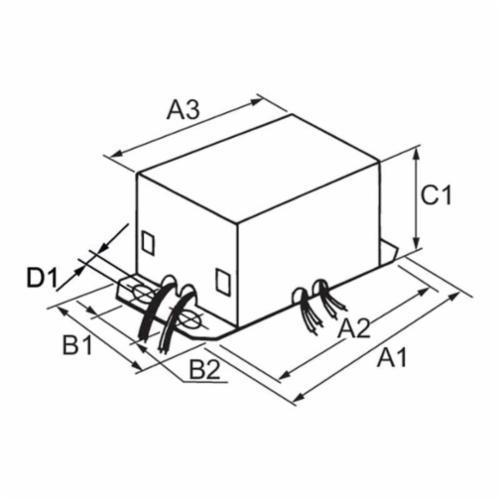

Advance HID Ballast, Magnetic, HID Metal Halide Lamp, 150 W Lamp, 185 W Wattage, 120/277 VAC, 1.6/0.7 A, 60 Hz Frequency, Pulse Start, -20 deg F Minimum Starting, Power Factor: 0.9, No Dimmable, 1 Lamp, Thermal Protection: Class P, 73B5482 Lamp Base, Ballast Factor: 1, ANSI M102/M142 Ballast Grade, Encap Enclosure, Metal, 6 in L x 3.6 in W x 4.6 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Philips_Advance_73B5482500D_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Philips_Advance_73B5482500D_Specification_Sheet.pdf

• Where quiet performance is required, the standard open core and coil ballast is encapsulated (potted) in a cube shaped steel can utilizing class H 180 deg C polyester compound
• 16 uF capacitor
• 3.65 A, 1.58 A input current (open circuit), 0.95 A, 0.42 A input current (starting), 1.2 to 1.9 A, 0.5 to 0.8 A input current (short circuit) and 1.6 A, 0.7 A input current (nominal)
• 1.65 in Dia x 2.75 in H oval capacitor
• Core and coil ballast with dry film capacitor
• UL insulation class H of 180 deg C
