The HPYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL 486A) and CSA certified to 600 V, when applied with the proper tool and die combination. The terminals may be used in applications to 35 kV.

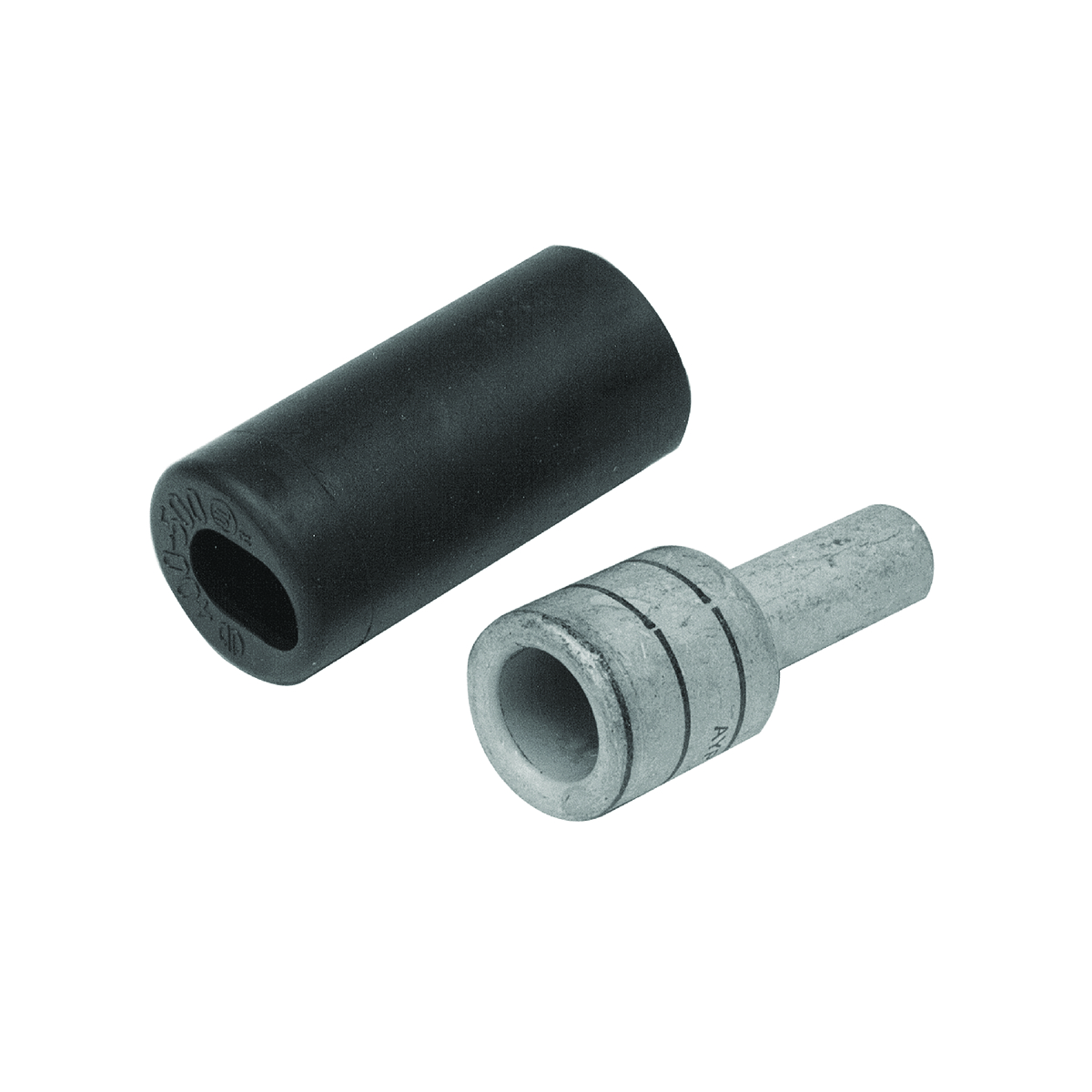

BURNDY® HYPLUG™ Compression Pin Adapter, Type YE-P-FX, 550 kcmil Conductor, Die Code: L99 Element A, Pink Color Code, 0.71 in Pin Dia, 1.42 in Pin Length, 3-5/16 in Barrel Length, 600 VAC, Specifications: 3-3/8 in L Wire Strip, 1-1/4 in OD, Copper, 1.25 in Dia x 5.3 in L

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e6d793a5f2a9e80a8fbd79183480282bce377e0759d264f0cbe43ff713664241.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e6d793a5f2a9e80a8fbd79183480282bce377e0759d264f0cbe43ff713664241.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0a5804da019a3ca18f966caca6f1e9bbf3d1501c343ad4ab07ea4e1422900de9.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0a5804da019a3ca18f966caca6f1e9bbf3d1501c343ad4ab07ea4e1422900de9.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6923ef199a8e63f76eb776bce8ba0d06db49b6589597bd57d8bfdc7060369cc1.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6923ef199a8e63f76eb776bce8ba0d06db49b6589597bd57d8bfdc7060369cc1.pdf

• Copper compression adapters are designed for reliable termination of copper conductor
• Current capacity of the conductor is downsized, but larger conductor is utilized, typical applications are for voltage drop protection
• Adapters facilitate the termination into existing mechanical set screw connectors for various stranded copper cables
• (Number of crimps) hydraulic Y35/Y39, Y750 tool, (4) U38XRT dies, Y45 tool, (4) U38XRT dies, (4) Y46 tool, U38XRT dies, (1) Y644M tool
