Totally enclosed non-ventilated (TENV) transformers are an excellent choice for applications where dry type transformer benefits are desired but the standard enclosure openings are unacceptable because of adverse atmospheric conditions. TENV transformers are recommended where dust, dirt or lint may be present or where transformers are subject to sprays or controlled wash down conditions. They are UL Listed through 75 kVA for indoor or protected outdoor applications. TENV transformers meet NEMA TP-1 efficiency.

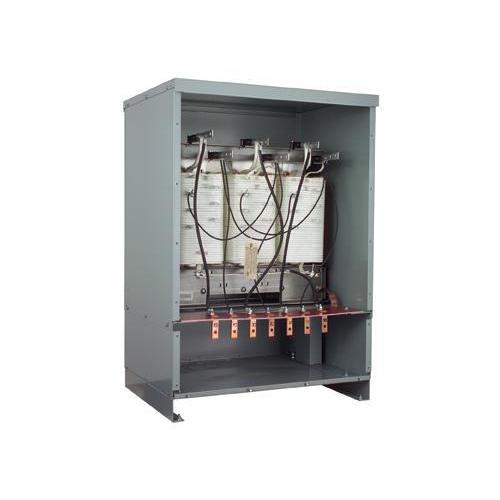

GE Noise Isolation Transformer, Type QL Dry Electrostatic Shield, Series: 9T, 480 VAC Primary, 480Y/277 VAC Secondary, 30 kVA Power, 60 Hz Frequency, 3 Phase, IS-19C Insulation, TENV Enclosure, 150 deg C

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_9T51B0137_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_9T51B0137_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_9T83B4000G17_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_9T83B4000G17_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2fc7a88d6ca2b9586ea32164740cb81a5322450a99527863e291db60d79a9a9a.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2fc7a88d6ca2b9586ea32164740cb81a5322450a99527863e291db60d79a9a9a.pdf

• Quiet performance
• Core and coil assemblies are mounted on rubber isolation pads to reduce noise
• Bolted coil terminations
• 1-piece front/back is easily removable for service
• NEMA 2 drip proof enclosure is standard
• Copper or aluminum windings
• Copper ground strap
• Robust packaging with top and side protection protects against shipping damage
• Accessible mounting flanges with front/back slotted mounting holes make installation easier
• 100% factory tested for shorts and coil integrity, current and loss, voltage, impedance and noise
• Clear, comprehensive documentation and labeling
