Quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design. Type CH circuit breakers trip to the off position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off the thermal magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short circuit conditions. Multi-pole breakers have internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.

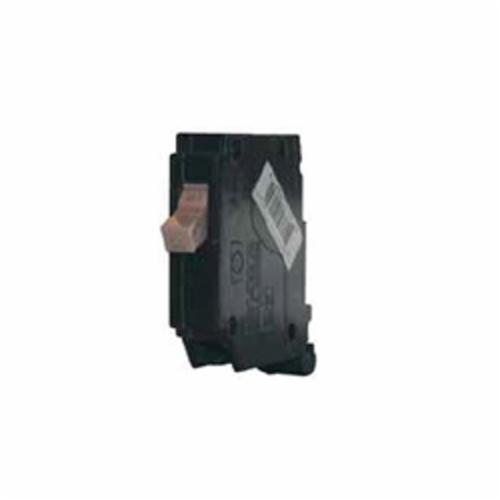

Cutler-Hammer Circuit Breaker, Type CH Standard, 120/240 VAC, 30 A, 10 kA Interrupt, 1 Pole, 1 ph, (1) 14 to 8 AWG, (2) 14 to 10 AWG Wire, NEMA 1/3R Enclosure, Plug-On Mounting, 60 to 75 deg C, 3 in L x 3/4 in W x 3 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_765d3954bb70397232dcd3fc5622aa390ed1cff064c81462587c6befc955947a.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_765d3954bb70397232dcd3fc5622aa390ed1cff064c81462587c6befc955947a.pdf

• Common trip requires (1) 3/4 in space
• Switching duty rated
• For 1-pole circuit breakers carry listing for HACR application
