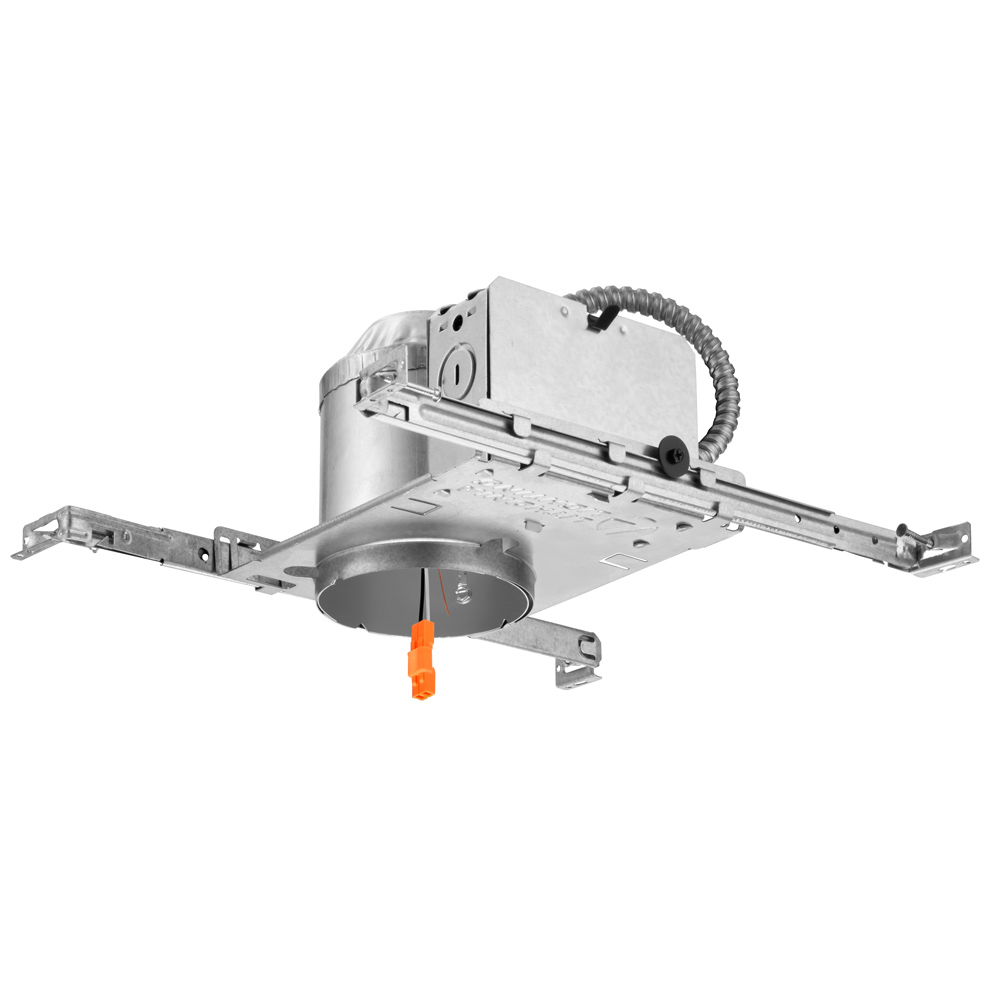

Lithonia Lighting®, L3LED T24 R6, Recessed Lighting Housing, New Construction, Series: L3LED T24, 120 VAC, 4 in Ceiling Opening, 7.9 W Lamp, 1 Lamps, Insulated/Non-Insulated Insulation, Recessed Mounting, For Use With: P Series Open and Baffle Wide Flange LED Module/LED Gimbal Modules, 4 in Diameter, 16-1/8 in Height, 11 in Width, Aluminum Housing Material, Gray

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c51f08052e651e22864af8fbc192f2a1a4377edcb7438b3b7ff7d99c3d90e9a2.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c51f08052e651e22864af8fbc192f2a1a4377edcb7438b3b7ff7d99c3d90e9a2.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5f935439b3a1f6dc831ed9a47306380a6e0c852b96bfb2d191e3263e149499bb.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5f935439b3a1f6dc831ed9a47306380a6e0c852b96bfb2d191e3263e149499bb.pdf

• Recessed housing rated IC or Non-IC, for new construction only
• (4) 1/2 in and (2) 3/4 in knockouts with slots for pryout, rated for through branch wiring
• Maximum 4 (2 in, 2 out) 12 AWG conductors
• Ground wire provided
• Removable J-box doors for easy access
• Quick disconnect provided for power connection to the LED modules
• Paint overspray masked by disposable disconnect plug
• Housing and LED module combination is IC rated and thermally protected
• Airtight housing suitable for airtight installations
• 2 x 8 and 2 x 6 wood joist or T-bar installation
• Approved for all ceiling and wiring types
• Expandable bar hangers allow for off center mounting in wood joist or T-bar ceilings
• Approved for direct burial in insulation
• Airtight standard
• Tested to meet current energy codes
• Aluminum foam gasketed housing with galvanized steel pan
• Galvanized bar hangers span up to 24 in outer circumference and feature stepped shank nail and positioning guide with integral T-bar locks
• Two locking screws hold fixture in position
• Galvanized steel junction box (4) built-in Romex® clamps
