The GE push button offering includes a complete line of pilot devices and stations for industrial and commercial applications. They are available in 30 and 22 mm sizes. The CR104P (30 mm) line heavy duty oiltight and watertight line is complete with a variety of accessories and enclosures. Standard and illuminated pushbuttons and selector switches are available as both key and conventional operators. The CR104P line also includes push to test and standard pilot lights, mushroom head pushbuttons , joysticks and push-pull and push-push operators. Chrome plated octagonal mounting rings project an attractive, high quality appearance. Positive feel selector switches offer a quality touch in all illuminated and non-illuminated, maintained and spring return units.

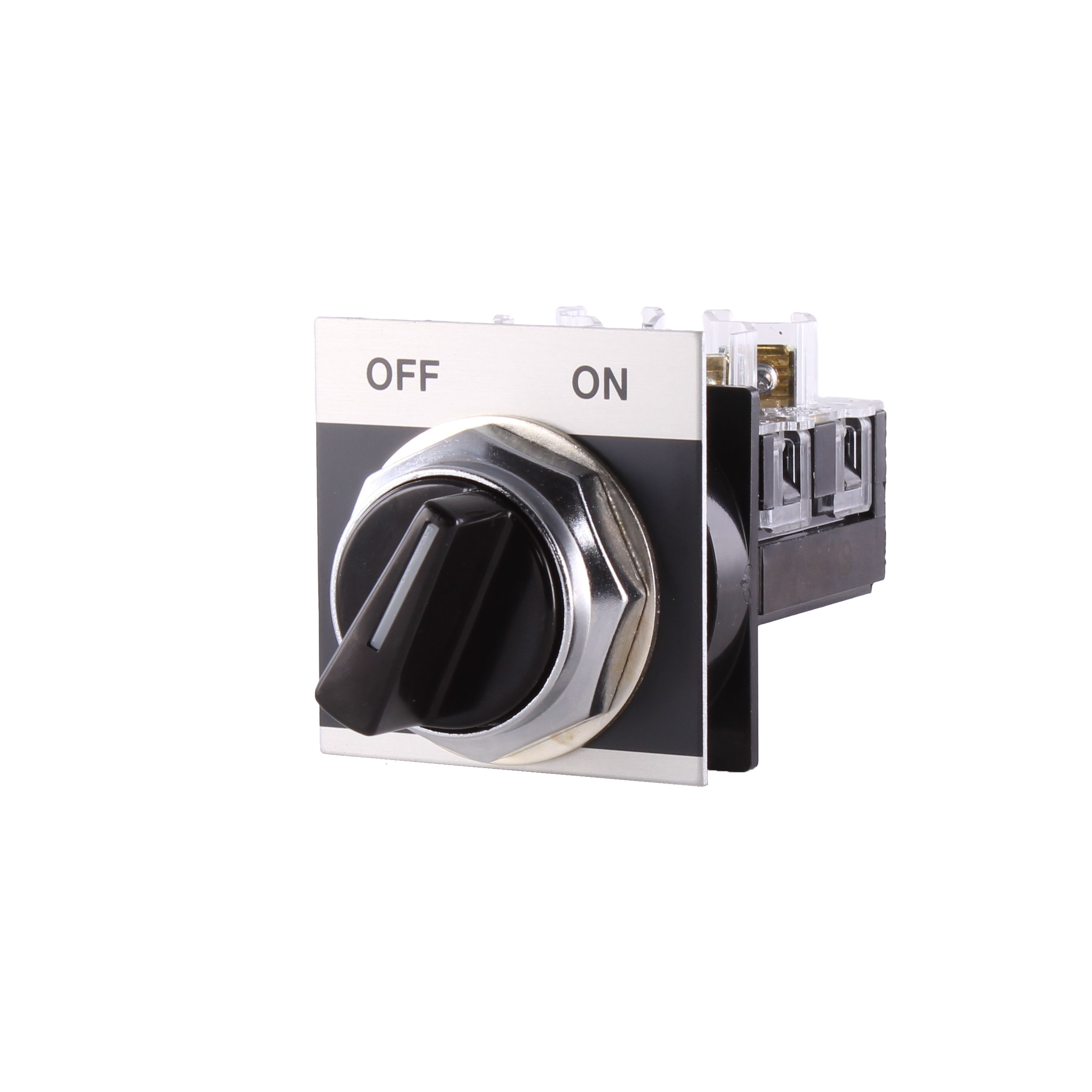

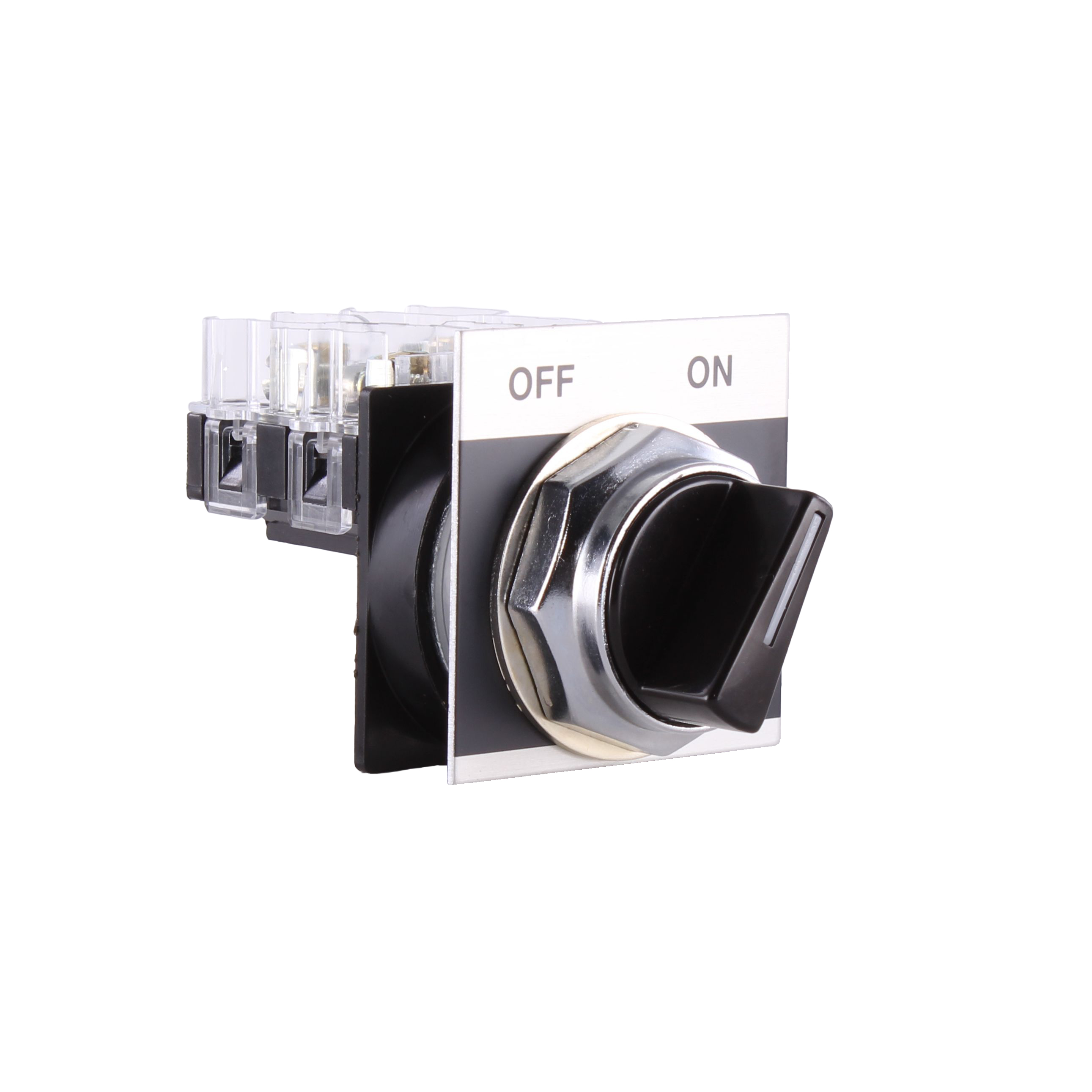

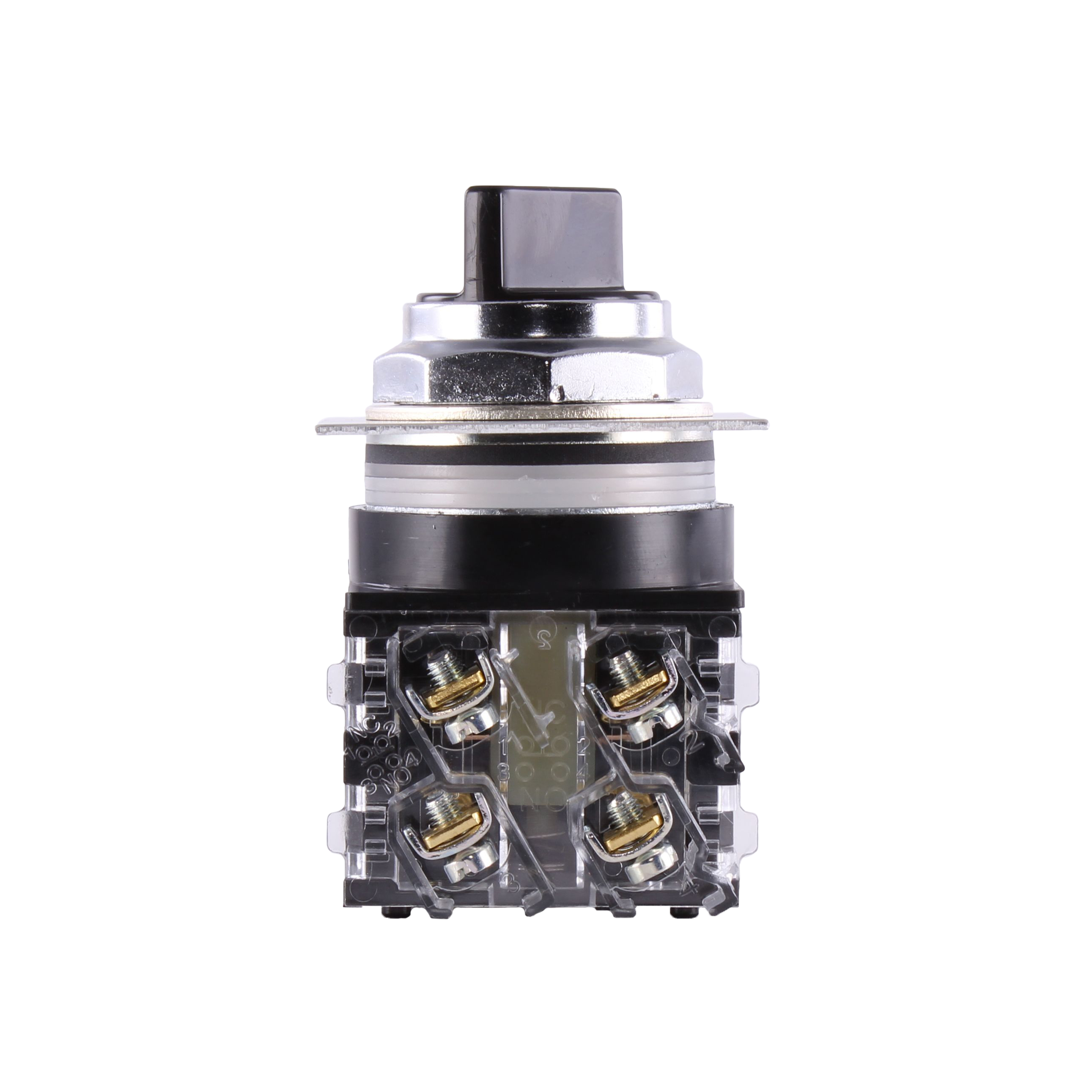

GE Non-Illuminated Selector Switch, Heavy Duty Oiltight/Watertight, Series: CR104P, 30.5 mm Size, 1NO-1NC Contact Configuration, Maintained Contact Mode, 10 A at 600 VAC/VDC Contact, 2 Positions, Cam Code: 1, Legend: Off/On, Bezel/Housing: Chromium Plated Zinc Ingot, Knob Actuator, NEMA 1/3/3R/4/4X/12/13 Enclosure, Snap-On Mounting, Nylon, Environmental Conditions: -13 to 158 deg F Operating Temperature

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_582e4149222c4706f27d2f1afe94a475b9257ee8420791174cc7fba97404a07b.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_582e4149222c4706f27d2f1afe94a475b9257ee8420791174cc7fba97404a07b.pdf

• Ease of assembly 1-screw contact block mounting, octagonal ring provides ease in front panel mounting and enclosure applications
• Greater torque due to the 8-sided ring design, greater torque can be developed during assembly and installation to provide oiltightness
• Stocking inventories reduced, forms may be furnished as complete units or as components, allowing building block construction from a minimum of stock, the latter may provide faster service
• The latter may provide faster service
• Especially adapted to machine tool service or any application where oil or coolant is present
