Resilient molded nylon blocks resist breakage and occupy minimum space on busy control panels. They are automotive approved to take the abuse of misguided screwdrivers. Ratings by wire size translate into amperes per circuit, according to the temperature limit of wire insulation and the internal panel ambient temperature. Fully shielded construction protects all live parts. Nylon has excellent anti-tracking qualities, as well as toughness and impact resistance.

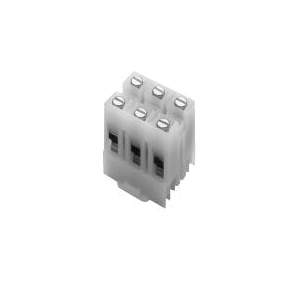

GE Terminal Block, 3-Point Medium Duty Modular Resilient, Series: CR151K Series, 600 VAC, 90 A, 18 to 2 AWG Wire, Box Terminal, 1-7/8 in Terminal, 5 mm Spacing, DIN Rail Mount, Feed-Through, 30 to 80 deg C, Molded Nylon, 1.34 in H x 1.88 in W x 1.44 in D

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_CR151KX008_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_CR151KX008_Catalog.pdf

• Five circuits per inch give total of 12 circuits in 2.4 in L terminal block, equal to European 5 mm spacing
• Compact size - four circuits per inch at 300 or 600 VAC, 22 to 10 AWG wire, without stacking
• Collar type terminals with spring action overlapping top plates
• Large opening makes wiring easy
• Insulating walls on all sides of entrance to collar, guide the wire into the lug, strands do not go astray
• Blocks are installed and removed without moving adjacent blocks
