Standard and illuminated push buttons and selector switches are available as both key and conventional operators. The CR104P line also includes push-to-test and standard pilot lights, mushroom head push buttons, joysticks and push-pull and push-push operators. Chrome plated octagonal mounting rings project an attractive, high quality appearance. Positive feel selector switches offer a quality touch in all illuminated and non-illuminated, maintained and spring return units.

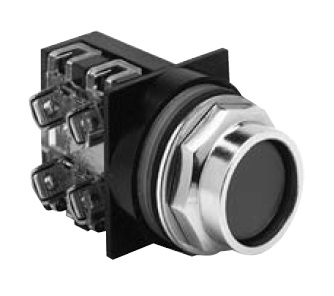

GE Non-Illuminated Pushbutton Operator, Heavy Duty Oiltight Watertight Standard, Series: CR104P, 30.5 mm, Momentary Contact Mode, 10 A at 600 VAC/VDC Contact, Recessed Button Operator, NEMA 1/3/3R/4/4X/12/13, Screw Terminal, Front Panel Mount, Bezel/Housing: Chromium Plated Zinc Ingot, -13 to 158 deg F, Nylon, Black/Green/Red/Yellow

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_CR104PBL11A1S8_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_CR104PBL11A1S8_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e04aa116fee07acfcf267b2aa4a22784a6f44d1784cd6668df0331d6b4136977.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e04aa116fee07acfcf267b2aa4a22784a6f44d1784cd6668df0331d6b4136977.pdf

• Ease of assembly, 1-screw contact block mounting
• Octagonal ring provides ease in front panel mounting and enclosure applications
• Due to the 8-sided ring design, greater torque can be developed during assembly and installation to provide oil-tightness
• Stocking inventories reduced forms may be furnished as complete units or as components, allowing building block construction from a minimum of stock, the latter may provide faster service
• Color coded - colored knobs and caps are available in kit forms for easy field conversion
• Suitable for use in NEMA 1/3/3R/4/4X/12/13 applications when mounted in enclosures rated for those same applications
• For some NEMA 4X applications, protective caps will improve corrosion resistance
