GE Type TDT double throw safety switches are designed for applications with two sources of power where safety, high performance and continuity of service are essential. Double throw switches are available in 30 to 1200 A, 600 VAC, 250 VDC maximum in fusible and non-fusible construction and in NEMA Type 1 (indoor) and Type 3R (outdoor) and NEMA Type 4X (stainless steel) enclosures. GE double throw safety switches are UL Listed as service entrance equipment when installed in accordance with the NEC.

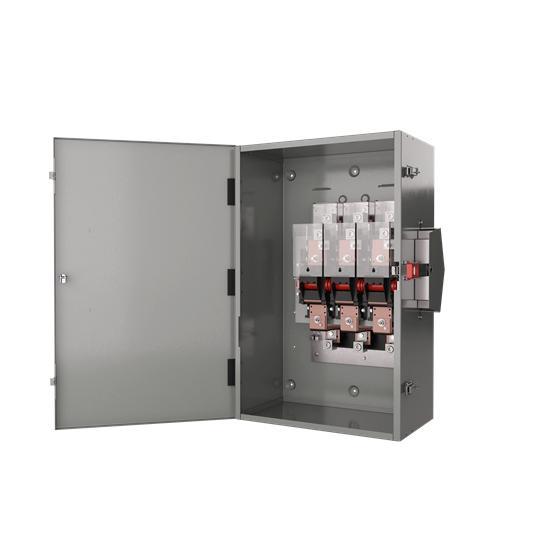

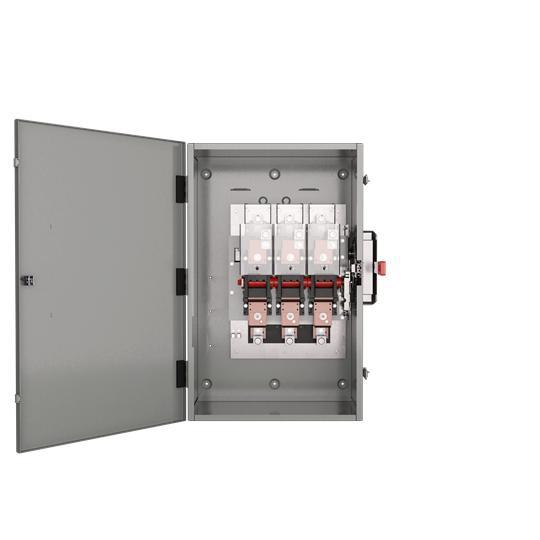

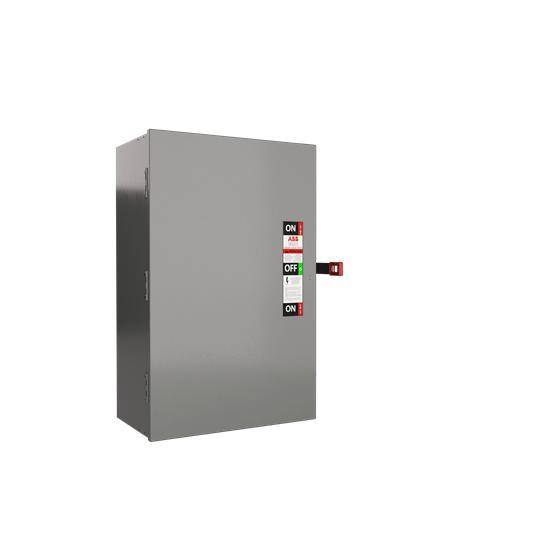

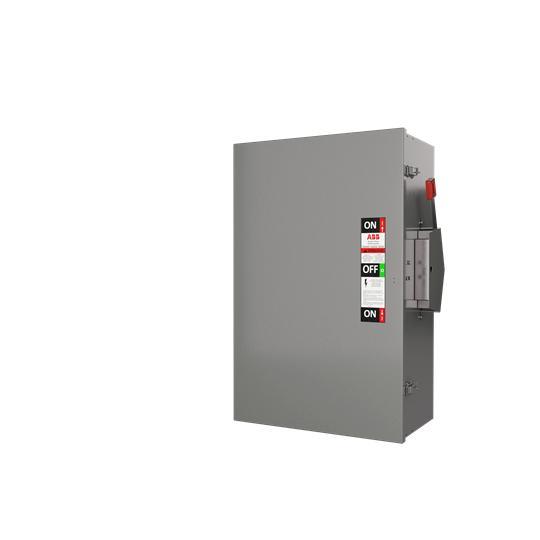

GE Spec-Setter™ Double Throw Safety Switch, Type TDT Dust-Tight Fusible Standard, 600 VAC, 30 A, 3 hp, 5 hp, 7-1/2 hp, 10 hp, 20 hp, 1/3, 50/60 Hz, 3 Pole, 3 Wires, 100 kA Short Circuit Current Rating, 3 Form C 3PDT, Handle Actuator, NEMA 1 Enclosure, 3-Point Mount, Line/Load Lug Terminal, 12 in W x 8.3 in D x 37 in H, Steel

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TDT3361_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TDT3361_Specification_Sheet.pdf

• Bright red handle is easy to see and easy to grip
• Highly visible ON/OFF/ON label takes the guesswork out of safety
• Quick make/quick break mechanisms
• 3-position (ON/OFF/ON) handle is lockable
• Lockable cover latch meets all safety inspection requirements
• 60/75 deg C conductor rating
• Full cover interlocks
• Designed for commercial and industrial applications where safety, high performance and continuity of service are essential
• 1/2 hp at 120 VAC standard fuse, 2 hp at 120 VAC time delay, 3 hp at 480 VAC standard fuse, 7-1/2 hp at 480 VAC time delay, 3 hp at 600 VAC standard fuse, 10 hp at 600 VAC time delay 1-phase, 1-1/2 hp at 120 VAC standard fuse, 3 hp at 120 VAC time delay, 3 hp at 240 VAC standard fuse, 7-1/2 hp at 240 VAC time delay, 5 hp at 480 VAC standard fuse, 15 hp at 480 VAC time delay, 7-1/2 hp at 600 VAC standard fuse, 20 hp at 600 VAC time delay 3-phase, 3 hp at 125 VDC time delay, 5 hp at 250 VDC horsepower rating
