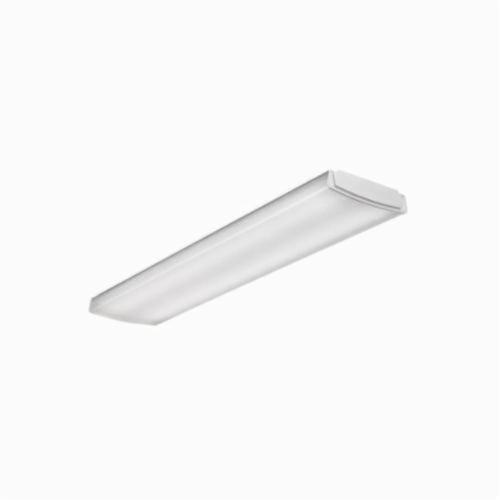

Lithonia Lighting® Wraparound, Curved Basket Low Profile, Series: LBL4, 120 to 277 VAC, LED Lamp, 27 W Lamp, 60000 hr Average Life, 3500K Color, 82 CRI, 10 Low Mount 360 deg Coverage Lens, 3080.6 Lumens, Surface/Suspended Mount, Steel Housing, High Gloss Baked White Polyester Housing, 48 in L x 10 in W x 2-3/4 in H

• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_LBL4_347_LP840_Data_Sheet.pdf

• LBL LED wraparound provides a digital lighting platform to deliver general ambient lighting for surface mount applications
• The LED system delivers long life and excellent color to ensure a quality, low maintenance lighting installation
• Metal parts are die formed from code gauge steel, prismatic diffuser is 100% acrylic with sonically welded luminous ends
• Continuous side flanges on fixture body provide light trap and continuous diffuser support to prevent accidental opening and simplify maintenance
• Five stage iron phosphate pretreatment assures superior paint adhesion and rust resistance
• Painted parts finished with high-gloss, high-reflectivity baked white polyester enamel
• Curved prismatic diffuser with linear side prisms and highly transmissive overlay minimizes lamp image and provides high angle brightness control
• Long life LEDs coupled with high-efficiency drivers, provide superior quantity and quality of illumination for extended service life
• Step-level dimming option allows system to be switched to 50% power for compliance with common energy codes while maintaining fixture appearance
• Narrow housing
