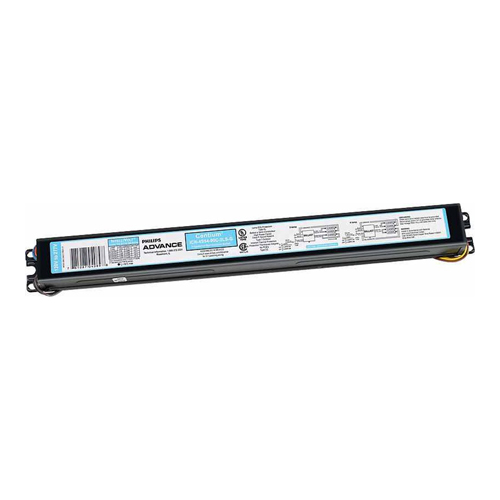

Philips Advance IOP2S54LSD35M

Philips Advance OPTANIUM IOP2S54LSD35M Electronic High Frequency Step Dimming Fluorescent Ballast, F54T5/HO Linear Lamp, 54 W, 120 to 277 VAC, Programmed, 1 Ballast Factor

  • MPN: IOP2S54LSD35M

  • IESPN: 224301

  • UPC: 781087133880

  • Min Order Qty: 1

  • Quantity Interval: 1

    • Availability: loading

    • Branch Availability
Philips Advance IOP2S54LSD35M

Philips Advance OPTANIUM ballasts with step dim capability for T5 and T8 fluorescent lamps represent an affordable, energy efficient and versatile lighting solution designed to help meet energy codes such as California's Title 24 and ASHRAE 90.1-2010 that require end users to reduce lighting power consumption by 50%. Operating from any line voltage switching device, the ballasts programmed start circuitry provides extended lamp life in frequent switching applications like those associated with the use of occupancy sensors or motion detectors making this product the sustainable choice for many commercial applications. The ballast additionally features IntelliVolt multiple voltage technology as well as safety features, including auto restart, ballast shutdown mode, type CC protection and T5 and T5HO lamp End-Of-Life (EOL) protection circuitry, which safely removes power from the lamp upon failure to minimize maintenance concerns. Offering the flexibility of step dimming with the high efficiency of OPTANIUM electronic ballast technology, our ballasts represent an optimal lighting solution for a wide variety of professional applications.

Philips Advance OPTANIUM Fluorescent Ballast, Electronic High Frequency Step Dimming, F54T5/HO Linear Lamp, 54 W Lamp, 54 W, 120 to 277 VAC, 0.42 to 0.98 A, 50/60 Hz, Programmed Start, 0 deg F Minimum Starting, Total Harmonic Distortion: 10%, Power Factor: 0.98, Dimmable: Yes, 2 Lamps, Thermal Protection: Class P, Ballast Factor: 1, 70 deg C, Metal, 16.7 in L x 1.18 in W x 1 in H

Type      Electronic High Frequency Step Dimming
Lamp Type      F54T5/HO Linear
Lamp Wattage      54 W
Wattage      54 W
Voltage Rating      120 to 277 VAC
Amperage Rating      0.42 to 0.98 A
Frequency Rating      50/60 Hz
Start Type      Programmed
Minimum Starting Temperature      0 deg F
Total Harmonic Distortion      10%
Power Factor      0.98
Dimmable      Yes
Number of Lamps      2
Thermal Protection      Class P
Ballast Factor      1
Temperature Range      70 deg C
Material      Metal
Dimensions      16.7 in L x 1.18 in W x 1 in H
  • pdfCatalog https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Philips_Lighting_HDF226T435M_Catalog.pdf
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520614951112.pdf
  • pdfSpecification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/10982/ID-SPE-v1-adam-20151210212401428_pss_en_aa_001.pdf
  • pdfWarranty https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Philips_Lighting_HDF226T435M_Warranty.pdf
  • IntelliVolt multiple voltage technology enables operation from 120 to 277 VAC, 50/60 Hz
  • Philips Advance fluorescent electronic and magnetic ballasts are designed and manufactured to engineering standards correlating to an average life expectancy of 50000 hr of operation at maximum rated case temperature
  • Blue label color coding
  • 20 to 24 dB average ambient noise level of interior
  • High power factor
  • Sound rated A
  • Series lamp connection
  • 35M - ballast case packaged
  • Reduce input power by 50% to help meet energy codes
  • Dim all the lamps together providing equal burn hours on all lamps reducing uneven lifetimes as experienced with on-off switching systems
  • Ensure ease of use and system compatibility across a broad range of applications
  • For T5, T5HO and T8 fluorescent lamps
