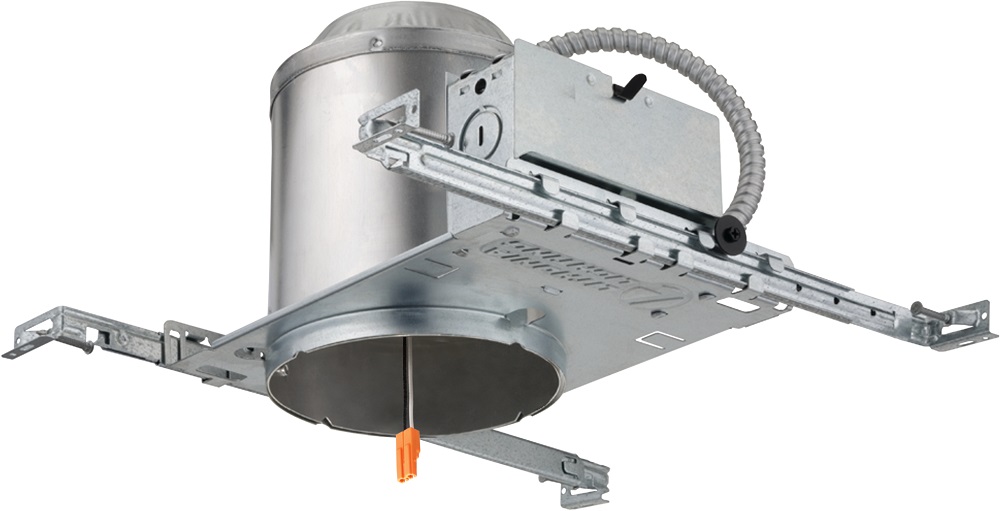

Lithonia Lighting®, L7XLED T24 U, Downlight Housing, New Construction, Series: L7XLED T24, 120 VAC, 7 in Ceiling Opening, 1 Lamps, Insulated/Non-Insulated Insulation, Recessed Mounting, For Use With: REALITY™ ENERGY STAR® (ESL) Open Narrow Flange LED Module/P Series Open and Baffle Wide Flange LED Modules, 6 in Diameter, 16.2 in Height, 8.1 in Width, Aluminum Housing Material, Gray

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_L3_R6_Instruction_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_L3_R6_Instruction_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_06a057e87af5c99c66ccabd6289feb204dc899e93e5875c1b4a4b086762d09a8.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_06a057e87af5c99c66ccabd6289feb204dc899e93e5875c1b4a4b086762d09a8.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5f935439b3a1f6dc831ed9a47306380a6e0c852b96bfb2d191e3263e149499bb.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5f935439b3a1f6dc831ed9a47306380a6e0c852b96bfb2d191e3263e149499bb.pdf

• Recessed housing rated IC or Non-IC
• Galvanized steel junction box (4) built-in Romex® clamps
• Five 1/2 in and (2) 3/4 in nominal knockouts with slots for pryout
• Rated for through branch wiring, rated for 90 deg C
• Maximum 4 (2 in, 2 out) 12 AWG conductors
• Ground wire provided
• Removable J-box doors for easy access
• Two side mounted torsion springs on the trim and 2 receiving brackets in the can ensure a consistently tight fit with the ceiling
• Quick disconnect provided for power connection to the LED modules
• Paint overspray masked by disposable disconnect plug
• Housing and LED module combination is IC rated and thermally protected
• For new construction

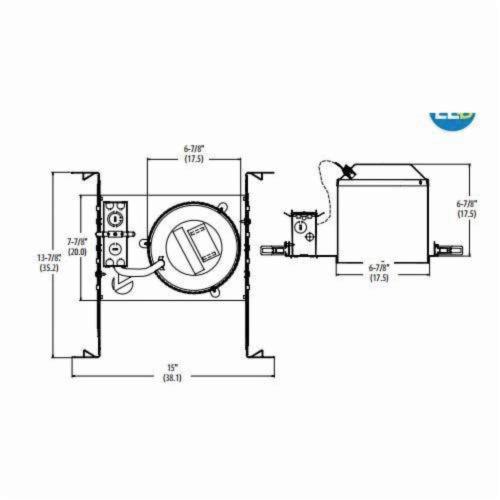

• 15 in L, ceiling/recessed mounting
• Approved for all ceiling and wiring types
• Approved for direct burial in insulation
• Airtight standard
• Tested to meet current energy codes
• Aluminum foam gasketed housing with galvanized steel pan
• Galvanized bar hangers span up to 24 in outer circumference and feature built-in nailer and integral T-bar clips
• Two locking screws hold fixture in position
