The Leviton RCA Compression QuickPort Connector is designed for use in high-end home and office applications such as HDTV and home theater. It features a radial compression design providing a secure termination on RG6 Quad Shield cable. Terminate using the Leviton installer-friendly Master Compression Tool.

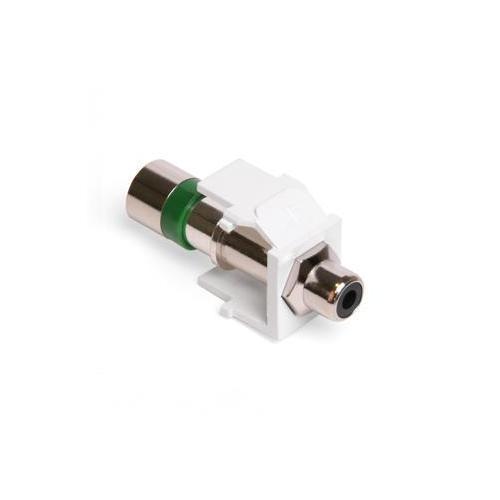

Leviton®, 40782-REW, RCA Compression Connector, Snap-In Connector, RG6/RG6Q Cable, Surface Mounting, Brass, Black, Nickel Plated, 1.7 in L x 0.76 in W x 0.64 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/QuickPort_40782_REW_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/QuickPort_40782_REW_Specification_Sheet.pdf

• Compatible with all QuickPort® wallplates and housings
• Combines QuickPort® housing with RCA compression connector for fast installation
• Terminate using the Leviton mater compression tool (40989-CPT)
• Designed for termination of RG6 quad shield cable
• The connector shall be constructed with brass and a nickel finish, and the insert shall be available in a variety of colors to designate application, including red, yellow, blue, black and green
• The connector shall feature a radial compression design, providing 360 deg electrical continuity
• The return loss shall be greater than 30dB to 1GHz, and the connector shall be able to withstand greater than 40 lbs pull force
• Less than 20 lbs maximum insertion cable
• Greater than 40 lbs pull force
• Greater than 5000 M at 100 VDC insulation resistance
• Less than 1 KVAC dielectric strength
• Greater than 30dB to 1GHz return loss
• It features a radial compression design providing a secure termination on RG6 quad shield cable
