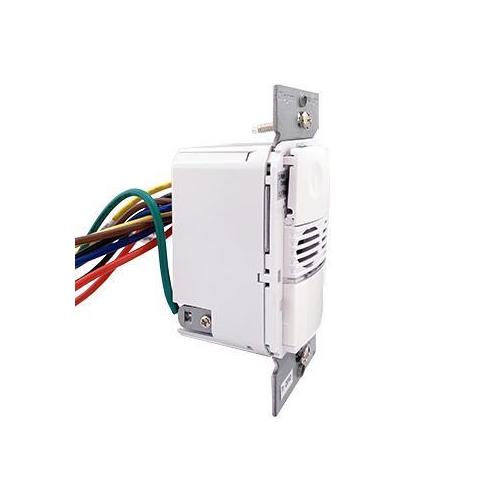

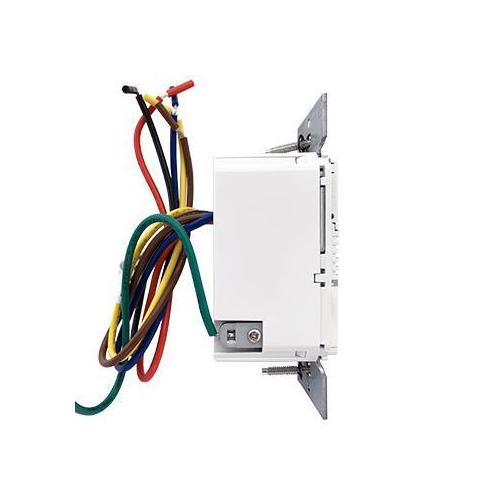

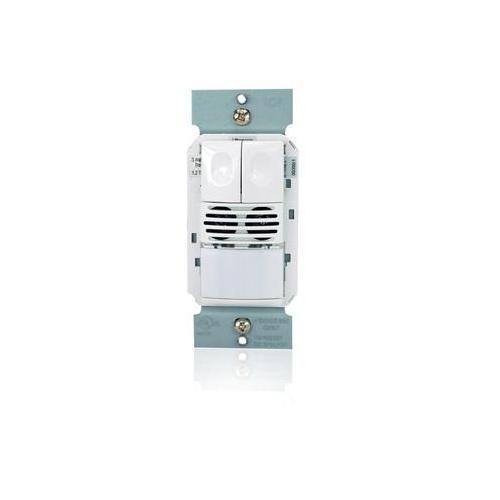

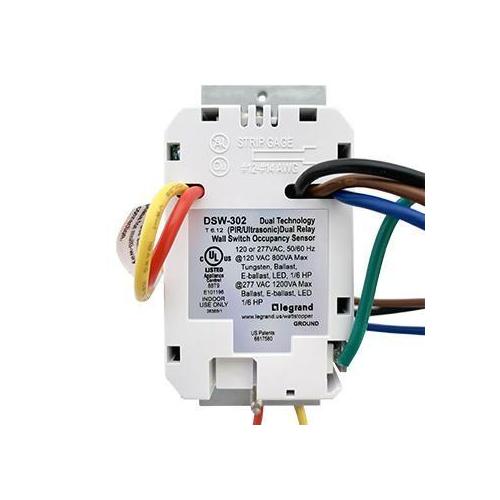

The DSW-302 dual technology wall switch sensor turns lights off and on based on occupancy and contains two relays for controlling two independent lighting loads or circuits. It combines the benefits of passive infrared (PIR) and ultrasonic detection technologies for high sensitivity to small and large movements. The DSW-302 replaces existing wall switches and fits behind a standard decorator wallplate .

WattStopper® Wall Switch Occupancy Sensor, Dual Technology Dual Relay, Series: DSW, 120/277 VAC, 0 to 1200 W Power, Passive Infrared/Ultrasonic Sensor, 1050 sq-ft Coverage, 180 deg Viewing, 5 to 30 min Time Delay, LED Lamp, Flying Lead Connection, Automatic On/Off, Manual On/Off Control Output, 35 deg C, Plastic, White, 2.73 in L x 1.75 in W x 1.81 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WattStopper_DSW301W_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WattStopper_DSW301W_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WattStopper_DSW302LA_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/WattStopper_DSW302LA_Specification_Sheet.pdf

• Color-matched lens and low profile for appealing design
• Defaults to Manual-ON operation for maximum energy savings
• Retrieving data
• Wait a few seconds and try to cut or copy again
• High sensitivity and dense coverage for exceptional performance
• Two relays for control of two separate lighting loads or circuits
