GE General Purpose Transformer, Type QL Dry Type, 480 VAC Primary, 208Y/120 VAC Secondary, 112.5 kVA Power, 60 Hz Frequency, 3 ph, 7 Taps, Lug Connection, Flange Mounting, NEMA 2 Enclosure, 40 deg C, 42.2 in H x 31.8 in W x 24 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_9T10A1005_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_9T10A1005_Specification_Sheet.pdf

• No weld design an industry first
• Comprehensive factory testing assures quality
• Unique core and coil design makes QL transformers among the quietest available
• GE type QL transformers meet DOE 2016 efficiency standards
• Aluminum or copper windings and utilize a UL recognized 220 deg C insulation system
• Quiet performance
• Outward facing mounting feet lug kit included

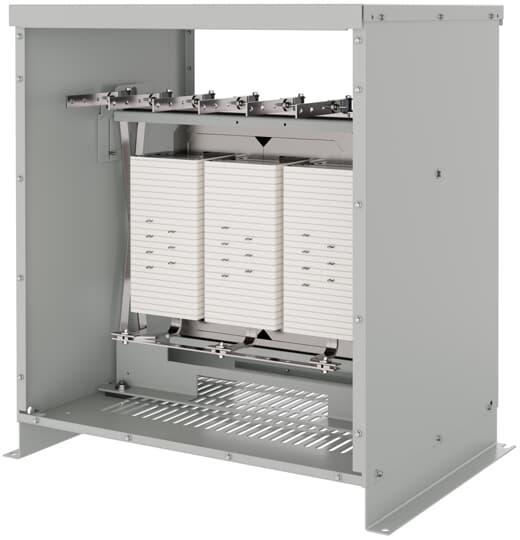

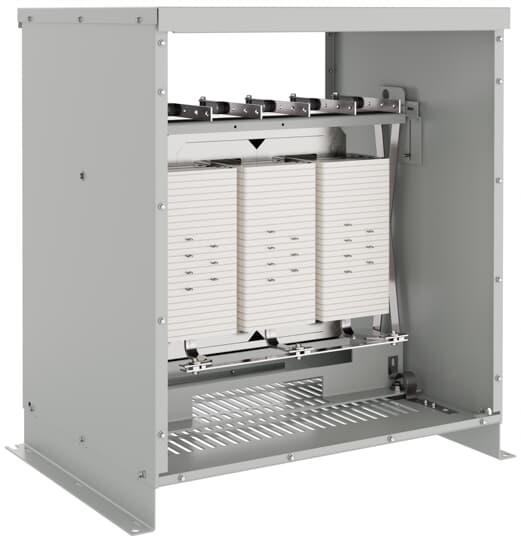

• Core and coil assemblies are mounted on rubber isolation pads to reduce noise
• Bolted coil terminations are more reliable than welded terminations and they eliminate weld failures and problems associated with welding and weld splatter
• 1-piece front/back is easily removable for service

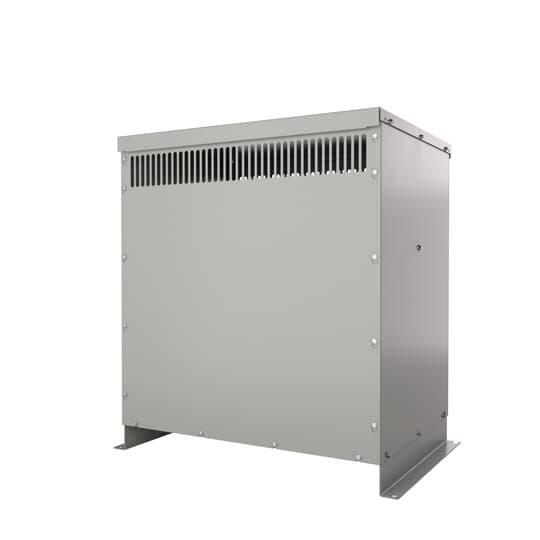

• NEMA 2 drip proof enclosure is standard weathershield kits are available for conversion to NEMA 3R outdoor configuration
• Qualified to the seismic requirements of IEEE-693-2005 and IBC-2012 and CBC 2013
• Robust packaging with top and side protection protects against shipping damage
• Accessible mounting flanges with front/back slotted mounting holes make installation easier
• 100% factory tested for shorts and coil integrity, current and loss, voltage, impedance and noise
• Clear, comprehensive documentation and labeling 10A1004
• 10 kV basic insulation level
• K1 factor rated transformer
• 4.1% impedance
