The I-BEAM® fluorescent high Bay™ is an ideal one for one replacement of common metal halide high Bay™ systems. The fluorescent I-BEAM® fixture performs at mounting heights from 15 to 40 ft. Certain airborne contaminants can diminish integrity of acrylic.

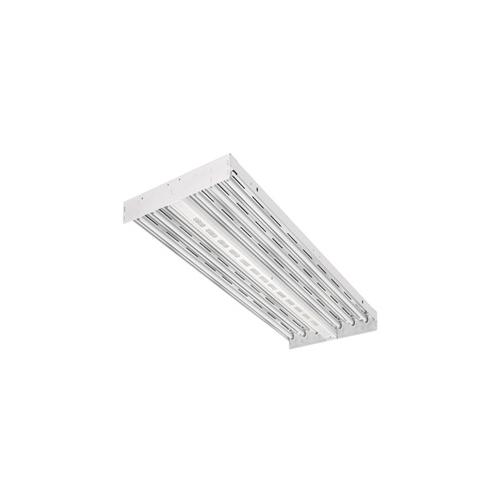

Lithonia Lighting®, IBZT5 6L, High Bay Lighting, Contractor Select Narrow Distribution, Series: IBZ, 120 to 277 VAC, T5 Fluorescent Lamp, 54 W Lamp, 2-Pin Medium Lamp Base, 6 Lamps, Electronic/Programmed Start Ballast, SO White Cord 600 VAC, Class P Insulation, Suspended Mounting, Steel Housing Material, High Gloss/Baked White Enamel Housing Finish, 48-1/8 in L x 13-1/4 in W x 2-3/8 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_I_BEAM_IBZ_654L_GEB10PS90_Brochure.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_I_BEAM_IBZ_654L_GEB10PS90_Brochure.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_I_BEAM_IBZ_654L_GEB10PS90_Instruction_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_I_BEAM_IBZ_654L_GEB10PS90_Instruction_Sheet.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c5372fe0b42a3ba1ef8bdb43f91c15650c82fa78ac72328f90c1765f7970a3d5.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c5372fe0b42a3ba1ef8bdb43f91c15650c82fa78ac72328f90c1765f7970a3d5.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5f935439b3a1f6dc831ed9a47306380a6e0c852b96bfb2d191e3263e149499bb.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5f935439b3a1f6dc831ed9a47306380a6e0c852b96bfb2d191e3263e149499bb.pdf

• The I-BEAM® IBZ fluorescent high Bay™ is ideal for new construction and renovation projects
• Access plate on the back of channel housing allows for quick and easy wiring
• Rugged fixture construction coupled with excellent fixture performance
• Channel is formed of heavy duty code gauge steel to stand-up to the most demanding elements
• Lamp holder assembly protects from incidental damage to reflectors during installation
• Channel is high gloss white baked enamel, five stage iron phosphate pretreatment ensures superior paint adhesion and rust resistance
• Narrow distribution is ideal for narrow or aisle lighting applications and features precision formed segmented optics utilizing Alanod® MIRO® 4 specular aluminum reflectors
• Provides 95% reflectivity and warranted for 25 years
• Thermally protected, resetting, class P, HPF, a sound rated electronic ballast
• Suitable for suspension by chain, cable or hook mono point hanger
• It is a one-for-one replacement of common metal halide high bay systems in applications including manufacturing, warehousing, commercial and industrial facilities at mounting heights from 15 to 40-feet
• With IBZ fixtures, the reflectors tightly control the distribution of light and effectively manage lamp heat to increase the overall efficiency
• Not a dimmable ballast
• MVOLT 120-277V ballast accommodates most electrical requirements
• Hours of life based on the lamp used with the fixture
• Emergency battery back-up not included in this version
• Buy with confidence with a 5-year limited warranty
