Designed for commercial and industrial applications where safety, high performance and continuity of service are essential. listed to UL standard 98 enclosed and dead front switches. suitable for use as service equipment when installed in accordance with the national electrical code certified to CSA standard 22.2 no 4-04 enclosed and dead front switches. meets or exceeds NEMA KS1 standard for enclosed switches, type HD. fusible and non-fusible switches available (consult BuyLog for interrupt ratings). quick-make, quick-break mechanism. 60/75 deg C conductor rating. full cover interlocks.

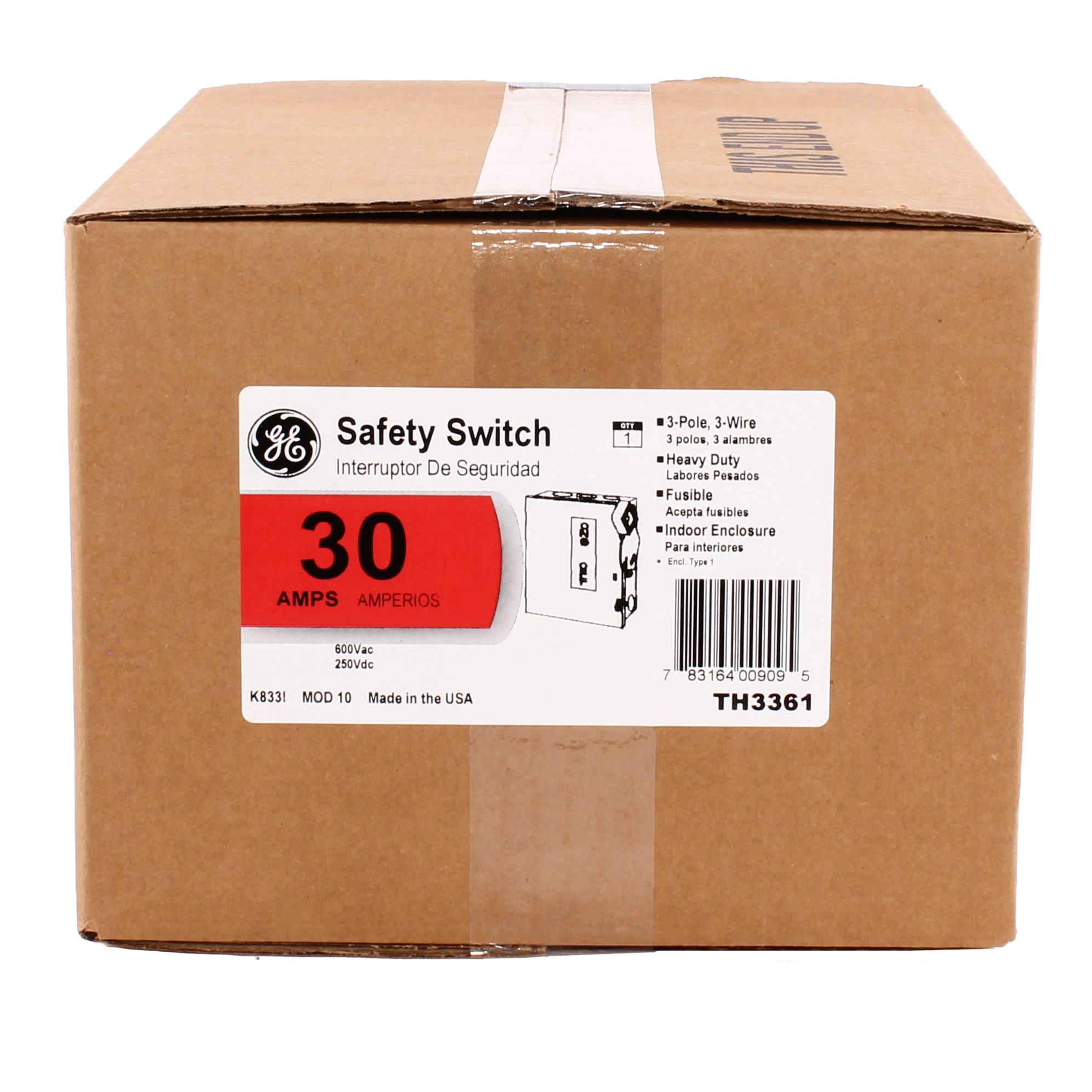

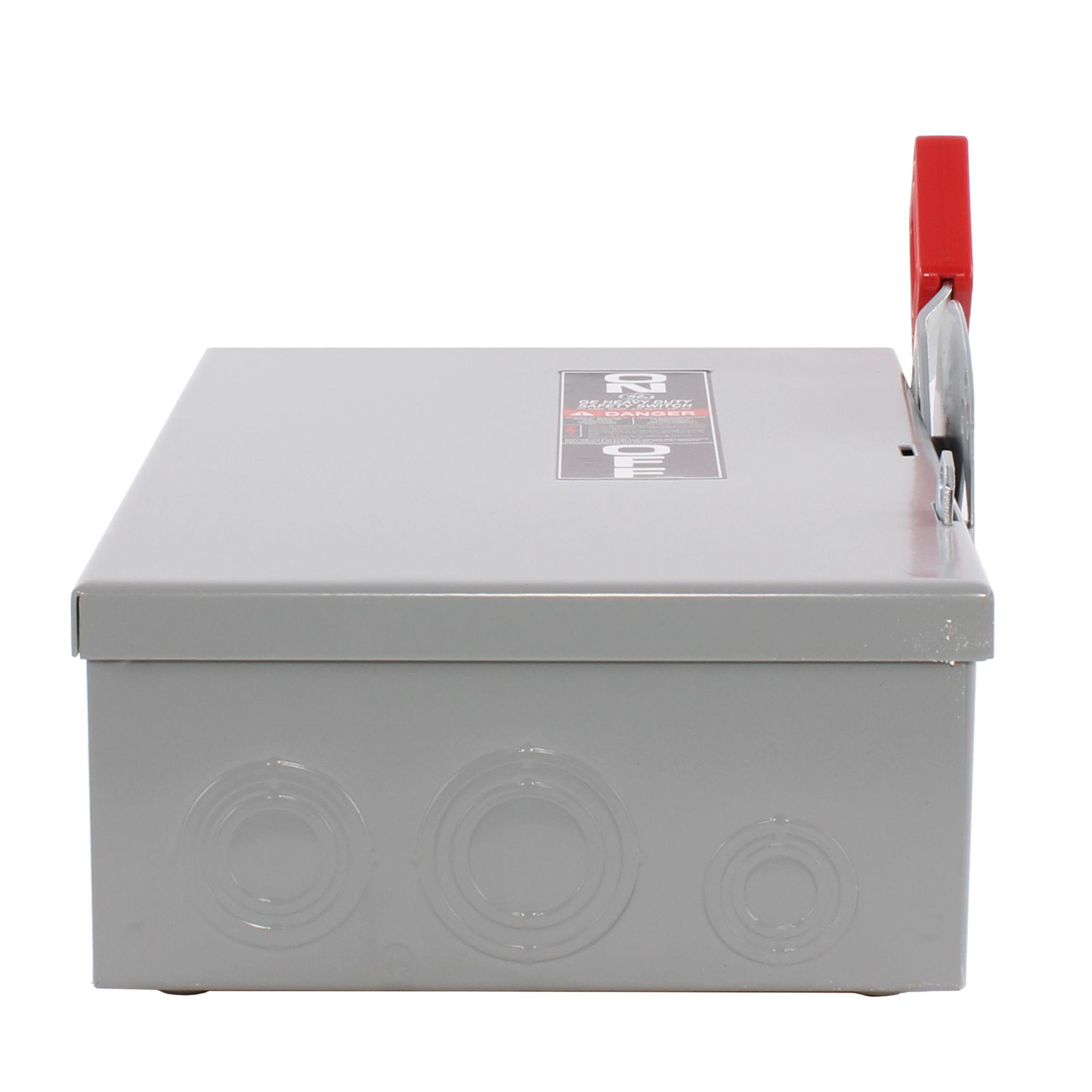

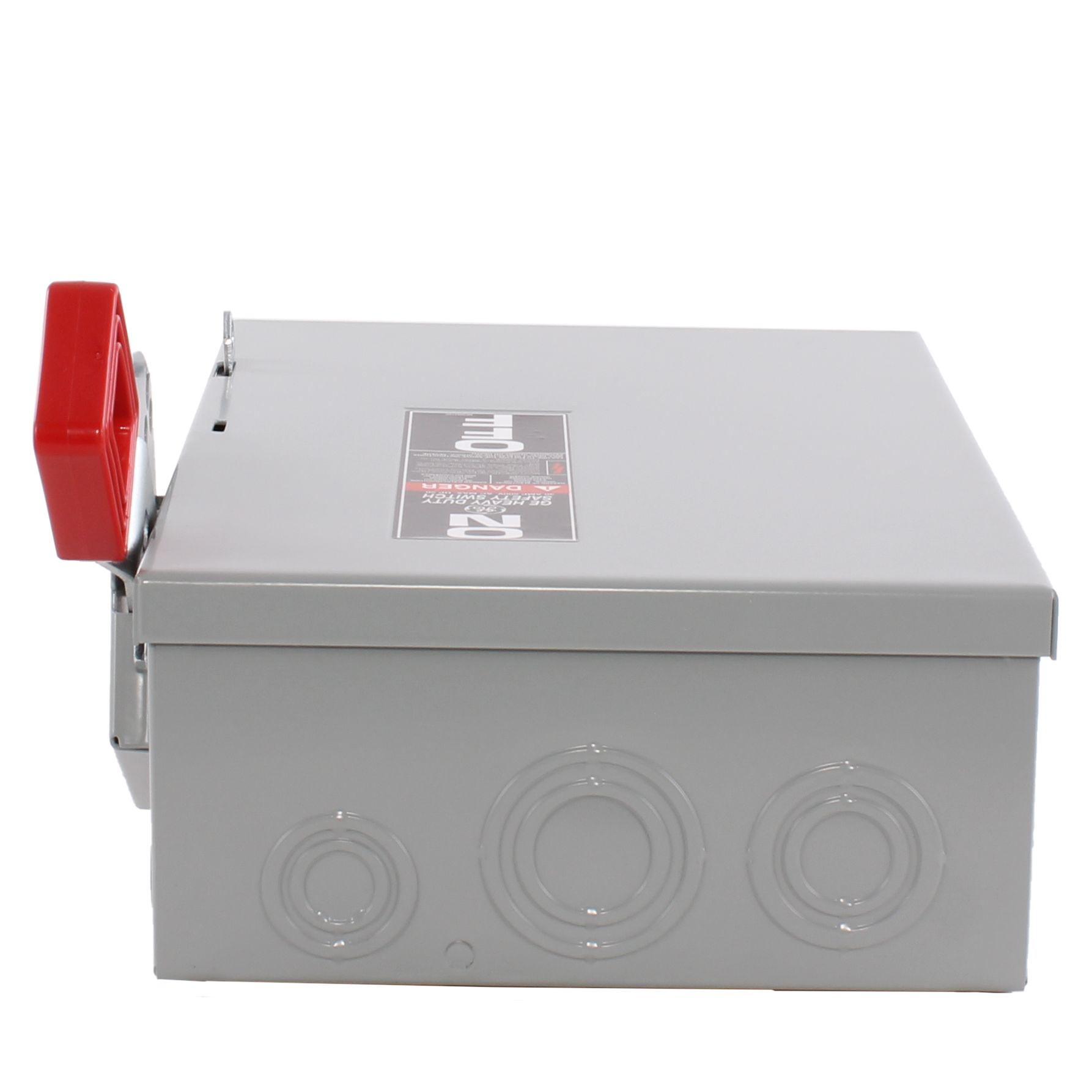

GE Spec-Setter™ Safety Switch, Fusible Heavy Duty, Series: TH Series, 600 VAC, 30 A, 7-1/2 hp Standard Fuse/20 hp Time Delay, 3 ph, 50/60 Hz Frequency, 3 Pole, 3 Wires, 200 kA Short Circuit, Handle Actuator, NEMA 1 Enclosure, Surface Mounting, 60/75 deg C, 12.6 in H x 8.3 in W x 4 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TH3361_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TH3361_Specification_Sheet.pdf

• Donut handle ideal for hook stick operation and accepts 3 padlocks in the off position
• Direct drive, quick-make, quick-break mechanism "snaps" contacts open and closed providing positive on/off indication
• Self-leveling, 3-point mounting system
• Coin-proof, defeatable interlock
• Visible confirmation of plated blade contact positions
• Spring reinforced fuse clips assure reliable contact for cool operation
• With class R fuses or J fuses, 30 to 600 A switches have UL listed short circuit rating of 200000 rms symmetrical A
• Switches rated 800 to 1200 A use class L fuses and have a UL listed short circuit rating of 10000 rms symmetrical A
• UL listed as service entrance equipment when installed in accordance with the national electric code
