PowerMark Gold™ load centers lower your costs by making installation faster and easier, increasing application flexibility and reducing inventory requirements. At the same time, they deliver obvious and significant advances in design, function and quality.

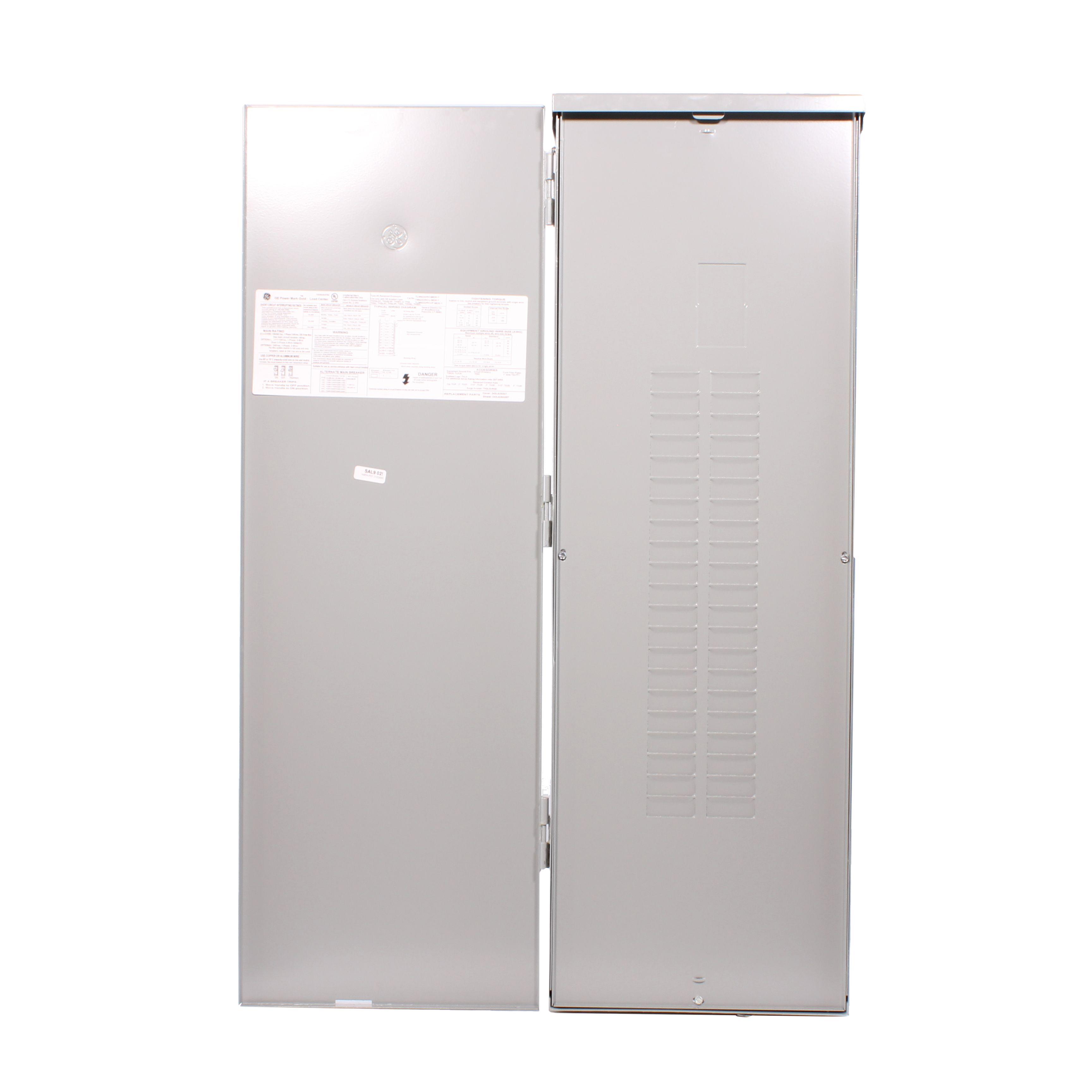

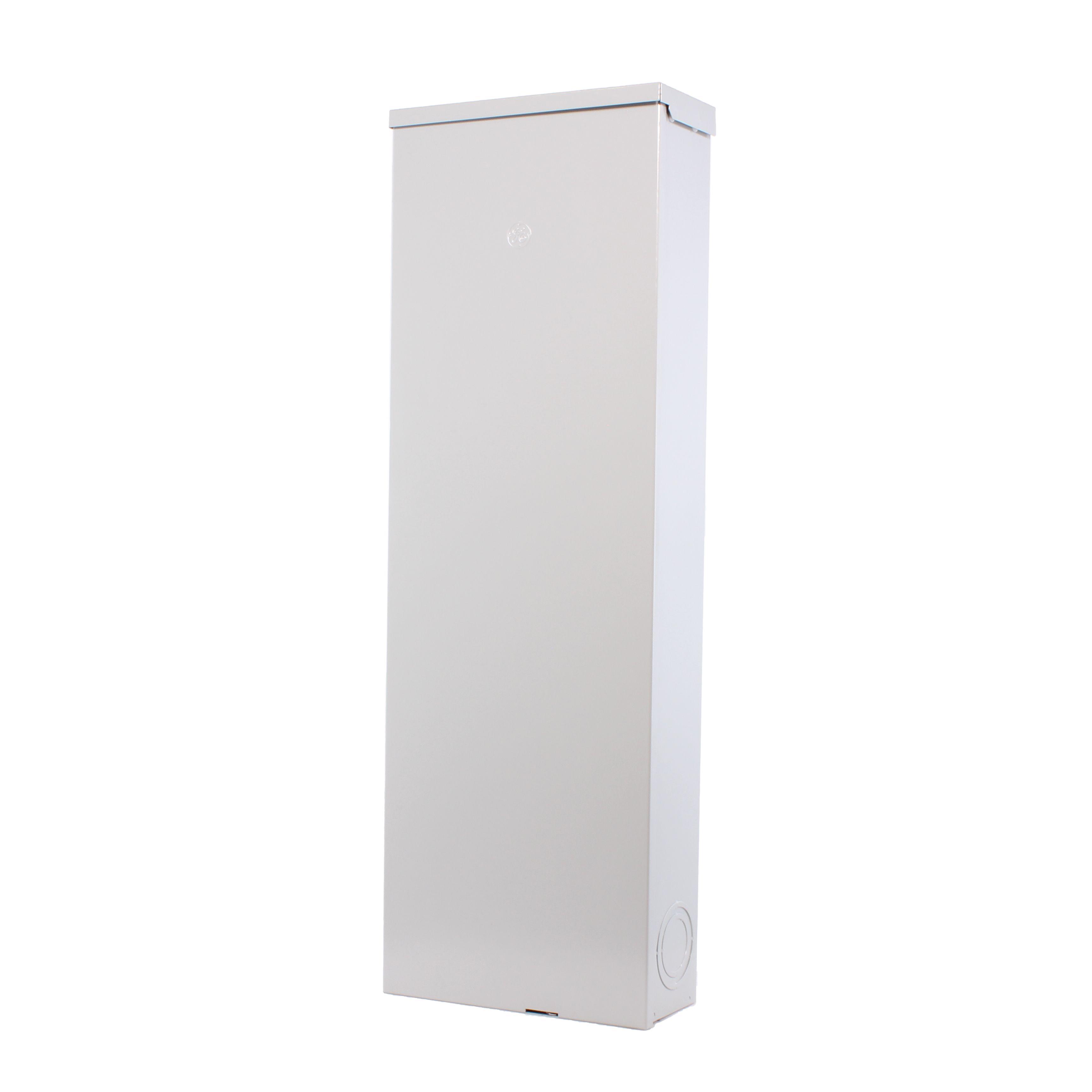

GE PowerMark Gold™ Main Lug Convertible Load Center, 1-Phase Standard, Series: TLM, 120/240 VAC, 225 A, 1 Pole, 65 kA Interrupt, 42 Circuits, THQL/THQP Breaker, 3-Wire Wiring Configuration, 12/16/20/24/40/42 Spaces, 1 AWG to 300 kcmil, 2/0 AWG to 300 kcmil Wire, Plug-In Mounting, NEMA 3R Enclosure, 14-21/32 in W x 6-13/32 in D x 43-1/4 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TLM4222RCU_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TLM4222RCU_Specification_Sheet.pdf

• Main lug models field convertible to main breaker
• Split neutrals extend the full length of the interior for ease of wiring
• Entire main lug line converts easily to main breaker
• Straight through main wiring
• Compact box maintains optimum wire bending space
• Main lug loadcenters offer an economical solution for subpanels and similar applications
• All main lug units 125 A and above convert easily to main breaker
• 60/75 deg C conductor rating
• (42) 1 in space, (12)/(16)/(20)/(24)/(40)/(42) 1/2 in space
• Suitable for use as service entrance equipment when Installed in accordance with the National Electrical Code® 22 kAIC RMS symmetrical, except where noted 6 to 42 circuit devices UL listed for bottom mounted lugs by installing complete unit (box, interior and front) upside down
• 22kAIC RMS symmetrical, except where noted
• 6 to 42 circuit devices UL listed for bottom mounted lug by installing complete unit box, interior and front upside down
