The TQD Line of devices include thermal magnetic molded case circuit breakers and molded case switches. The devices are complete with Cu/Al line and load lugs.

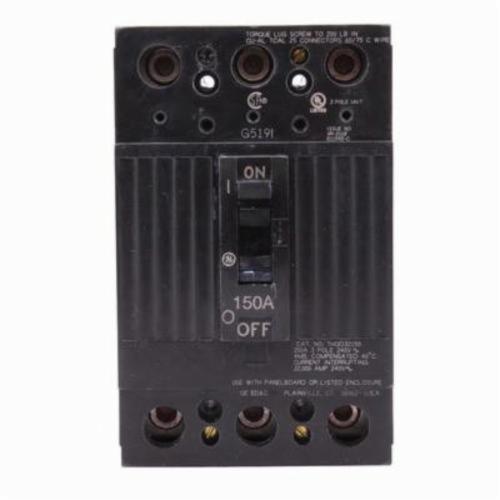

GE QLINE™ Molded Case Circuit Breaker, Type THQD Compact, 240 VAC, 150 A, 50/60 Hz, 22 kA Interrupt, Q-Line Frame, LI/Non-Interchangeable/Thermal Magnetic Trip, 3 Poles, 1 Phase, Pivot/Toggle Handle Actuator, Line/Load Lug, 10 to 50 deg C, 6-5/16 in H x 4-1/8 in W x 3-3/8 in D, Plastic

• Application Guide https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/GE_THQL1115GFEP_Application_Guide.pdf
• Catalog https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/GE_SELA24AT0030_Catalog.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/GE_THQD32150WL_Datasheet.pdf
• IDW ITEM DOCUMENTS https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1503649228070.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520580574046.pdf

• Molded case is molded from high mechanical and high dielectric strength engineered plastic
• Trip indication is shown by handle position midway between ON and OFF, to reset the trip mechanism, move the handle to extreme OFF, then to ON position
• Quick make, quick break, trip free mechanism minimizes arcing during breaker operation, contacts cannot be ''teased'' into position
• Trip free mechanism is independent of manual handle control, the breaker trips under short circuit or overload, even though the operating handle is held in ON position
• VERIFIER™ "Twist-to-Trip" and ''Push-to-Trip'' mechanically simulates over current tripping through actuation of linkages not operated by the ON-OFF handle
• Common trip bar assures instant disconnect of all conductors when an overload or short circuit occurs on any one conductor in the circuit or an accessory trip device operates
• Silver alloy contacts combine the conductive properties of silver with other elements for clean, positive electrical contacting, pitting and burning are minimized for longer contact life
• Arc chutes of heat absorbing, insulating material and metal grid plates quickly ''extinguish'' arcs
• UL listed lugs for copper or aluminum cable, at full frame rating, easy access and simple, straight-in wiring
• 22 kA at 120 VAC, 22 kA at 120/240 VAC, 22 kA at 240 VAC interrupt rating
