Mill duty switches are available in 30 to 600 A, 600 VAC, 600 VDC maximum, fusible and non-fusible units and in NEMA Type 4/4X (water and dust-tight, corrosion resistant) and Type 12 (drip and dust-tight) enclosures. Horsepower ratings are to UL Listed maximums, published I2t ratings are available. Short circuit ratings are UL Listed to 200000 RMS symmetrical amperes when Class J or R fuses are installed.

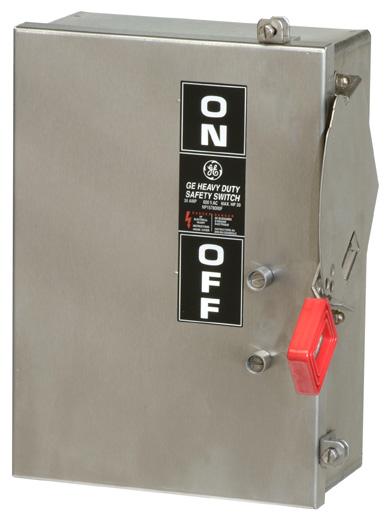

GE Spec-Setter® Safety Switch, Type TH Heavy Duty Dusttight Fused Mill Duty Standard Watertight, 600 VAC, 125/250 VDC, 200 A, 30 hp, 40 hp, 50 hp, 60 hp, 150 hp, 1 ph, 3 ph, 50/60 Hz, 3 Pole, 3 Wires, 200 kA Short Circuit Current Rating, Donut Handle Actuator, Class J/R Insulation, NEMA 4/4X/12, 3/4-Point Welded Bracket Mount, Line/Load Lug Terminal, 14.4 in W x 5 in D x 35.1 in H, 304 Stainless Steel

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TDT3321_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TDT3321_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TH2223M_Technical_Drawing.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TH2223M_Technical_Drawing.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_415be71cdd9464440343d19b96b387143ccc07c79e5df9112035d008c921318d.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_415be71cdd9464440343d19b96b387143ccc07c79e5df9112035d008c921318d.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TEB111010_Warranty.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TEB111010_Warranty.pdf

• Bright red "donut" handle molded from rugged SE1 noryl thermoplastic is easy to see, easy to grip and ideal for hook stick operation, it accepts 3-padlocks in OFF position
• Manual interlock defeat lever permits contact inspection when switch is OFF
• Standard NEMA 12 enclosure protects interior from dust, lint, fibers, coolants, metal filings and other non-corrosive contaminants, stainless steel NEMA 4/4X enclosure additionally shields interior from hose directed water, splashing and falling liquids and interlocks on all enclosure covers assure gasket compression before switch can be turned ON
• Efficient space saving enclosures, 3-point mounting, unobstructed side wiring gutter, easily removable cover and interior
• Spring reinforced fuse clips assure reliable contact for cool operation, suitable for Class H, K, J or R fuses
• Equipment ground lugs provided, lugs approved for both copper and aluminum wire, 60/75 deg C rated tang lugs are field convertible to compression (crimp) connectors
• Highly visible ON/OFF label takes the guesswork out of safety and gives a clean, modern appearance
• 60/75 deg C conductor rating field convertible to compression connectors
• Full cover interlocks
• Quick-make, quick break mechanism
• Dead front switches
• Suitable for use as service equipment when installed in accordance with the National Electrical Code®
• 25 hp at 480 VAC 1-phase NEC Standard, 50 hp at 480 VAC 3-phase NEC Standard, 50 hp at 480 VAC 1-phase time delay, 125 hp at 480 VAC 3-phase time delay, 30 hp at 600 VAC 1-phase NEC Standard, 60 hp at 600 VAC 3-phase NEC Standard, 50 hp at 600 VAC 1-phase time delay, 150 hp at 600 VAC 3-phase time delay, 40 hp at 250 VDC horsepower rating
