The I-BEAM® IBH LED luminaire gives even budget-conscious customers a very reliable LED solution. In addition to its low initial cost, the fixture saves up to 60% in energy costs over HID and also costs less to operate than popular fluorescent products - not to mention the maintenance savings! When paired with occupancy sensors, dimming and intuitive controls, you save even more energy and extend the life of the fixture.

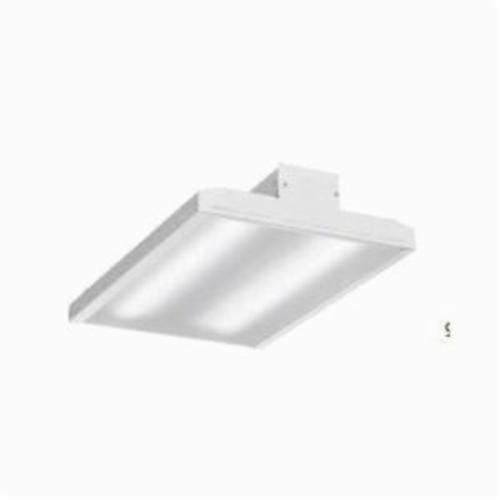

Lithonia Lighting® I-BEAM® High Bay Fixture, Series: IBH, 120/277 VAC, 112/109 W Fixture, LED Lamp, 100000 hr Average Life, Cool White Light, 4000K Color, 70, Acrylic Lens, 12000 Lumens, Aluminum Housing, 22 in L x 15-1/4 in W x 4-3/8 in H

• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_IBH_12L_HVOLT_Data_Sheet.pdf
• Video Link https://www.youtube.com/watch?v=_r2dPoDiPls

• The IBH LED is available with integrated controls and sensor options (occupancy, photo & dimming) to reduce energy costs and help extend the life of the fixture
• Optional XPoint Wireless controls technology creates a mesh network that communicates between fixtures, sensors and wall stations facility-wide
• Option provides superior lighting management capabilities including granular control that can light zones differently depending on the time of day, season and special event
• With a diffuse lens to control glare, this fixture is suitable for mounting heights from 10 to 40 ft
• Controlled environments such as warehousing, gymnasiums and light industrial spaces
• -40 to 40 deg C operating temperature
• Narrow and wide distributions available to meet both horizontal and vertical light level requirements
• Reflectors feature precision formed optics utilizing reflective Alanod® MIRO-5® aluminum to achieve narrow distribution and white polyester powder coat to achieve wide distribution
• Semi-diffuse lens optional to provide glare control and LED protection
• Suitable for suspension by chain, cable, surface mounting bracket, hook monopoint or single (pendant) monopoint
• Surface mounting is not recommended without optional surface mounting bracket
• Damp location listed
• 70% lumen maintenance at 100,000 hours; predicted life of more than 100,000 hours
• Thermally protected driver standard with 0-10V dimming
