BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 volts, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.

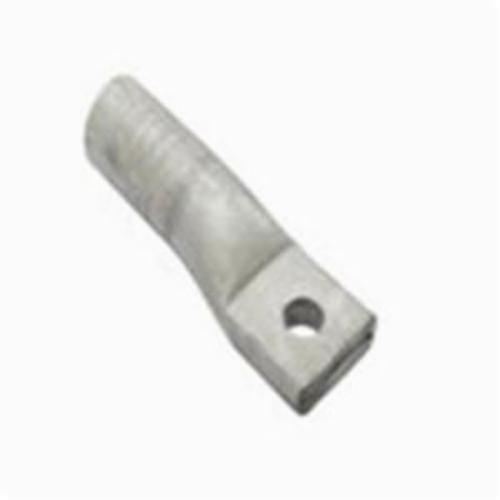

BURNDY® HYLUG Compression Lug, 1-Hole, Series: YA-A, Stranded Copper Conductor, 500 kcmil Conductor, Die Code: 300, 600 VAC to 35 kV, 1/2 in Stud, Standard/Straight Tongue, 1.8 in W x 0.46 in THK Tongue, 5.02 in Overall Length, Long, 1.32 in OD x 2.34 in L Barrel, 2-5/8 in L Wire Stripe, 90 deg C, Aluminum, Pink

• Brochure http://ecat.burndy.com/Comergent/burndy/product/YA34A7
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1518584499699.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/10969/ID-SPE-v1-YA34A7.pdf
• Technical Drawing https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1515127952082.pdf
• Technical Drawing https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/10969/ID-DRW-v1-SD_073935-01.pdf

• Without inspection window
• 0.63 in hole center to end
