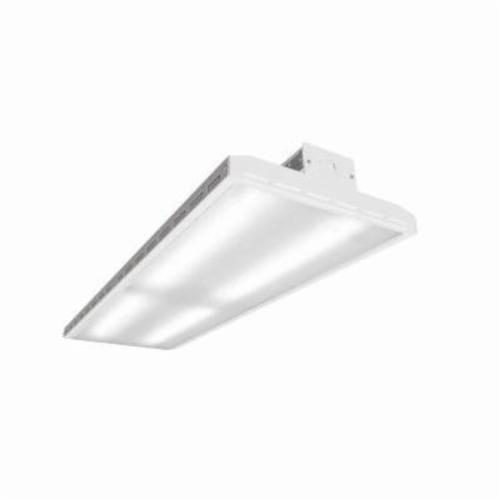

The I-BEAM® IBH LED luminaire gives even budget-conscious customers a very reliable LED solution. In addition to its low initial cost, the fixture saves up to 60% in energy costs over HID and also costs less to operate than popular fluorescent products - not to mention the maintenance savings! When paired with occupancy sensors, dimming and intuitive controls, you save even more energy and extend the life of the fixture.

Lithonia Lighting® I-BEAM® High Bay Lighting, Medium Distribution, Series: IBH, 120 to 277 VAC, 146/142 W Fixture, Static LED Lamp, 146 W Lamp, 100000 hr Average Life, Cool White Light, 4000 K Color Temperature, 70 CRI, Acrylic Lens, 18000 Lumens, Pendant/Suspended Mounting, Aluminum/Steel Housing Material, White Powder Coated Housing Finish, 44 in L x 15-1/4 in W x 4-3/8 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_18f96ae83c3a84bde7e7ab21a040c0a9d65be59f82bd54315fc819a405c406fb.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_18f96ae83c3a84bde7e7ab21a040c0a9d65be59f82bd54315fc819a405c406fb.pdf

• The IBH LED is available with integrated controls and sensor options (occupancy, photo and dimming) to reduce energy costs and help extend the life of the fixture
• Optional XPoint™ wireless controls technology creates a mesh network that communicates between fixtures, sensors and wall stations facility-wide
• Option provides superior lighting management capabilities including granular control that can light zones differently depending on the time of day, season and special event
• With a diffuse lens to control glare, this fixture is suitable for mounting heights from 10 to 40 ft
• Controlled environments such as warehousing, gymnasiums and light industrial spaces
• -40 to 40 deg C operating temperature
• Narrow and wide distributions available to meet both horizontal and vertical light level requirements
• Reflectors feature precision formed optics utilizing reflective Alanod® MIRO-5® aluminum to achieve narrow distribution and white polyester powder coat to achieve wide distribution
• Semi-diffuse lens optional to provide glare control and LED protection
• Suitable for suspension by chain, cable, surface mounting bracket, hook monopoint or single (pendant) monopoint installation
• Surface mounting is not recommended without optional surface mounting bracket
• Damp location listed
• 70% Lumen maintenance at 100000 hr, predicted life of more than 100000 hr
• Thermally protected driver standard with 0 to 10 VAC dimming
