Safe, dependable, and easy. No other connector offers as much as the B-TAP® insulation piercing connector. B-TAP® connectors are great for a wide range of applications such as temporary circuits, emergency repairs, disconnect/reconnect, remodeling, maintenance and repair, street lighting, service entrance, risers in high-rise construction, commercial metering, transformers, secondary midspan tap and much more. Self-insulating and weather-proof, B-TAP® connectors are installed using only a standard box or socket wrench. A breakaway torque nut guarantees a perfect connection every time. The grease filled rubber end caps provide superior water and corrosion resistance, while the insulation design eliminates downtime and power interruptions. That translates into a 60% installed savings compared to split bolts. The exclusive breakaway torque nut simply snaps off when UL torque requirements are met. No more guesswork! B-TAP® connectors can be safely installed on energized systems, eliminating power interruptions and downtime.

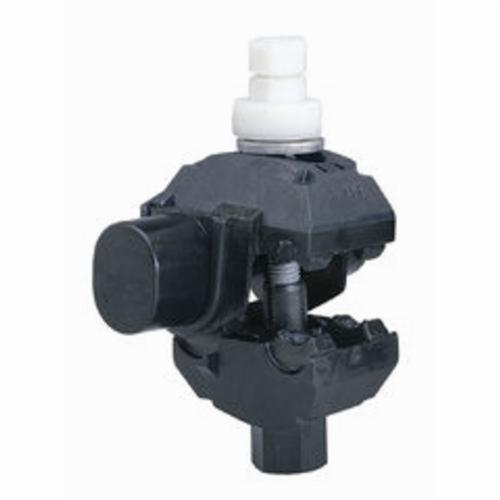

BUCHANAN B-TAP® Piercing Insulated Tap Connector, Insulation-Piercing, Solid/Stranded Conductor, 3 to 4/0 AWG Main, 10 to 2 AWG Cu Solid/Stranded Tap, 8 to 2 AWG Stranded Conductor, 600 VAC, Specifications: 1-Bolt, 2.2 in-lb Torque, 1/2 in Socket, 90 deg C, 1.8 in W x 2.2 in D x 3.1 in H Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BUCHANAN_BTC4_0_10_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BUCHANAN_BTC4_0_10_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BUCHANAN_BTC4_0_10_RoHS.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BUCHANAN_BTC4_0_10_RoHS.pdf

• Breakaway torque nut snaps off when UL torque requirements are met
• Second nut remains for easy connector removal
• Self-insulated housing eliminates the need for tape, safely installs on energized systems
• Grease filled end cap seals end of conductor for superior weather protection
• Grease filled boots protect copper teeth from corrosion and prevent arcing
• Hardened copper teeth pierce insulation and bite into conductors
• Torque regulating nut breaks off when proper tension is reached
• Easy 2 min installation requires only box/socket wrench
• Can be used on copper to copper, aluminum to aluminum, copper to aluminum and aluminum to copper when used in non-tension, insulated applications
• Unique turbo spacer keeps connector wide open for quick and easy installation
• Weathertight connection
