Q-Line® circuit breakers are 1 in wide per pole, compact, thermal magnetic devices designed for residential and commercial applications. the QL breakers are plug-in versions of the Q-Line® used for connection to loadcenters and lighting panels. all Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

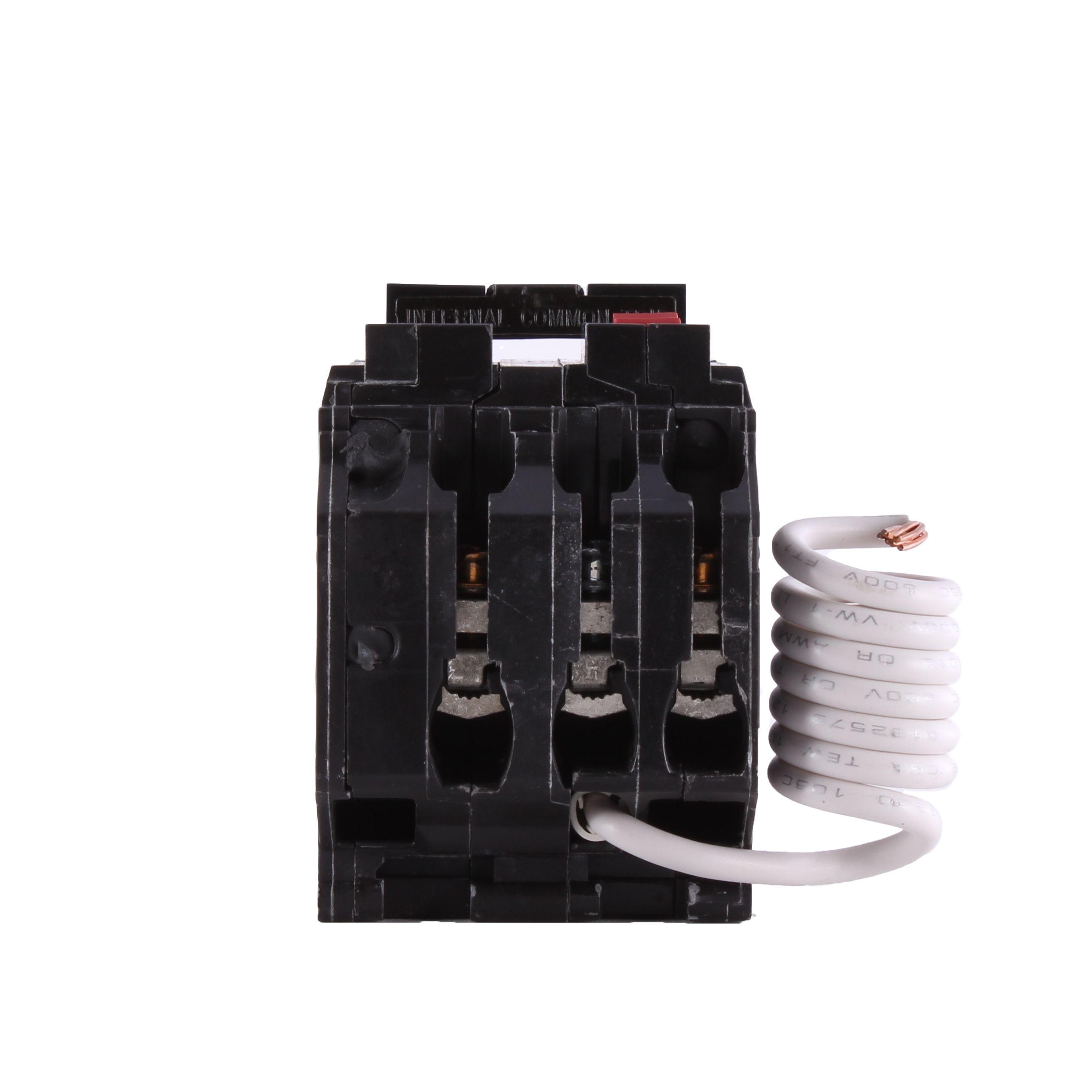

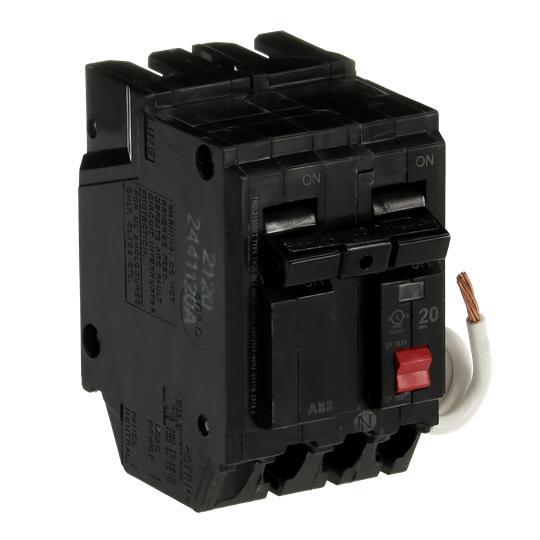

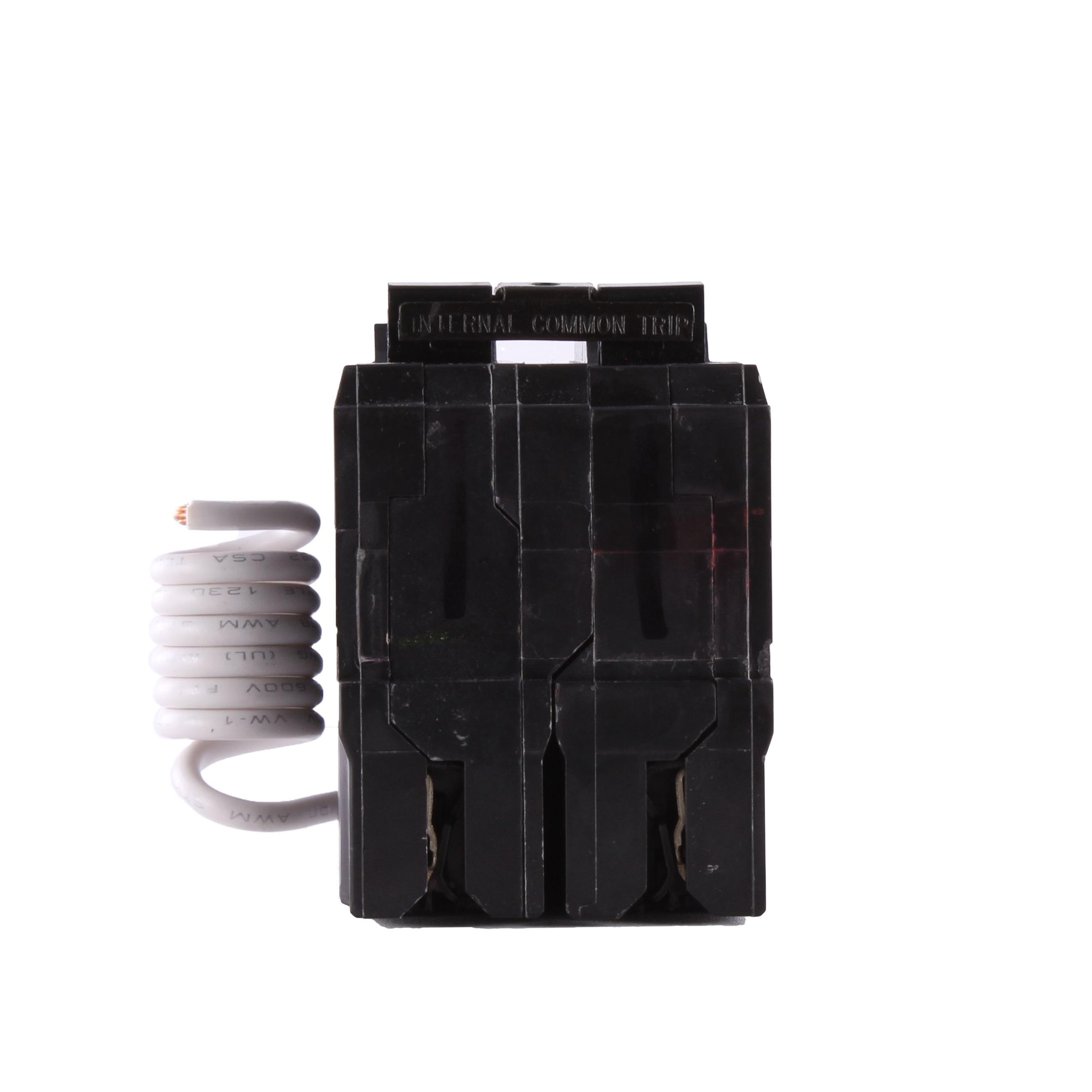

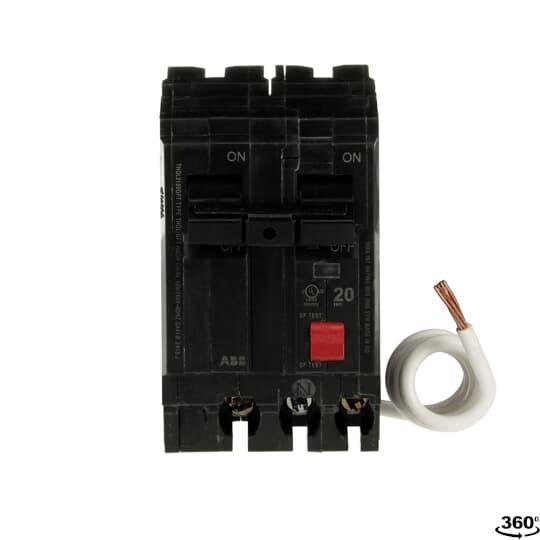

GE Q-Line® Ground Fault Circuit Breaker, Type THQL Model 3 Self-Test, 120/240 VAC, 20 A, 10 kA Interrupt, Q-Line Frame, Thermal Magnetic Trip, 5 mA Trip, 2 Pole, 1 ph, 14 to 8 AWG Cu, 12 to 8 AWG Al Wire, Plug-In Mounting, 3-9/32 in H x 2 in W x 2-3/8 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_THQL2120GFT_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_THQL2120GFT_Specification_Sheet.pdf

• The national electrical code requires GFCI protection of receptacles located outdoors, in bathrooms, garages and spa areas
• This applies not only to new construction, but also to existing homes
• When an electrical outlet is replaced in a location that requires ground fault protection, the new outlet must be GFCI protected, according to the NEC®
• The GFCI circuit interrupter provides protection against overloads, short circuits and ground faults
• It detects very low levels of electrical current leakage (ground faults) and acts quickly to shut off power, preventing serious shock
• Push button test validates the ground fault detection capability of the breaker
• Quick-make, quick-break mechanism
• Fixed long time and fixed instantaneous trip function
• Suitable for reverse feed
• Standard continuous current rated
• Feeder plug-in circuit breakers
• 60 deg C/75 deg F conductor rating
• Box type terminals
• Multi-pole circuit breakers incorporate internal common trip
