The TEY is a 1 in W per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 VAC systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. all TEY circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. TEYD breakers are available in 1, 2 and 3-pole versions, 2 and 3-pole versions can be ordered with auxiliary contact, shunt trip, under voltage release or bell alarm accessories.

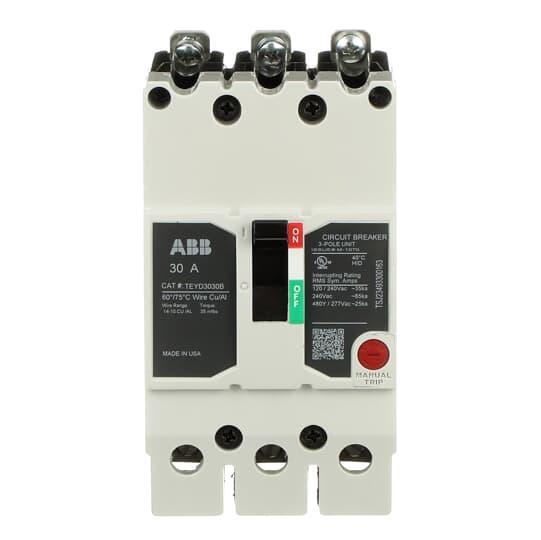

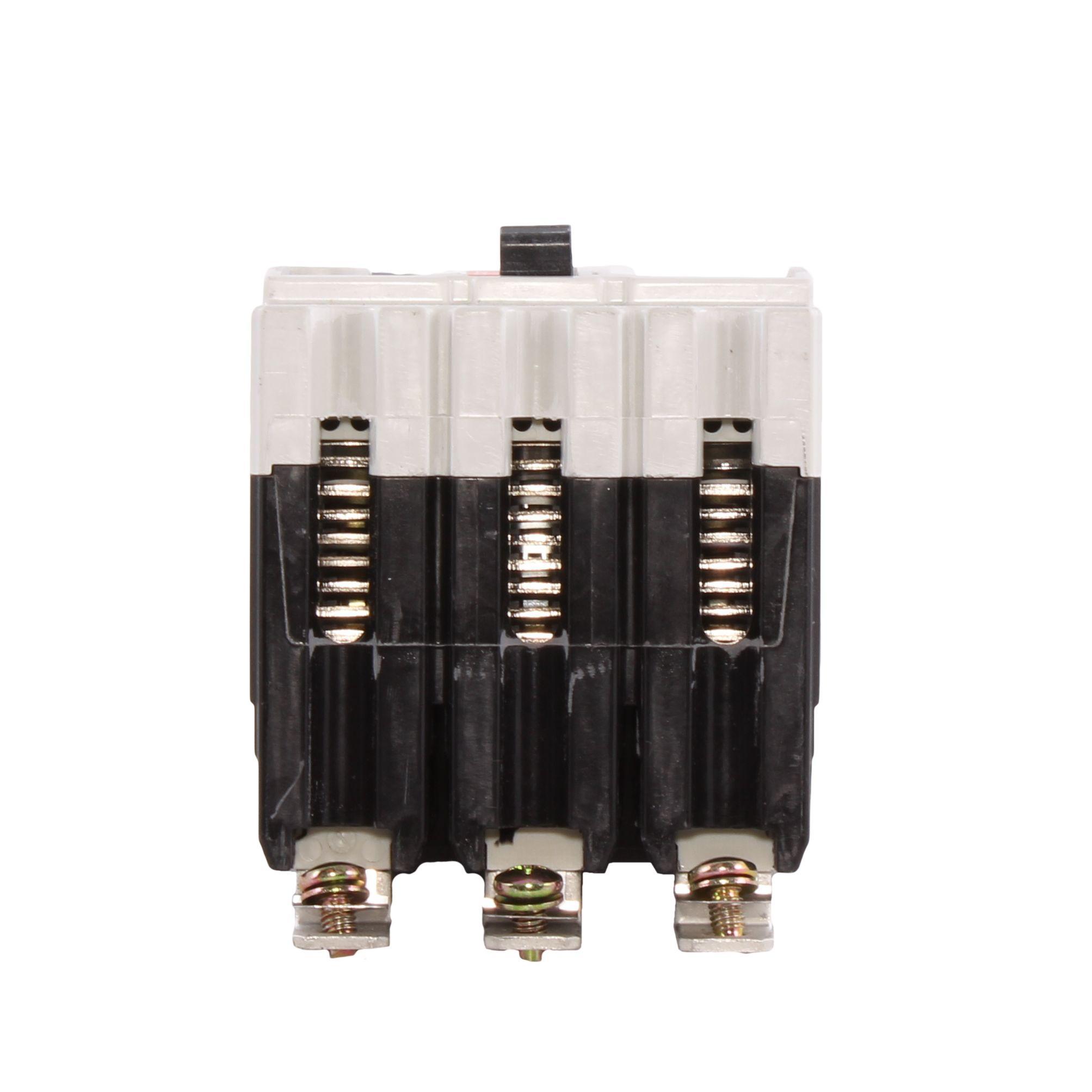

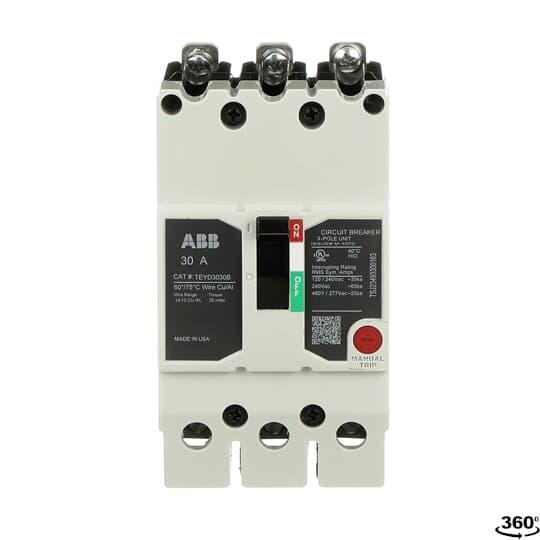

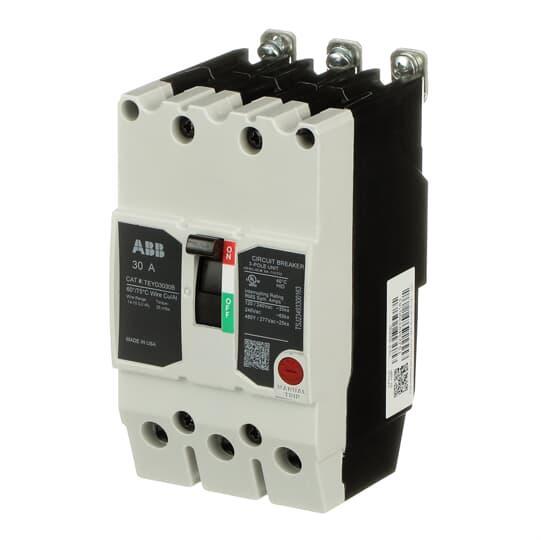

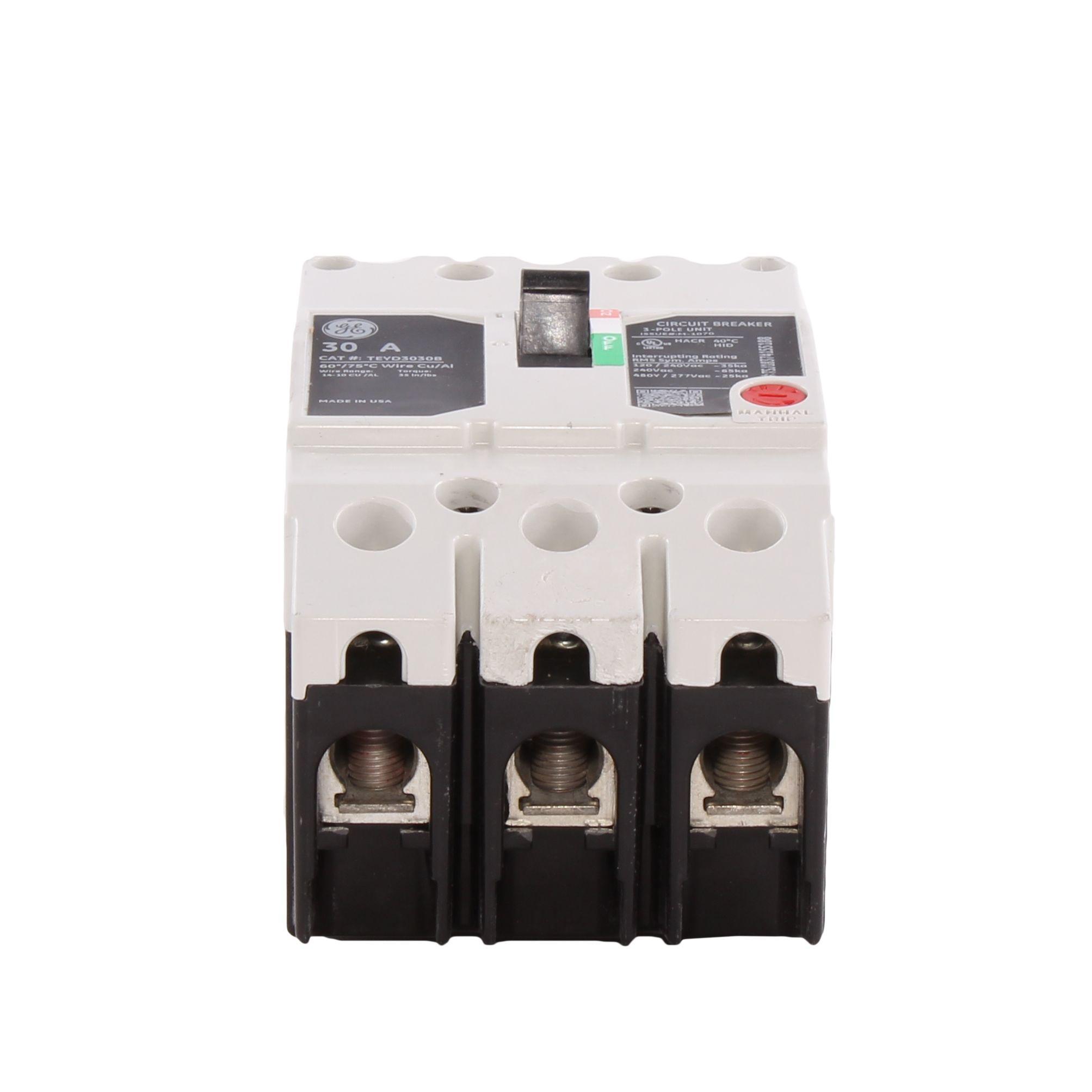

GE Lighting Panel Circuit Breaker, Type TEY Compact, Series: TEYD, 120/240/277/480 VAC, 250 VDC, 30 A, 50/60 Hz Frequency, 25/65 kA Interrupt, TEYD Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Pivot/Toggle Handle Actuator, Load Lug Connection, 10 to 4 AWG Wire, Bolted-On Mounting, 40 deg C, 3 in W x 3-1/16 in D x 5-1/4 in H Dimensions, Plastic

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TEYD3030B_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TEYD3030B_Specification_Sheet.pdf

• Ambient compensated
• Multiple short circuit tiers
• Cost effective protection
• Mounting base for unit mount installations
• 65 kA at 120/240 VAC, 65 kA at 240 VAC, 25 kA at 480Y/277 VAC interrupt rating
