The TEY is a 1 in W per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 VAC systems. the bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. all TEY circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. TEY breakers are available in 1, 2 and 3-pole versions and can be ordered with auxiliary contact and shunt trip accessories.

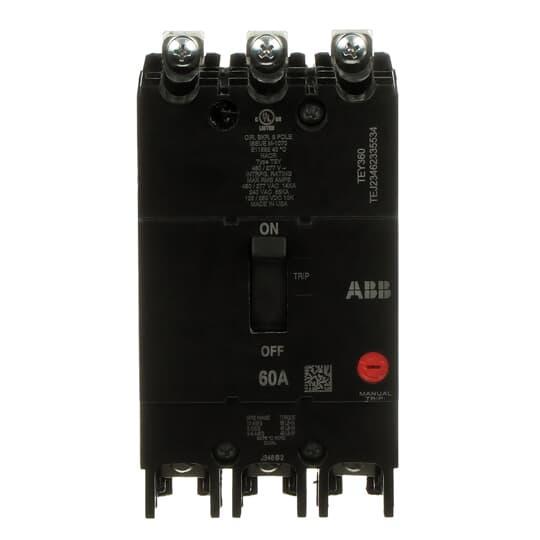

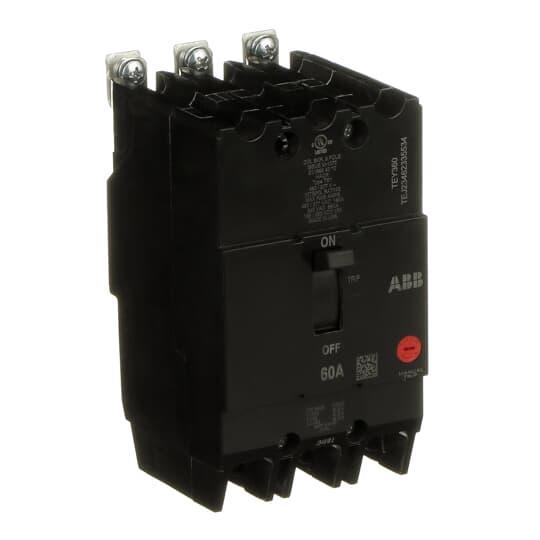

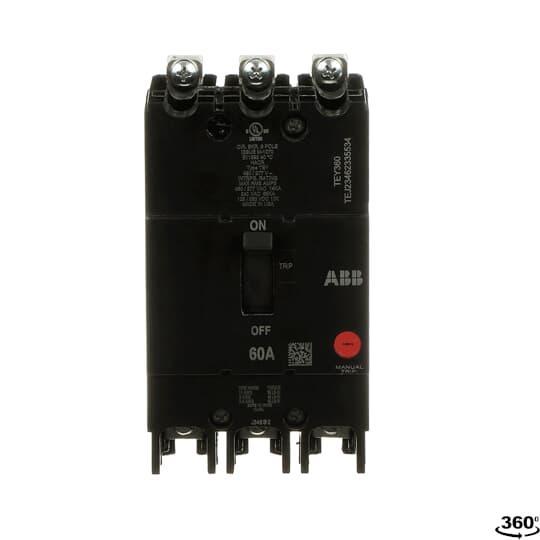

GE Lighting Panel Circuit Breaker, Series: Q-Line®, 277/480 VAC, 60 A, 14 kA Interrupt, TEY Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Load Lug Connection, 14 to 8 AWG, 12 to 8 AWG Wire, Bolted-On Mounting, 40 deg C, 5-1/4 in H x 3 in W x 3-1/16 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TEY360_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TEY360_Specification_Sheet.pdf

• Standard continuous current rated
• EY GO schedule
• Suitable for reverse feed
• HACR, high intensity discharge (HID) rated special marking
• 65 kA at 120/240 VAC, 14 kA at 277 VAC interrupt rating
