Eaton’s M22 pushbutton line is a complete, modular and versatile offering. From field-convertible maintained operators to customizable laser engraved buttons, the M22 pushbutton line provides endless opportunity for flexibility and reduced inventory. Each operator type provides options for ordering as complete or component parts allowing for a perfect fit for each application. All of this flexibility comes in a very rugged design.

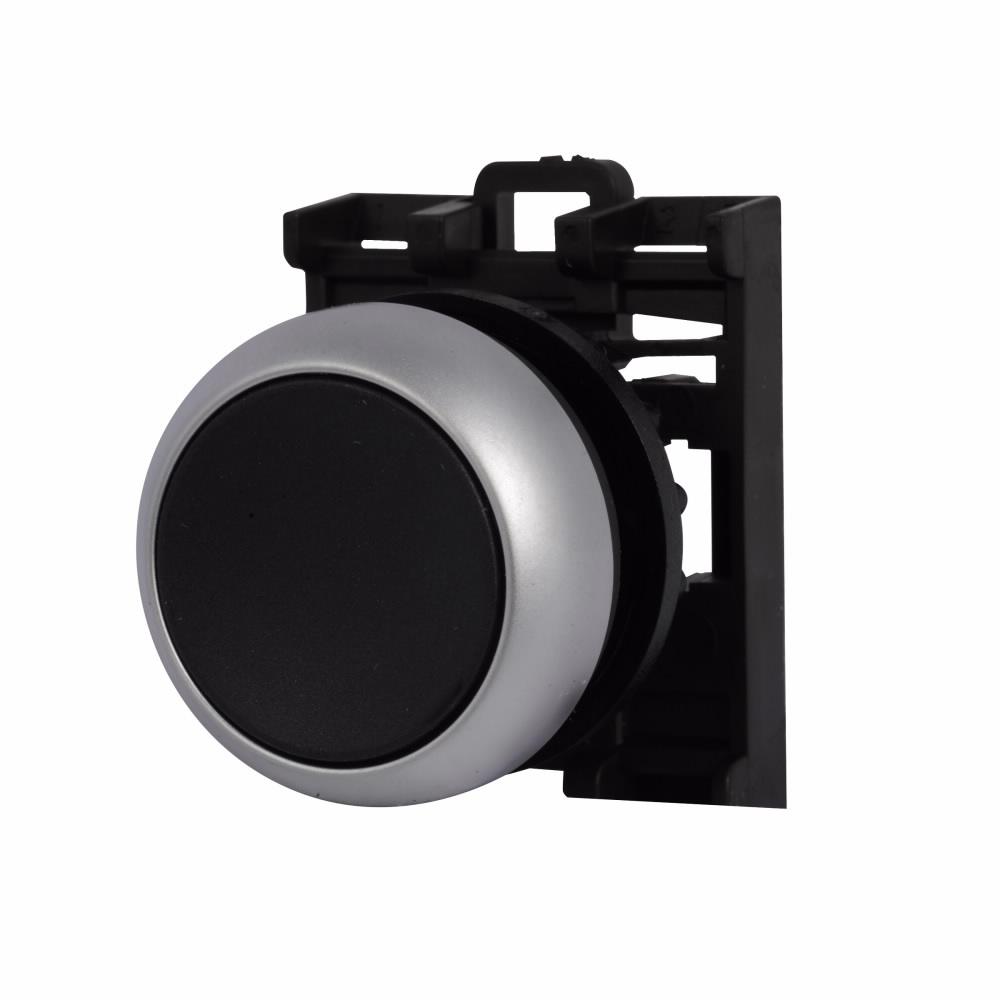

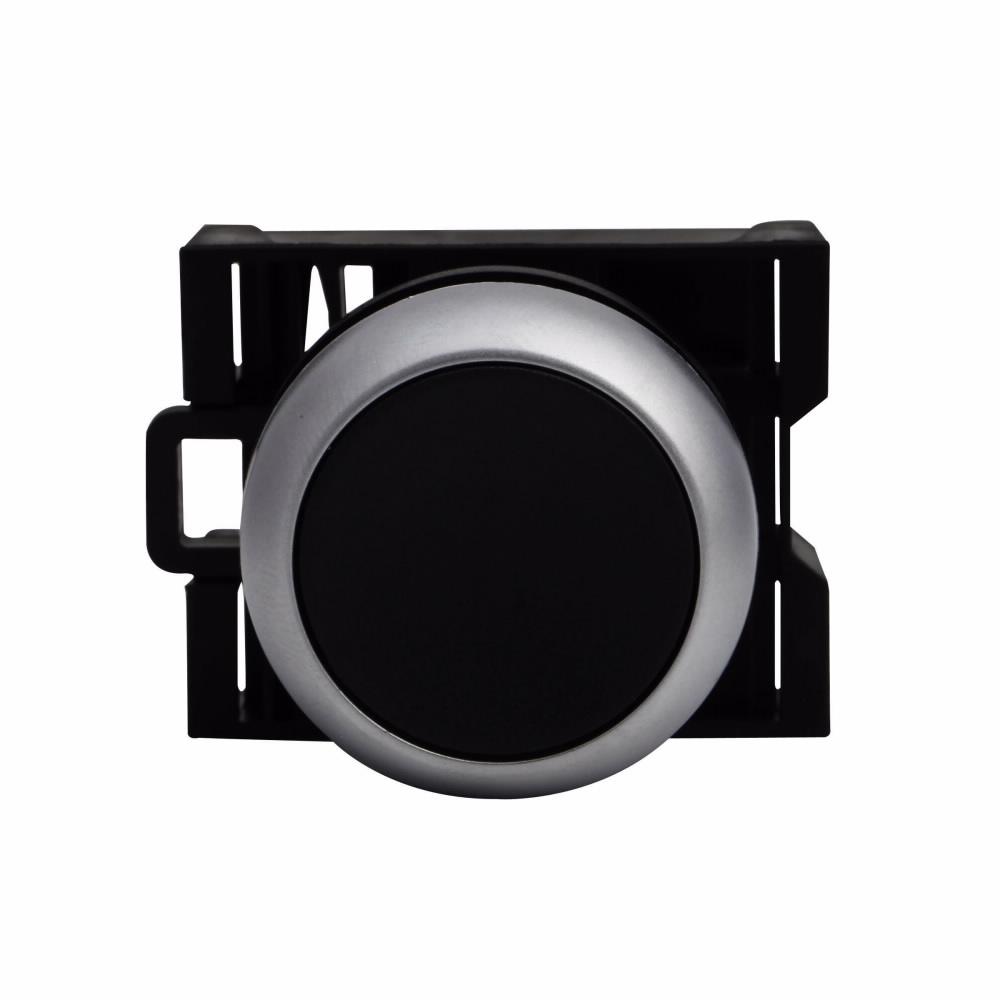

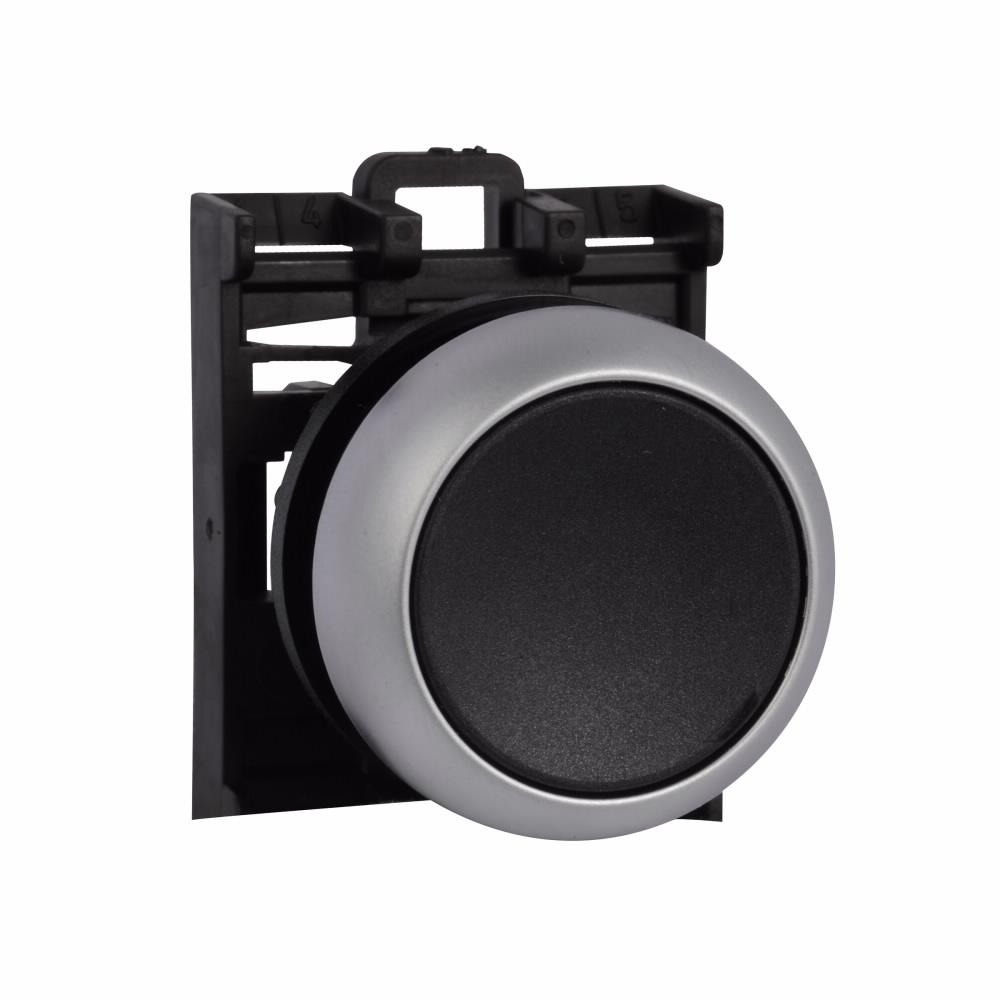

EATON Non-Illuminated Pushbutton Operator, Modular, Series: M22, 22.5 mm Size, Momentary Contact Mode, Flush Button Operator, NEMA 4X/13/IP67/69K Enclosure, Panel Mounting, Bezel/Housing: Silver Bezel, -25 to 70 deg C, Plastic, Black

• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1515127694199.pdf
• Brochure https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/10964/ID-BRO-v1-CA08100008E.pdf
• Installation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/EATON_M22_D_S_Installation_Instructions.pdf
• Installation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1515128469586.pdf
• Installation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/10964/IL04716001E.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1516382801587.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://www.ideadigitalcontent.com/files/10964/ID-SPE-v1-TD04716001E.pdf
• Specification Sheet-1 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/EATON_M22_D_S_Specification_Sheet_1.pdf
• Technical Bulletin https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1485504753440.pdf
• Technical Bulletin http://www.eaton.com/ecm/idcplg?IdcService=GET_FILE&allowInterrupt=1&RevisionSelectionMethod=LatestReleased&noSaveAs=0&Rendition=Primary&dDocName=TD04716001E
• Technical Drawing http://pe.eaton.com/print/M22-D-S

• Field convertible from maintained to momentary
• Customizable laser engraving on all buttons
• LED offering only for improved brightness quality and up to 100,000 hours of operation
• More than five million mechanical operations on momentary and 1 million on maintained pushbuttons
• Modular construction makes assembly fast and simplifies stocking of components and complete devices
• Capable of communicating via ASi protocol with ASi
• 5000000 mechanical operations
