The popular TWR1 luminaire is now available with long lasting, energy efficient LED technology. Featuring a classic day form, the TWR1 LED offers a traditional appearance and is powered by advanced LEDs. The TWR1 LED luminaire is powerful yet energy efficient, capable of replacing up to a 320 W metal halide luminaire while saving up to 80% in energy costs. Offering an expected service life of more than 20 years, the TWR1 LED eliminates frequent lamp and ballast replacements associated with traditional technologies.

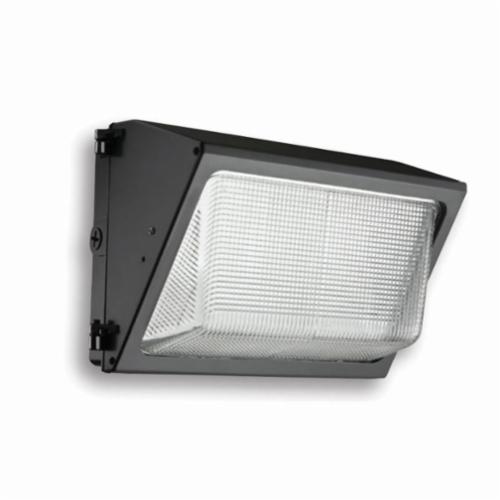

Lithonia Lighting® Outdoor Wallpack, Series: TWR1, 120 to 277 VAC, 0.56/0.28 A, Static LED Lamp, 59 W Lamp, 3 Lamps, 100000 hr Average Life, 5000 K Color Temperature, 78 CRI, Prismatic Glass Lens, 4900 Lumens, Wall Mounting, Aluminum Housing Material, Bronze/Gloss Housing Finish, 9 in H x 12-15/16 in W x 7-1/2 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8a60af911e64f1b9f82bda447b08ea9163d89f62700410eefccac7773e3738bc.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_8a60af911e64f1b9f82bda447b08ea9163d89f62700410eefccac7773e3738bc.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5f935439b3a1f6dc831ed9a47306380a6e0c852b96bfb2d191e3263e149499bb.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5f935439b3a1f6dc831ed9a47306380a6e0c852b96bfb2d191e3263e149499bb.pdf

• Rugged die cast aluminum housing with bronze polyester powder paint for lasting durability
• Door is hinged on the side so door swings out of the way during installation and service
• Castings are sealed with a 1-piece gasket to inhibit the entrance of external contaminants
• Multi-volt driver operates on any line voltage from 120 to 277V (50/60Hz)
• TWR1 LED-1 has 6 kV surge protection
• Rated for outdoor installations -40 deg C minimum ambient temperature range
• High performance LEDs maintain up to 87% of light output at 100000 hr of service life (L87/100000 hr)
• Prismatic glass lens designed for superior lighting distribution, uniformity and fixture spacing
• Designed for wall mounting above four feet from ground
• Housing is configured for mounting directly over a standard 4 in outlet box or for surface wiring via any of three convenient 1/2 in threaded conduit entry hubs
• 0.56 A at 120 VAC, 0.32 A at 208 VAC, 0.28 A at 240 VAC, 0.24 A at 277 VAC
• All ballasts are 100% factory tested, HPS high reactance, high power factor for 150 W and below
• Constant wattage autotransformer 250 W and above, MH 150 W and below are standard with pulse start igniter technology
• Super CWA pulse start ballasts, 88% efficient and EISA legislation compliant, are required for 151 to 400W (must order SCWA option)
• Compact fluorescent uses an electronic high frequency ballast
• Porcelain, medium base socket for TWR1 with copper alloy nickel plated screw shell and center contact
• Fluorescent is 4-pin positive latching thermoplastic
• The traditional shape helps maintain building aesthetics when replacing only a portion of your building wallpacks
