Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.

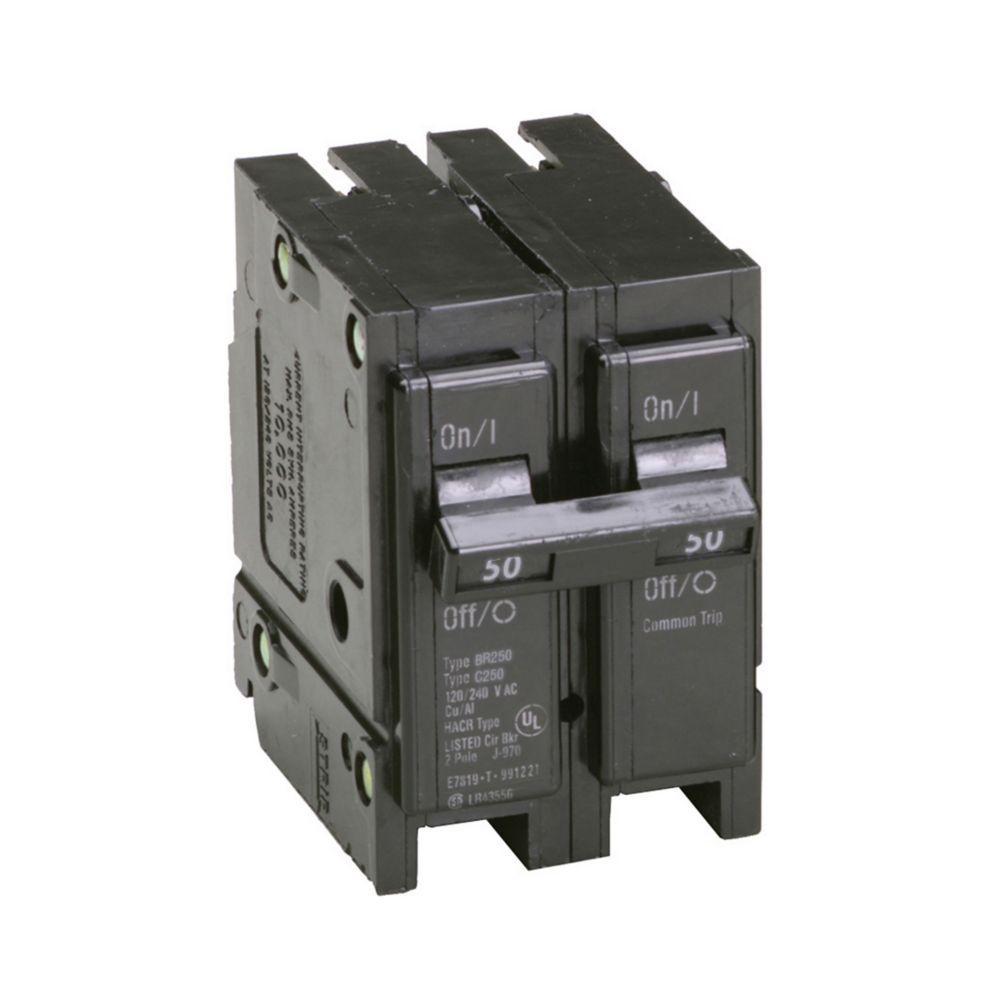

EATON Circuit Breaker, Type BR, 120/240 VAC, 50 A, 10 kA Interrupt, 2 Pole, 1 ph, 14 to 4 AWG Wire, NEMA 1/4X/3R, Plug-On Mount, 60 to 75 deg C, 3 in L x 2 in W x 3 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_97979633dcaf4fc709f75ff7065ec843bc98a0d71d8e84549a700c5f2f44069d.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_97979633dcaf4fc709f75ff7065ec843bc98a0d71d8e84549a700c5f2f44069d.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_10a68ba1befca494bf0946aa2678b8cc4cf79440690368fcb88a72ac8ab95d18.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_10a68ba1befca494bf0946aa2678b8cc4cf79440690368fcb88a72ac8ab95d18.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_448f20ed670db7b9cc1daad9be8369674e170ec1952c8dbdd1d22b1af7500ab9.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_448f20ed670db7b9cc1daad9be8369674e170ec1952c8dbdd1d22b1af7500ab9.pdf

• Common trip requires two 1 in spaces
• All BR circuit breakers have rejection tab feature
• Units feature a quick make, quick break switch mechanism combined with inverse time element tripping operation and trip free handle design
• For 2-pole circuit breakers carry listing for HACR application
