Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.

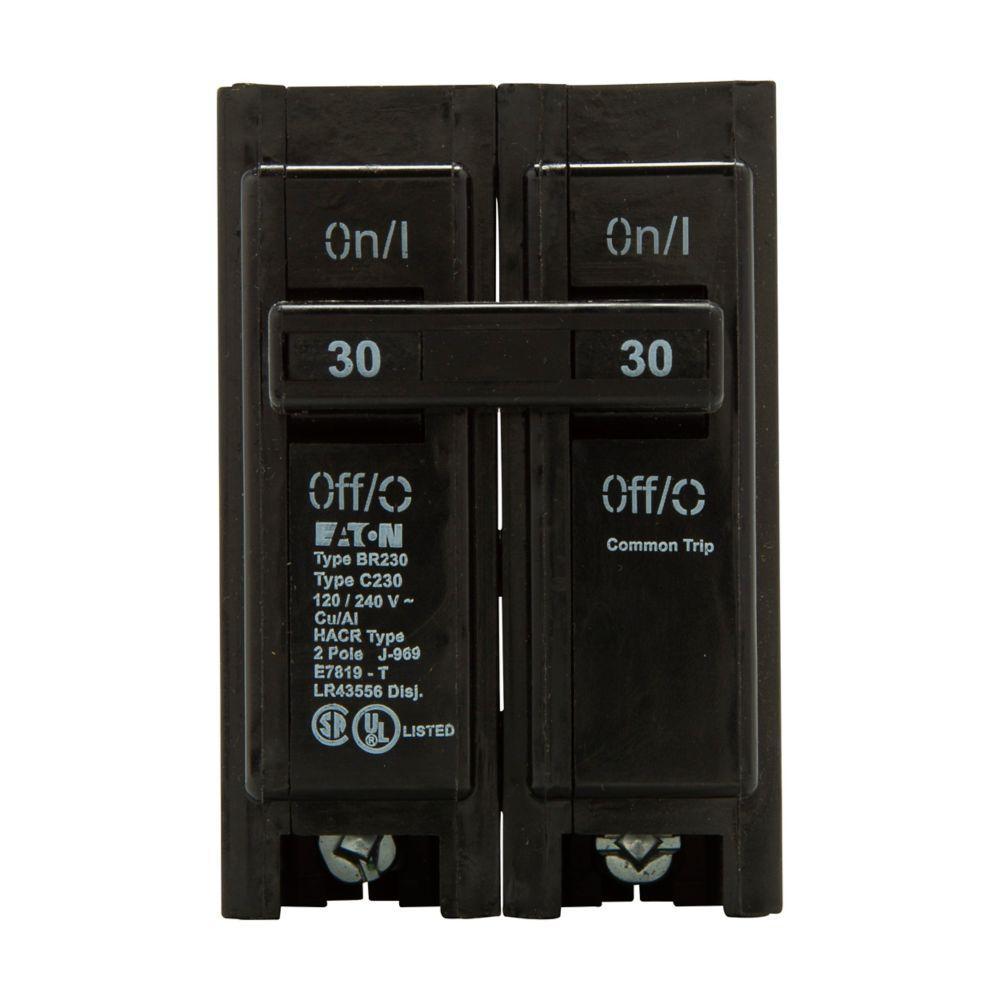

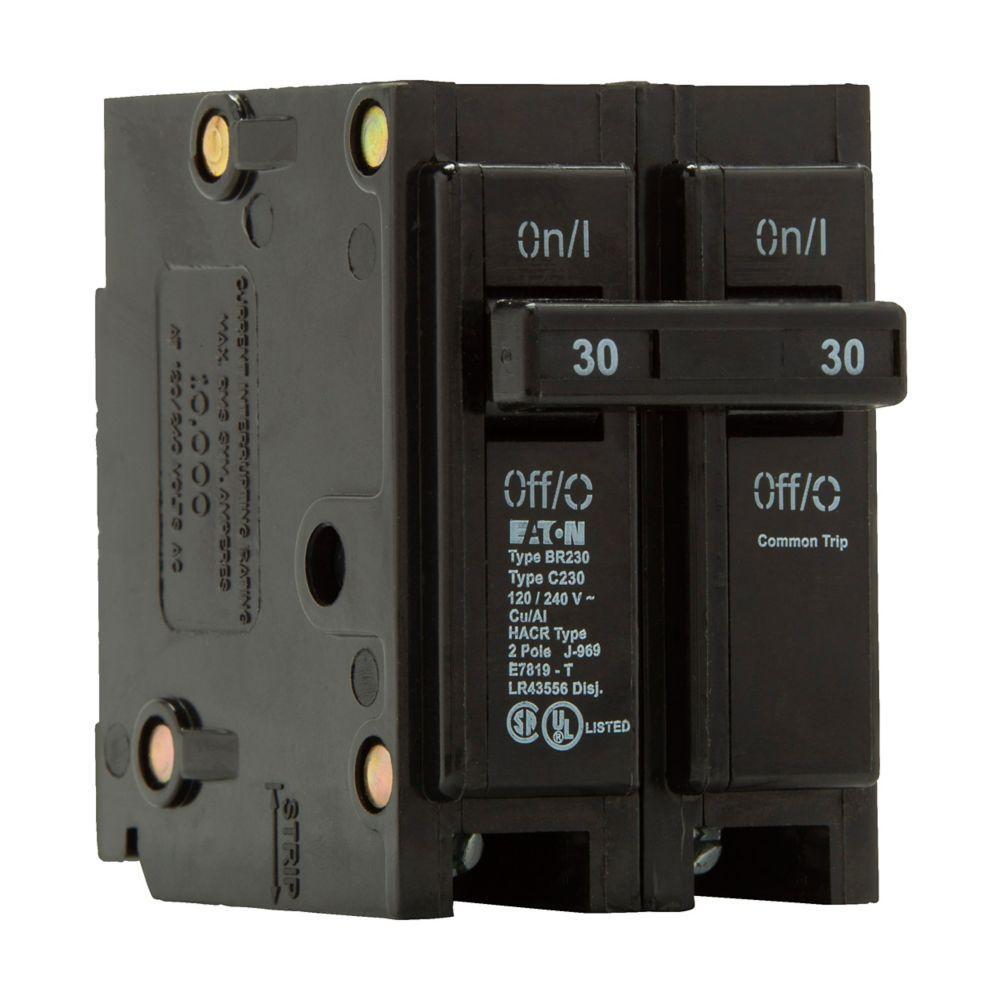

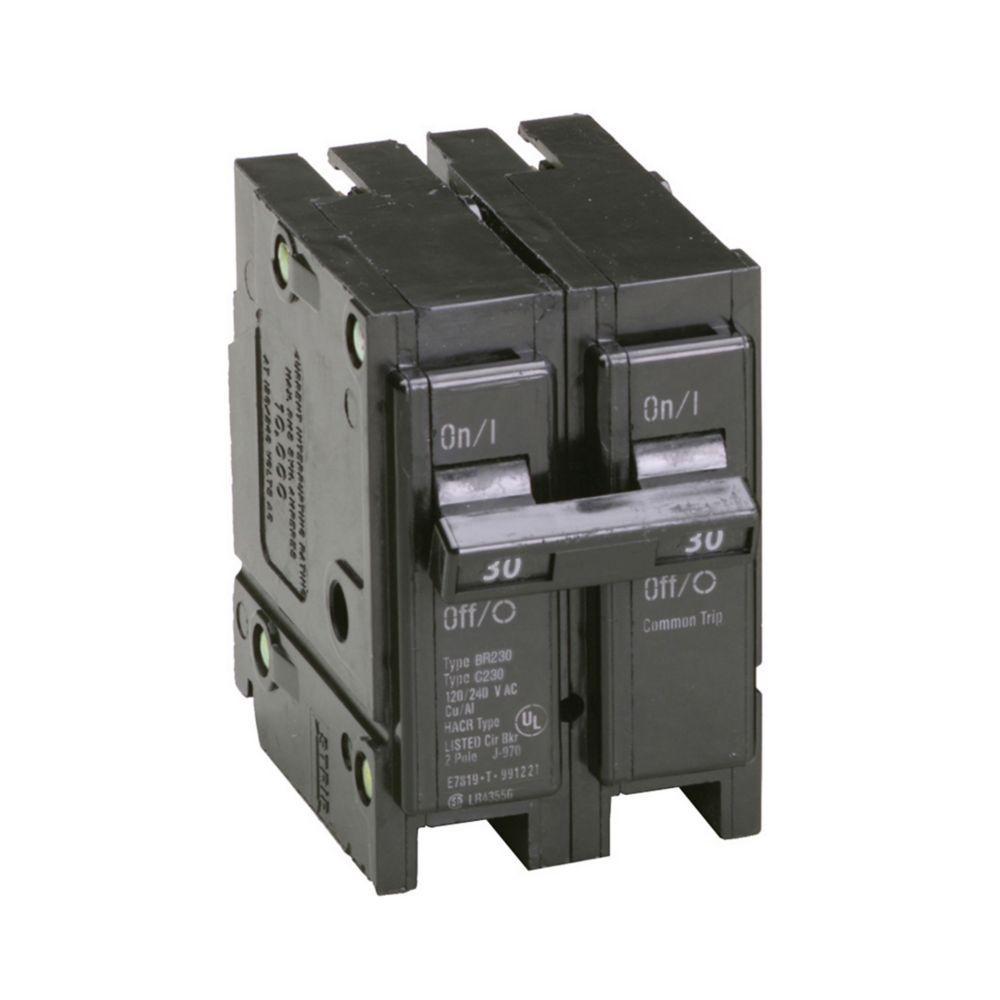

EATON Circuit Breaker, Type BR, 120/240 VAC, 30 A, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, 1 ph, 14 to 4 AWG Wire, NEMA 1/4X/3R, Plug-On Mount, 600 to 750 deg C, 3 in L x 2 in W x 3 in H

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4699c4093f200f15c8feec0c1d17577c692ad449e7fa8bead4e77755afaf41b2.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4699c4093f200f15c8feec0c1d17577c692ad449e7fa8bead4e77755afaf41b2.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_10a68ba1befca494bf0946aa2678b8cc4cf79440690368fcb88a72ac8ab95d18.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_10a68ba1befca494bf0946aa2678b8cc4cf79440690368fcb88a72ac8ab95d18.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_522bd12047fd1eba809220c00522d2c5b682b8a4dc82a5b58e5bfe99c731ddfc.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_522bd12047fd1eba809220c00522d2c5b682b8a4dc82a5b58e5bfe99c731ddfc.pdf

• Common trip requires two 1 in spaces
• All BR circuit breakers have rejection tab feature
• Units feature a quick make, quick break switch mechanism combined with inverse time element tripping operation and trip free handle design
• For 2-pole circuit breakers carry listing for HACR application
