The E150 product line consists of thermal magnetic circuit breakers, magnetic circuit breakers and molded case switches rated up to 150 A and 600 VAC. Catalog numbers include the complete breaker or switch. The WL catalog number suffix indicates that the devices come with Cu/Al line and load lugs. All TEB, TED, THED breakers suitable for reverse feed. 60/75 deg C rating through 100 A, 75 C rating above 100 A.

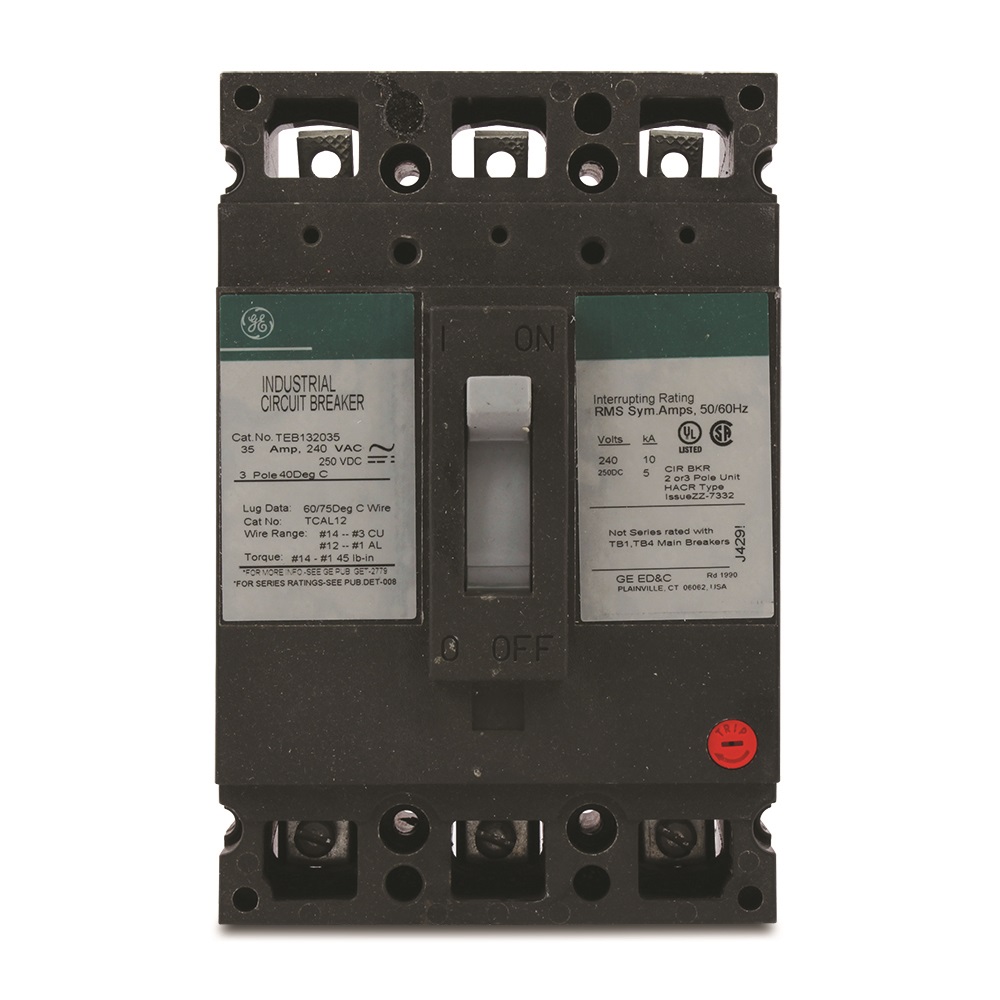

GE Molded Case Circuit Breaker, Type TEB Core E Low Tier, 240 VAC, 35 A, 50/60 Hz Frequency, 10 kA Interrupt, E150 Frame, Thermal Magnetic Trip, 3 Pole, 1/3 ph, Toggle Handle Actuator, Load Lug Connection, Bolted-On Mounting, 10 to 50 deg C, 6-5/16 in H x 4-1/8 in W x 3-3/8 in D Dimensions, Plastic

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TEYH3020B_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TEYH3020B_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TEB132010_Technical_Drawing.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TEB132010_Technical_Drawing.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_96a6f740d06265436838bd4fe7026351c88702779d5afeee14be0ecb95be7975.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_96a6f740d06265436838bd4fe7026351c88702779d5afeee14be0ecb95be7975.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TEB111010_Technical_Bulletin.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TEB111010_Technical_Bulletin.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TEB111010_Warranty.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_TEB111010_Warranty.pdf

• Molded case is molded from high mechanical and high dielectric strength engineered plastic
• Trip indication is shown by handle position midway between ON and OFF, to reset the trip mechanism, move the handle to extreme OFF, then to ON position
• Quick make, quick break, trip free mechanism minimizes arcing during breaker operation, contacts cannot be ''teased'' into position
• Trip free mechanism is independent of manual handle control, the breaker trips under short circuit or overload, even though the operating handle is held in ON position
• VERIFIER™ "Twist-to-Trip" and ''Push-to-Trip'' mechanically simulates over current tripping through actuation of linkages not operated by the ON/OFF handle
• Common trip bar assures instant disconnect of all conductors when an overload or short circuit occurs on any one conductor in the circuit or an accessory trip device operates
• Silver alloy contacts combine the conductive properties of silver with other elements for clean, positive electrical contacting, pitting and burning are minimized for longer contact life
• Arc chutes of heat absorbing, insulating material and metal grid plates quickly ''extinguish'' arcs
• UL Listed lugs for copper or aluminum cable, at full frame rating, easy access and simple, straight-in wiring
• Suitable for reverse feed applications
• 10 kA at 120/240VAC, 10 kA at 120VAC, 10 kA at 240VAC interrupt rating
