Upon failure of the normal utility power, a solid state transfer switch automatically activates the emergency lamp. Upon resumption of the normal utility power, the battery is disconnected from the load and recharged through a solid state charging unit. A low voltage battery disconnect feature protects the battery from severe damage during prolonged power failures. Spectron® self-testing/self-diagnostic circuitry provides automatic system testing on a monthly and semi-annual basis. Manual testing is available at any time using the push-to-test button: push once for a 60 sec system test, push twice for a 90 min system test.

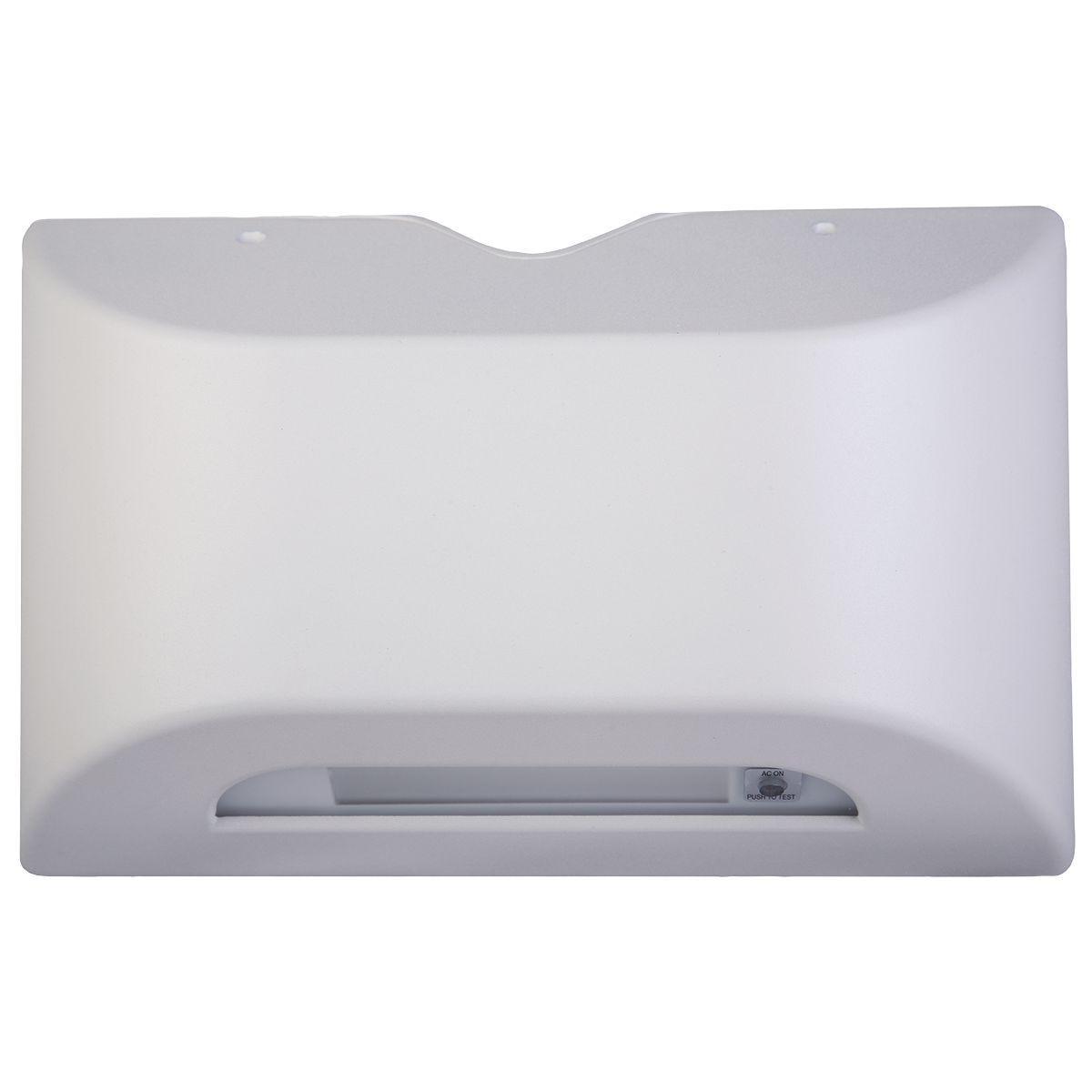

Dual-Lite® Emergency Light Sconce, Series: PG Series, 120 VAC, 50 W Fixture, 60 Hz, LED Lamp, 15.2 W Lamp, 4 Heads, Wall Mount

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dual-Lite_PGP_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dual-Lite_PGP_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dual-Lite_PGP_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dual-Lite_PGP_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dual-Lite_PGNZ_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dual-Lite_PGNZ_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dual-Lite_PGP_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Dual-Lite_PGP_Specification_Sheet.pdf

• High output LEDs configured in redundant pairs, heater option
• Die cast aluminum construction
• Maintenance free battery
• Capacities upto 100 W
• Matching remote fixture
• Fully automatic, solid-state charger
• Low voltage battery disconnect
• Transformer isolation protection
• Maximum power consumption is 20 W
• 12 VAC output voltage
