The OSSMD-FT is a Leviton exclusive model which also provides automatic switching of two separate loads from a single unit. The unit features a single manual override switch for the first relay. The second, "fan relay", is an auto-on with relay 1 and has an extended time delay of 10 minutes after relay 1. This provides both energy efficiency and optimum ventilation control from a single device.

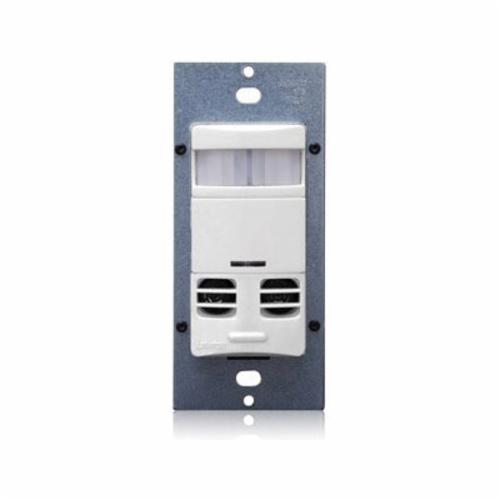

Leviton® Decora® Wall Mount Occupancy Sensor, 1-Pole Dual Relay, 120/230/277 VAC, Multi-Technology/PIR/Ultrasonic Sensor, 2400 sq-ft Coverage, 180 deg Viewing, 30 s to 30 min Time Delay, Fluorescent/Incandescent Lamp, 50/60 Hz Response, Lead Connection, Automatic/Manual Control Output, 0 to 50 deg C, White, 46 in H x 1.75 in W x 1.83 in D Dimensions

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Decora_OSSMD_FTI_Installation_Instructions.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Decora_OSSMD_FTI_Installation_Instructions.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520566153500.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1520566153500.pdf

• Neutral wire required
• Grounding wire required
• External power pack not required
• Commercial grade and internal photocell
• Ambient light override
• 1200 VA at 120 VAC, 2700 VA at 277 VAC primary relay fluorescent, 800 W at 120 VAC primary relay incandescent and 800 VA at 120 VAC, 1200 VA at 277 VAC secondary relay fluorescent, 800 W at 120 VAC secondary relay incandescent, 1/4 hp motor load ratings
• -10 to 85 deg C storage temperature range
• 20 to 90% non-condensing relative humidity
• For indoor use only
• The OSSMD-FT is intended to control a light circuit and a fan
• Provides automatic lighting control for two separate banks of fluorescent, incandescent or Low-Voltage lighting from a single unit
• Low profile design eliminates obtrusive "scanning-device" look
• 180 deg field-of-view provides approximately 2400 square feet of coverage
• Vandal-resistant PIR lens
• False detection circuitry
• Ability to disable PIR or U/S for added flexibility
• The second relay is a manual-On only with a maximum 30 min time-out for maximum energy-saving
• Fits in a standard wall
