BURNDY® HYLUG™ terminals, redesigned for terminating copper conductors in a wide variety of electrical connections, including heavy duty industrial, utility, commercial and telecommunications applications. The HYLUG™ terminals require simple cable preparation for an easily installed permanent and inspectable cable termination. The terminals are listed by UL (UL STD. 486A) and CSA certified to 600 V, when applied with the proper tool and die combination. The terminals may be used in applications to 35 KV.

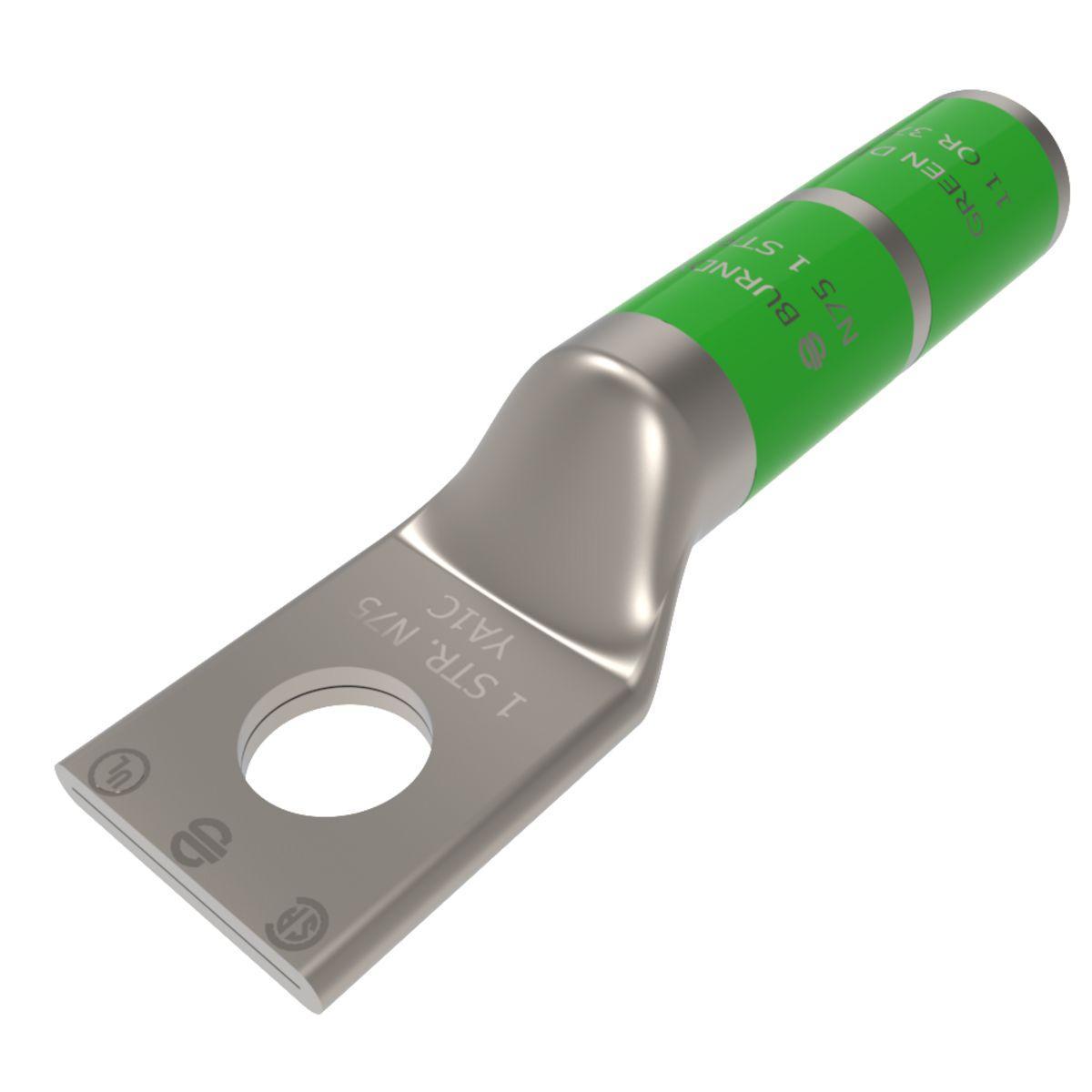

BURNDY® HYLUG™ Compression Lug, 1-Hole Uninsulated, Series: YA Series, Stranded Copper Conductor, 1 AWG Conductor, Die Code: 11, 600 VAC to 35 kV, 1/2 in Stud, Straight Tongue, 0.83 in W x 0.12 in THK Tongue, 3.06 in Overall Length, Chamfered/Long Barrel, 0.46 in OD x 1.38 in L Barrel, 1-7/16 in L Wire Strip, 90 deg C, Tin Plated Copper, Green

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA1CTC38_Full_Engineering_Drawing.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA1CTC38_Full_Engineering_Drawing.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA6CTC10_Installation_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA6CTC10_Installation_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA25TC38_Line_Drawing.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA25TC38_Line_Drawing.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA1CN_User_Manual.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA1CN_User_Manual.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA1CN_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BURNDY_YA1CN_Specification_Sheet.pdf
• VIDEO LINK https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6319929968112

• Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
• Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
• Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
• Connectors are clearly marked with stamping and barrel color
