Pass & Seymour® PS5366SSAN

Share Print

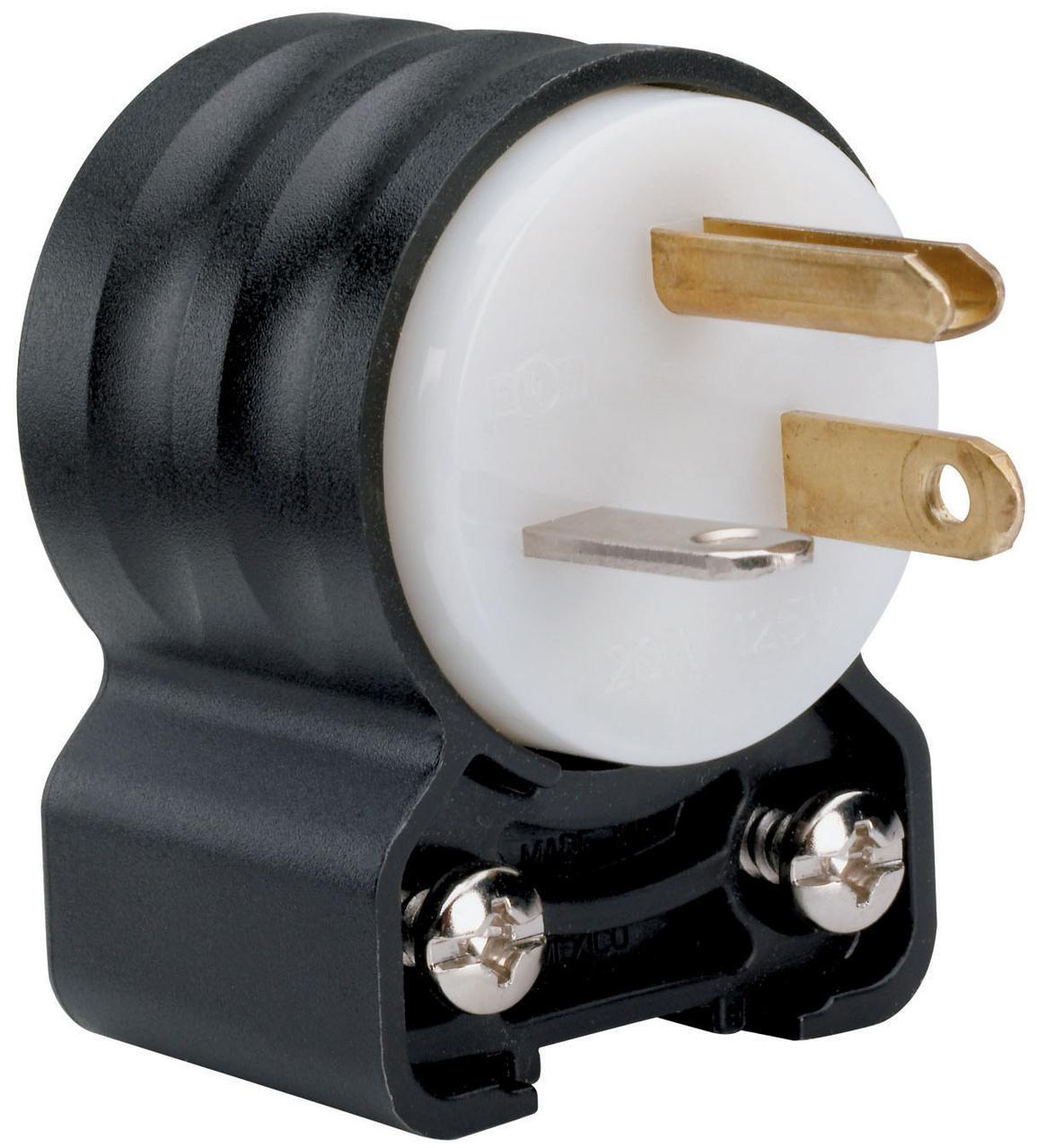

Pass & Seymour® PS5366-SSAN Angled Extra Hard Use Straight Blade Plug, 125 VAC, 20 A, 2 Poles, 3 Wires, Black/White

  • MPN: PS5366SSAN

  • IESPN: 233833

  • UPC: 785007236972

  • Min Order Qty: 1

  • Quantity Interval: 1

  • Sold as: EACH

    • Availability: loading

    • Branch Availability
Pass & Seymour® PS5366SSAN

Pass & Seymour® Straight Blade Plug, Angled Extra Hard Use, 125 VAC, 20 A, 1 hp, 60 Hz, 2 Pole, 3 Wires, NEMA 5-20P, Industrial/Specification Grade, 0.32 to 0.655 in Cord Dia, -40 to 75 deg C, Threaded Terminal, Nylon, Black/White, 2.13 in H x 1.53 in W x 1.35 in D

Type      Angled Extra Hard Use
Voltage Rating      125 VAC
Amperage Rating      20 A
Horsepower      1 hp
Frequency Rating      60 Hz
Number of Poles      2
Number of Wires      3
NEMA Rating      NEMA 5-20P
Grade      Industrial/Specification
Cord Diameter      0.32 to 0.655 in
Temperature Rating      -40 to 75 deg C
Terminal Type      Threaded
Material      Nylon
Color      Black/White
Dimensions      2.13 in H x 1.53 in W x 1.35 in D
  • Angle plugs and adapters both allow for 4-position face rotation
  • Tri-drive assembly and cord-grip screws are standard on all angle adapters
  • Angle adapter (sold separately as catalog number EHU15AN) retrofits on all Pass and Seymour EHU-style Straight Blade plugs and connectors
