The TEY is a 1 in W per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 VAC systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. All TEY circuit breakers feature quick make/quick break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. TEYL breakers are available in 1, 2 and 3-pole versions, 2 and 3-pole versions can be ordered with auxiliary contact, shunt trip, undervoltage release or bell alarm accessories.

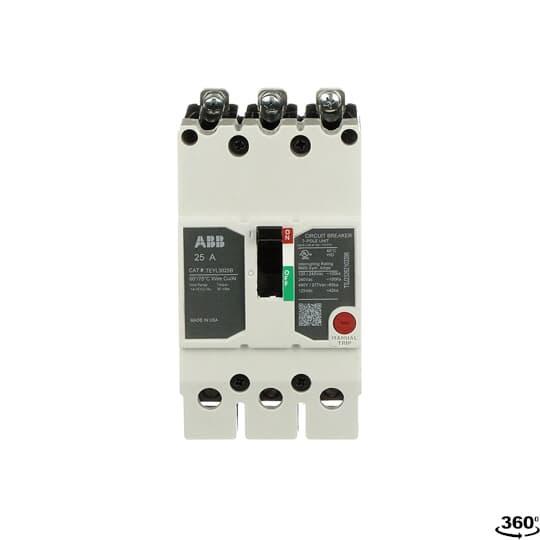

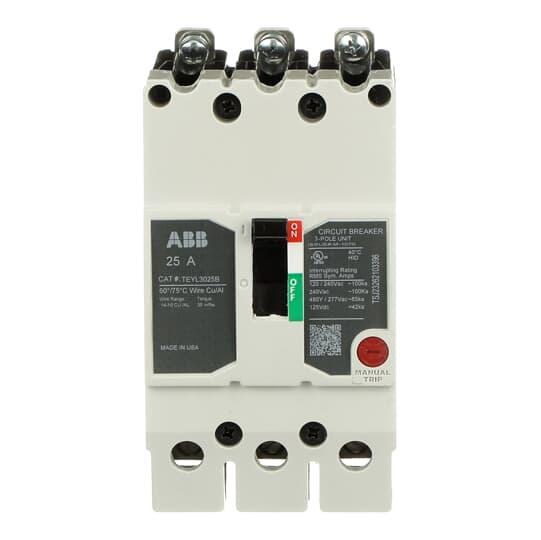

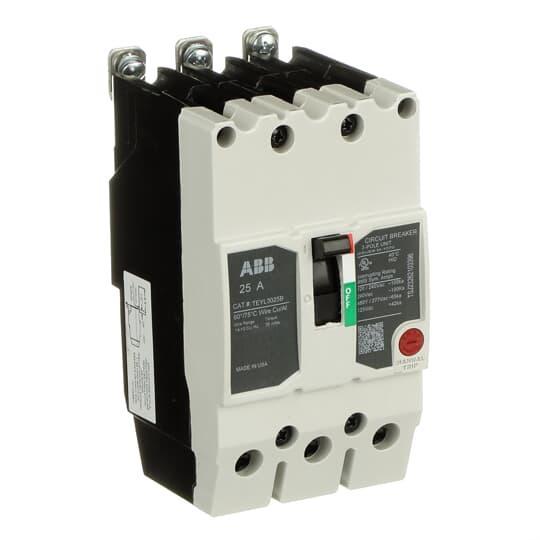

GE Lighting Panel Circuit Breaker, Compact, Series: TEY, 120/240/277/480 VAC, 250 VDC, 25 A, 50/60 Hz, 100/65/42/35 kA Interrupt, TEYL Frame, LI/Thermal Magnetic/Non-Interchangeable Trip, 3 Poles, 3 Phase, Handle Actuator, Load Lug, 10 to 4 AWG Wire, Bolt-On Mount, 40 deg C, 5-1/4 in H x 3 in W x 3-1/16 in D, Plastic

• Installation Instructions https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/GE_TEY145_Installation_Sheet.pdf
• Selection Guide https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/GE_TEY145_Selection_Guide.pdf
• Specification Sheet https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/GE_TEYL3025B_Datasheet.pdf
• Specification Sheet-1 https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/GE_TEYF3110B_Datasheet_1.pdf
• Technical Drawing https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/GE_TEYD3015B_Technical_Drawing.pdf
• Warranty https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/GE_TEY145_Warranty.pdf

• Ambient compensating
• Multiple short circuit tiers
• Cost effective protection
• Mounting base for unit mount installations
• 100 kA at 120/240 VAC, 100 kA at 240 VAC, 65 kA at 480Y/277 VAC, 42 kA at 125 VDC, 35 kA at 250 VDC interrupt rating
