The CR104P full size, heavy duty oiltight and watertight line is complete with a variety of accessories and enclosures. These push buttons are especially adapted to heavy duty service in almost any application including those where water and oil coolant is present. All units are suitable for use in NEMA 1, 3, 3R, 4, 4X, 12 and 13 applications when mounted in enclosures rated for those applications. Standard contact blocks are supplied with IP10 back of hand protection to comply with UL 508 section 39A requirements for door mounted devices.

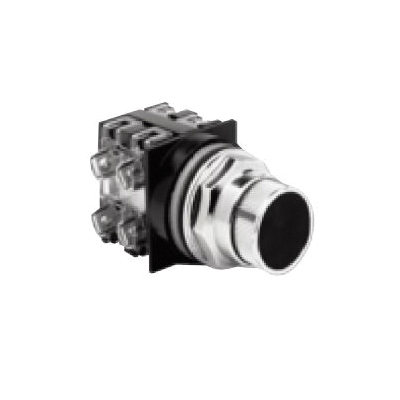

GE Industrial Solution Non-Illuminated Pushbutton Operator, Heavy Duty Oiltight/Watertight Standard, Series: CR104P Series, 30.5 mm Size, Push/Turn Contact Mode, 3 Positions, Round Flush Button Operator, 600 VAC/VDC, NEMA 1/3/3R/3S/4/4X/12/13/IP2X Enclosure, Exposed Screw Terminal, Threaded Mounting, Bezel/Housing: Chromium/Zinc Plated Zinc Ingot, -13 to 158 deg F

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_CR104PEG44_Catalog.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_CR104PEG44_Catalog.pdf
• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_CR104PBL00A1S2_Technical_Bulletin.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_CR104PBL00A1S2_Technical_Bulletin.pdf

• Greater torque due to right sided ring design, greater torque can be applied during assembly and installation to provide oil tightness
• Ease of assembly one screw contact block mounting
• Multiple industrial environments all units are suitable for use in NEMA 1, 3, 3R, 4, 4X, 12 and 13 applications keeps installation foolproof
• For some NEMA 4X applications, protective caps will improve corrosion resistance
