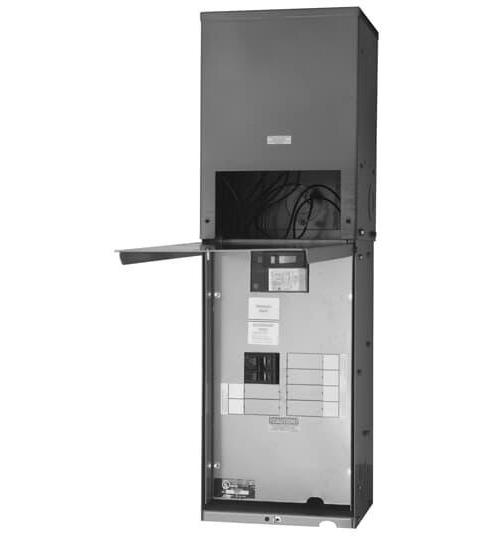

This easily installed and serviceable unit incorporates a Type QMS transformer (1-ph) or a Type QL transformer (3-ph), a primary main circuit breaker, a secondary main circuit breaker and a load center design breaker panel. Since these components don't have to be installed and interconnected separately, the contractor or user can reduce installation time and costs. Because of the single unit concept, only one, handy Servicenter™ needs to be mounted.

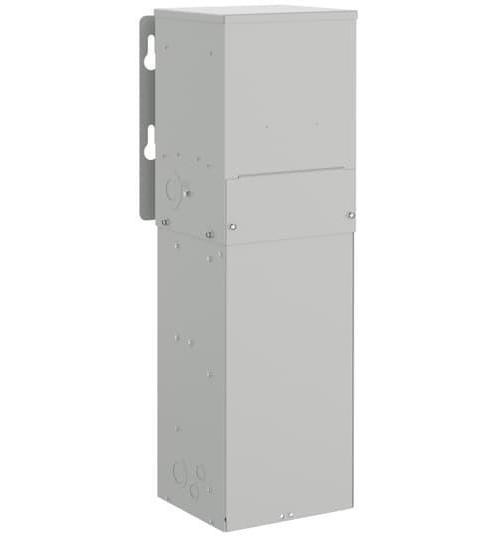

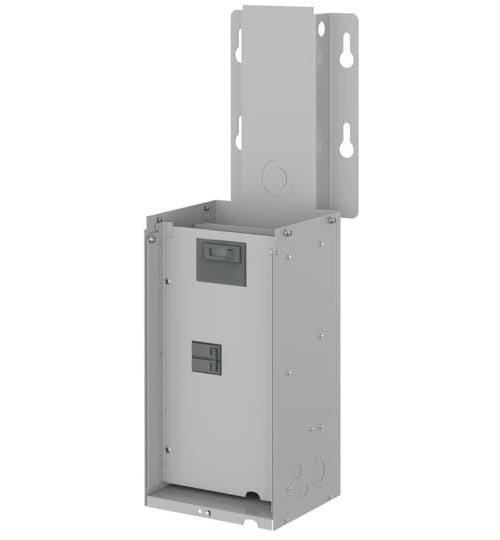

GE Servicenter™ General Purpose Transformer, Dry Standard Vented, Series: 9T Series, 480 VAC Primary, 120/240 VAC Secondary, 7.5 kVA Power, 60 Hz Frequency, 1 ph, IS-12 Insulation, NEMA 3R Enclosure, 40 deg C

• https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_9T21S1070_Specification_Sheet.pdf https://www.iesbuy.com//ASSETS/DOCUMENTS/ITEMS/EN/https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GE_9T21S1070_Specification_Sheet.pdf

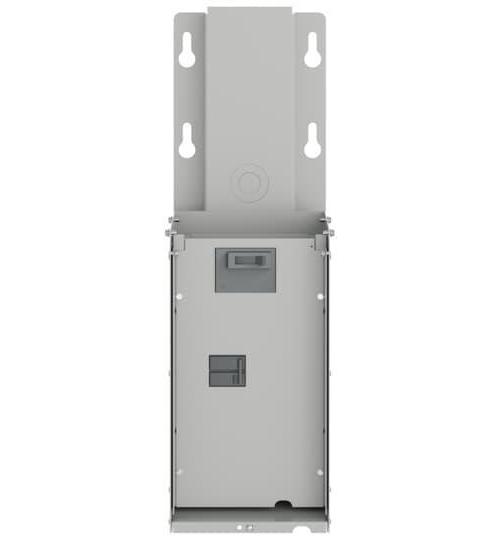

• Keyhole mounting flange facilitates easy mounting

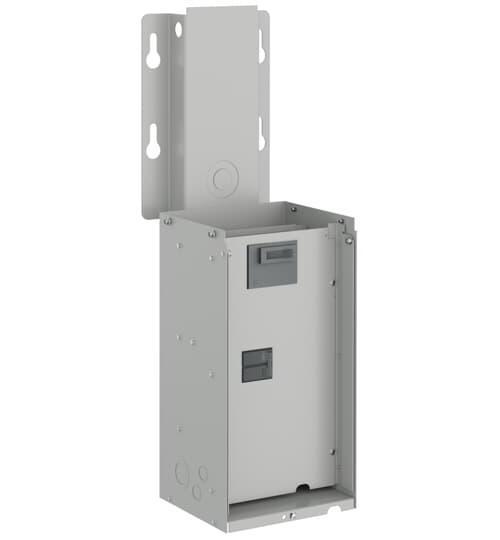

• Front accessible, hinged or removable panel door
• Heat barrier under core and coil provides added electrical and thermal isolation for wiring compartment
• High efficiency core construction
• Factory installed and wired GE main and secondary main circuit breakers
• Transformer, distribution panel and breakers are all designed, built and assembled by GE
