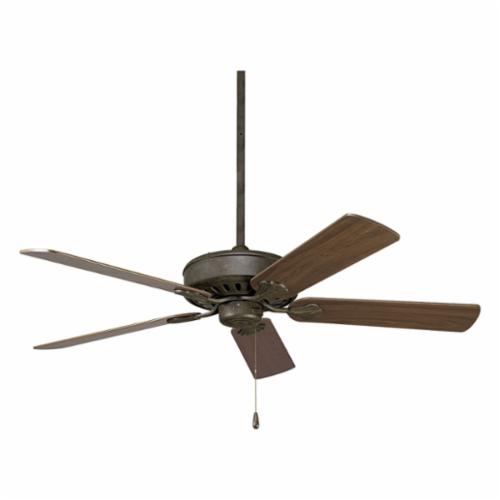

Progress Lighting® P2503-46

Progress Lighting® P2503-46 Pre-Wired Transitional Ceiling Fan, 14 deg Blade Pitch, Steel Housing, Plywood Blade, 5841 cfm Flow Rate

  • MPN: P2503-46

  • IESPN: 115025

  • UPC: 785247120345

  • Min Order Qty: 1

  • Quantity Interval: 1

    • Availability: loading

    • Branch Availability
Progress Lighting® P2503-46

Progress Lighting® Ceiling Fan, Pre-Wired Transitional, Series: P2503, Light Kit: No, 14 deg Blade Pitch, 5841 cfm Flow Rate, 180 rpm Speed, 68 W Power, 120 VAC, 3 Speed, 5 Blades, 86 cfm/W Air Flow Efficiency, Pull Chain Control, Reversible Blade, Plywood Blade, Manual Reverse Control/Triple Capacitor Speed Control Motor, Standard Canopy, 3/4 in OD x 6 in L Down Rod, Steel Housing Material, 15-1/4 in Overall Height, Import

Type      Pre-Wired Transitional
Series      P2503
Light Kit      No
Blade Pitch      14 deg
Flow Rate      5841 cfm
Speed      180 rpm
Power Rating      68 W
Voltage Rating      120 VAC
Number of Speeds      3
Number of Blades      5
Air Flow Efficiency      86 cfm/W
Control Type      Pull Chain
Blade Type      Reversible
Blade Material      Plywood
Motor Type      Manual Reverse Control/Triple Capacitor Speed Control
Canopy Type      Standard
Down Rod Size      3/4 in OD x 6 in L
Housing Material      Steel
Overall Height      15-1/4 in
Domestic/Import      Import
  • Performance fan includes 5 reversible oak or dark teak blades
  • Weathered bronze finish
  • 188 mm Dia x 15 mm H motor size
  • Integral pull chain
  • Dual mount for downrod or close to ceiling mounting
  • Standard canopy is designed for sloped ceilings with 12:12 pitch
  • 4-1/2 in W x 10-1/2 in H hanging dimension
  • 80 in lead wire
  • Oversized, textured die cast hanger ball reduces noise and wobble vibrations
  • Triple-capacitor control that can also be reversed to provide year-round comfort
  • Screws pre-installed in blades for attachment to motor arms
  • Special guides align blades to motor arms
  • Standard canopy designed for sloped ceilings up to 45 deg
  • Canopy covers standard recessed 4 in octagonal outlet box
  • Sure connect blade attachment system and 3/4 x 6 in downrod are also included
